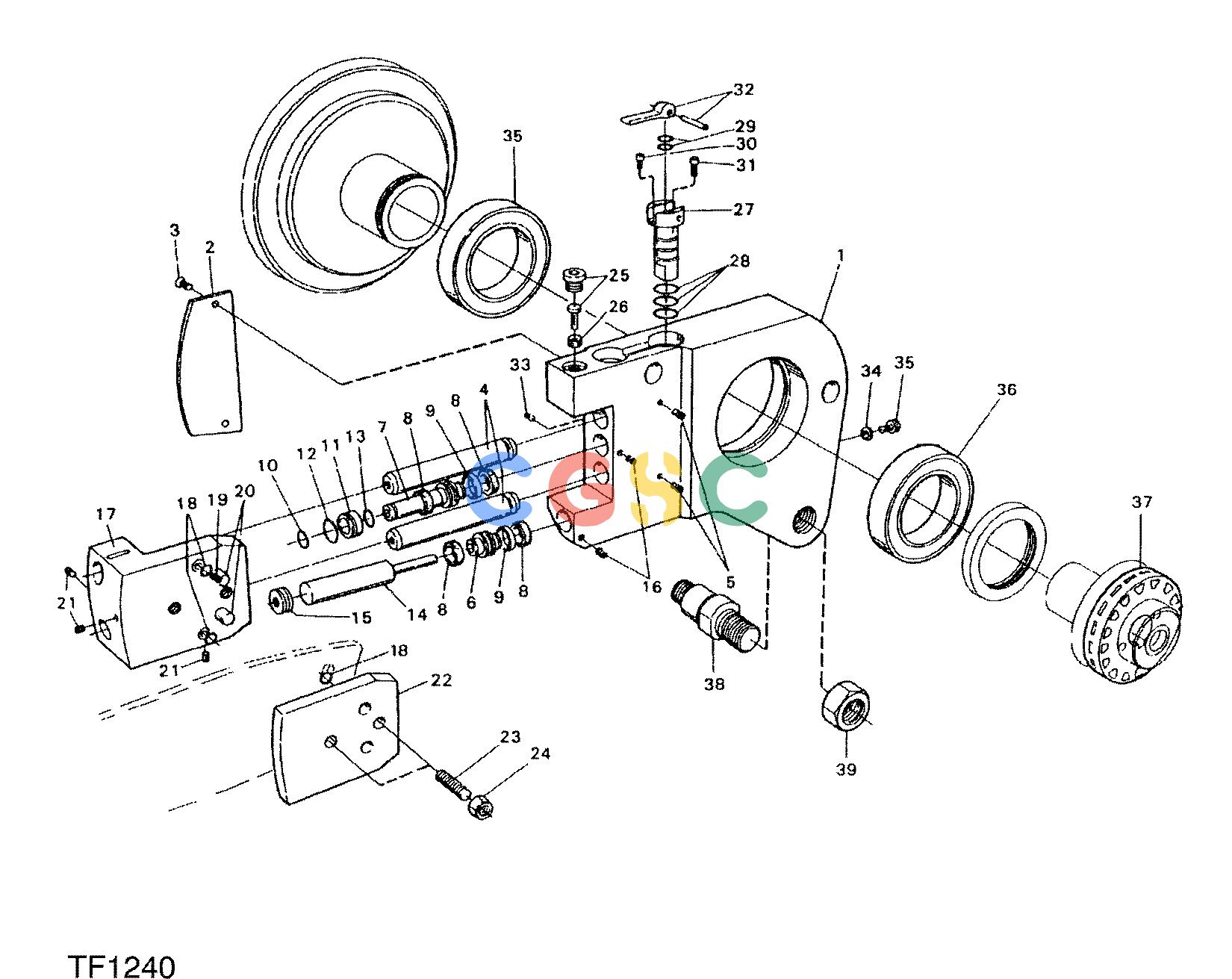

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE AUTOMATIC CHAIN TIGHTENER F042138 11 92 TF1240 [TF1240]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F055090
|
[1] |
Housing
|
|
| 2. |
F055091
|
[1] |
Cover
|
|
| 4. |
F052404
|
[2] |
Piston
|
|
| 6. |
F055092
|
[1] |
Piston
|
|
| 7. |
F054569
|
[1] |
Piston
|
|
| 8. |
F054572
|
[4] |
Seal
|
|
| 9. |
F054573
|
[2] |
SUPPORT RING
|
|
| 11. |
F055093
|
[1] |
Bushing
|
|
| 14. |
F054570
|
[1] |
GAS SPRING
|
|
| 15. |
F055094
|
[1] |
Plug
|
|
| 17. |
F055095
|
[1] |
Bracket
|
|
| 25. |
F055088
|
[1] |
PISTON ASSY
|
|
| 27. |
F055089
|
[1] |
Valve
|
|
| 31. |
F034036
|
[2] |
Screw
|
|
| 36. |
F005546
|
[2] |
Ball Bearing
|
|
| 37. |
-------
|
[1] |
SPROCKET
|
|
| 38. |
F055086
|
[1] |
Pin
|
|
| 39. |
F003574
|
[1] |
Nut
|
|
| |
F055087
|
[1] |
Kit
|
|
| |
F055085
|
[1] |
SERVICE KIT
|
|
| |
F054575
|
[1] |
Seal Kit
|
|
| |
F055081
|
[1] |
VALVE ASSY
|
|
| |
F055082
|
[1] |
Tool
|
|
