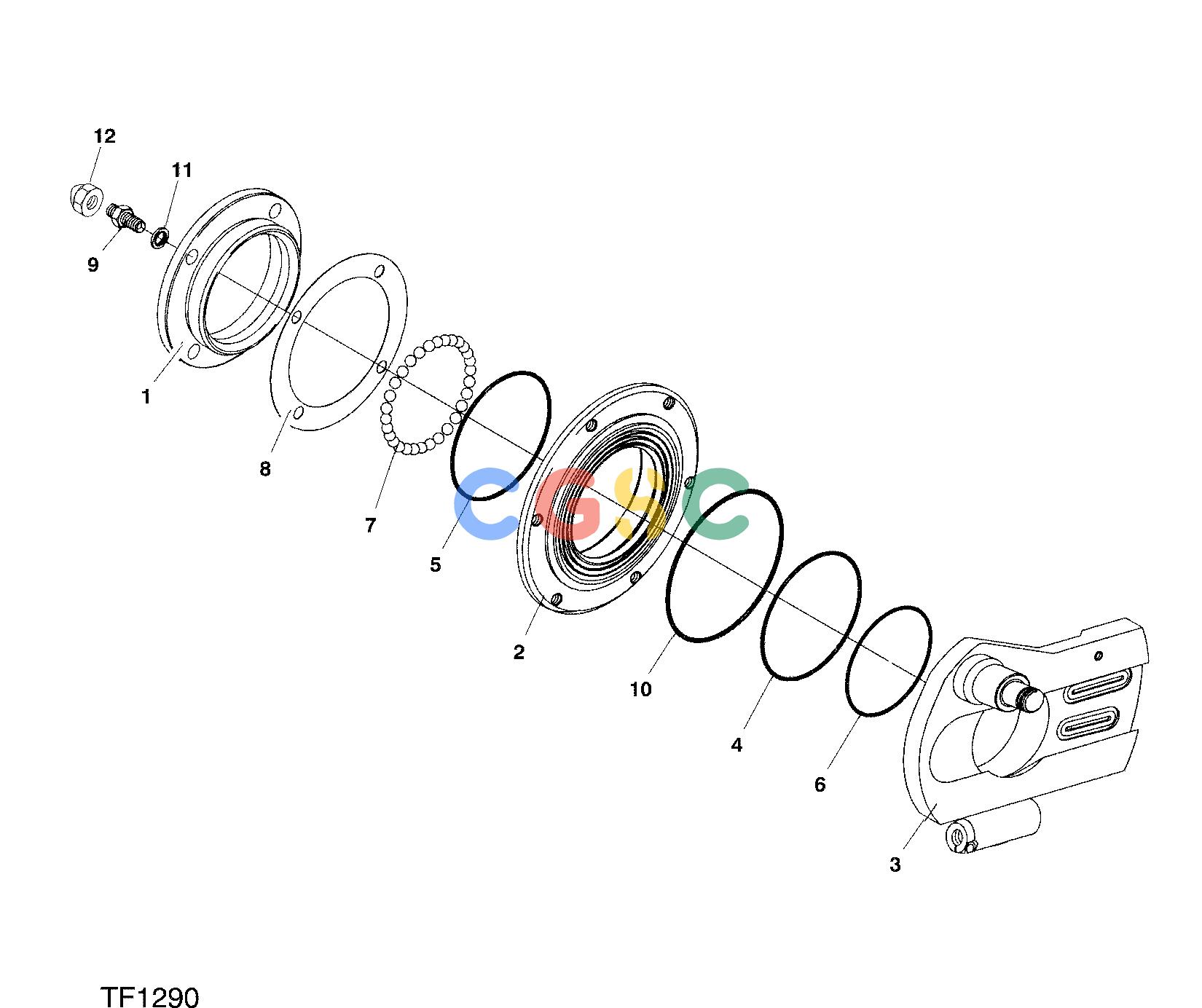

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE BEARING ASSY F042138 11 94 TF1290 [TF1290]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F056064
|
[1] |
BEARING HOUSING ASSY
|
|
| |
F056905
|
[1] |
UREA ASSY
|
|
| 1. |
F047699
|
[1] |
BEARING RING
|
|
| 2. |
F047700
|
[1] |
BEARING RING
|
|
| 2. |
F057679
|
[1] |
BEARING RING
|
|
| 3. |
F056058
|
[1] |
FLANGE YOKE
|
|
| 3. |
F057680
|
[1] |
FLANGE YOKE
|
|
| 4. |
F047701
|
[1] |
O-Ring
|
|
| 5. |
F047701
|
[1] |
O-Ring
|
|
| 6. |
F056967
|
[1] |
O-Ring
|
|
| 7. |
F047704
|
[33] |
STEEL BALL
|
|
| 8. |
F047705
|
[1] |
Gasket
|
|
| 9. |
F015375
|
[2] |
NIPPLE
|
|
| 10. |
F056056
|
[1] |
O-Ring
|
|
| 11. |
F005164
|
[2] |
SEAL RING
|
|
| 12. |
F024870
|
[1] |
Plug
|
|
| |
F059826
|
[1] |
Seal Kit
|
|
