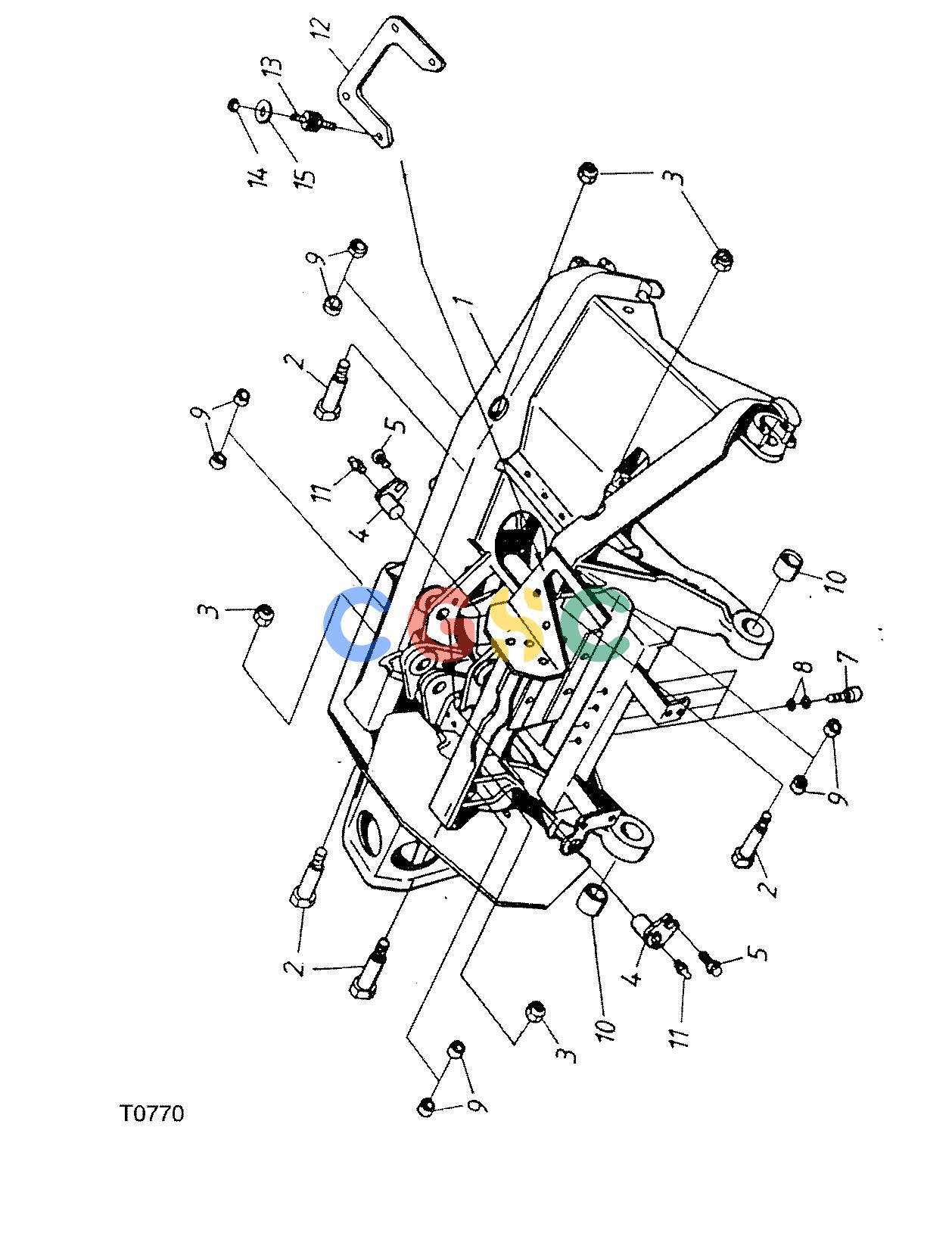

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HARVESTER HEAD 755B F042138 11 2 T0770 [T0770]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F032045
|
[1] |
Frame
|
|
| 1. |
F032046
|
[1] |
Frame
|
|
| 2. |
F024702
|
[4] |
Pin
|
|
| 3. |
F024735
|
[4] |
Lock Nut
|
|
| 4. |
F003238
|
[2] |
PIVOT PIN
|
|
| 5. |
F008445
|
[2] |
Screw
|
|
| 7. |
F002912
|
[4] |
Screw
|
|
| 8. |
F002805
|
[8] |
Lock Washer
|
|
| 9. |
F024703
|
[8] |
Spacer
|
|
| 10. |
F010668
|
[4] |
BEARING BUSHING
|
|
| 11. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 12. |
F032047
|
[1] |
Bracket
|
|
| 13. |
F032048
|
[4] |
RUBBER BUFFER
|
|
| 14. |
F003586
|
[4] |
Lock Nut
|
|
| 15. |
F031864
|
[4] |
Washer
|
|
