神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (11-024) - DEFROSTER ASSY (G.M. ENG. MOUNT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

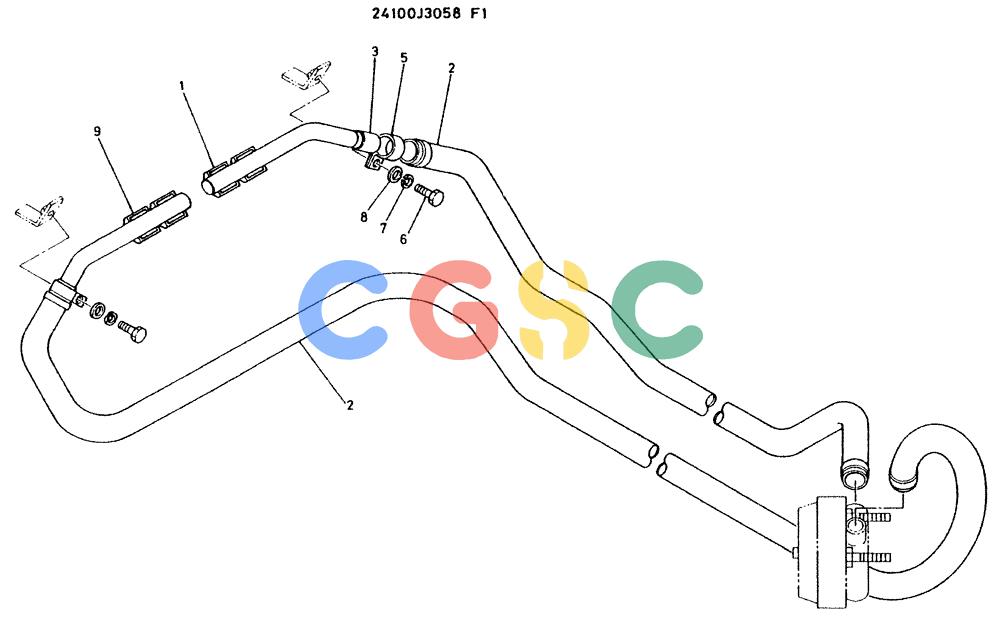

| . . | 24100J3058F1 | [1] | DEFROSTER ASSY INCL. REF. 1 TO 9 | |
| 1. | 24100J3058S1 | [1] | PIPE | |
| 2. | 24100J3058S2 | [2] | HOSE | HOSE |
| 3. | 24100J3058S3 | [2] | SOCKET | KOB |
| 5. | R16P0036D3 | [2] | CLIP | CLIP |
| 6. | ZS16C12025 | [2] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 7. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 8. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9. | 24100J3058S9 | [1] | PIPE | |
