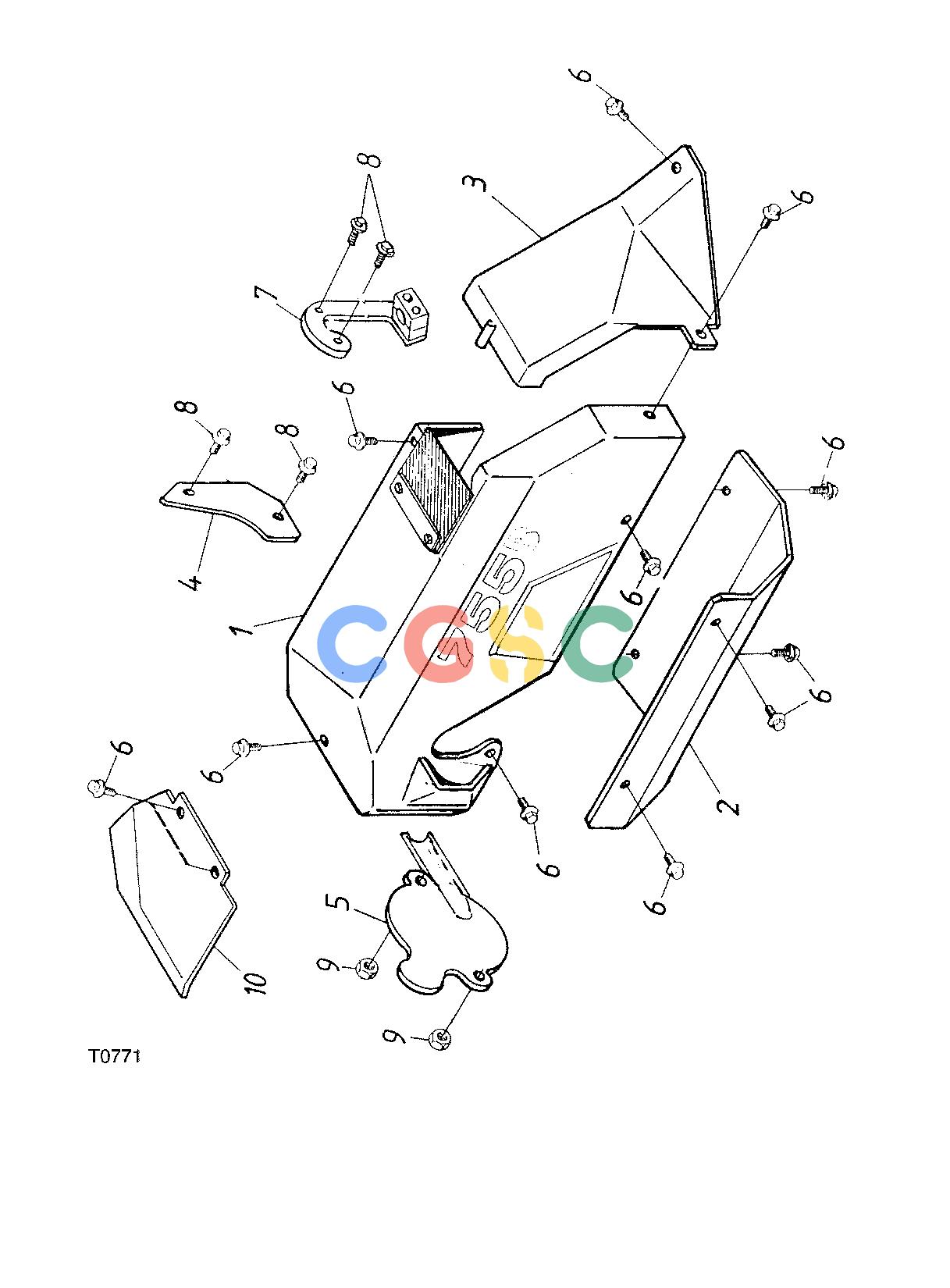

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE COVER F042138 11 4 T0771 [T0771]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F032051
|
[1] |
Case
|
|
| 1. |
F032052
|
[1] |
Case
|
|
| 2. |
F024705
|
[1] |
PROTECTION
|
|
| 3. |
F024706
|
[1] |
PROTECTION
|
|
| 3. |
F032049
|
[1] |
Cover
|
|
| 4. |
F024707
|
[1] |
Plate
|
|
| 5. |
F024708
|
[1] |
COVER PLATE
|
|
| 5. |
F032050
|
[1] |
FILLING PLATE
|
|
| 6. |
F005596
|
[10] |
Screw
|
|
| 6. |
F005596
|
[12] |
Screw
|
|
| 7. |
F024709
|
[1] |
Holder
|
|
| 7. |
F031379
|
[1] |
Holder
|
|
| 8. |
F008445
|
[2] |
Screw
|
|
| 8. |
F008445
|
[4] |
Screw
|
|
| 9. |
F003588
|
[2] |
Lock Nut
|
|
| 9. |
F003588
|
[4] |
Lock Nut
|
|
| 10. |
F032053
|
[1] |
Cover
|
|
