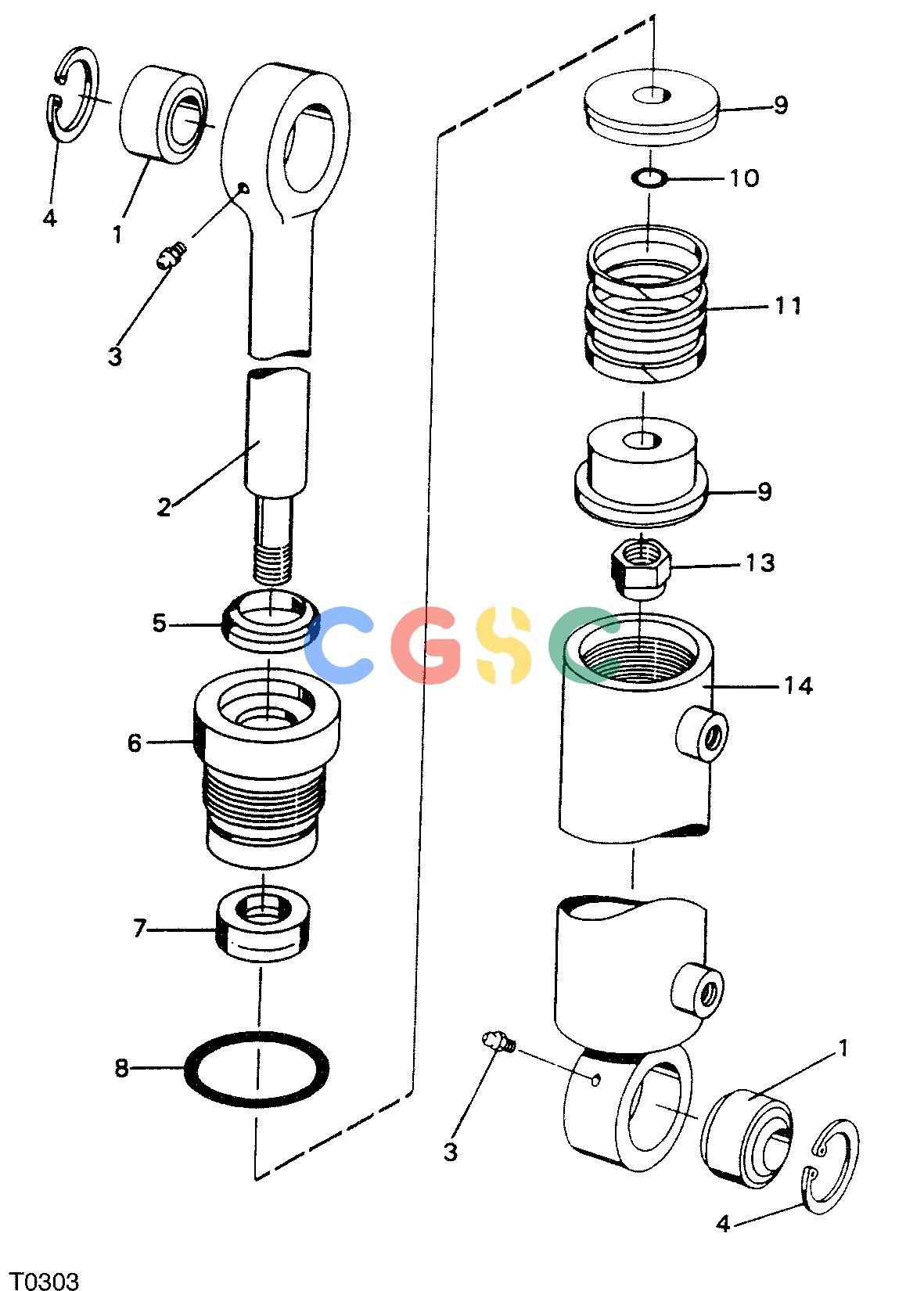

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE CYLINDER, SAW F042138 11 58 T0303 [T0303]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
681 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F024733
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 2. |
F024845
|
[1] |
PISTON ROD
|
|
| 3. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 4. |
F003370
|
[4] |
CIRCLIP
|
|
| 5. |
F035257
|
[1] |
Scraper
|
|
| 6. |
F035258
|
[1] |
PISTON GUIDE
|
|
| 7. |
F004726
|
[1] |
Seal
|
|
| 8. |
F035259
|
[1] |
O-Ring
|
|
| 9. |
F035260
|
[1] |
Piston
|
|
| 10. |
F035261
|
[1] |
O-Ring
|
|
| 11. |
F035262
|
[1] |
Seal
|
|
| 13. |
F035263
|
[1] |
Lock Nut
|
|
| 14. |
F035264
|
[1] |
CYLINDER TUBE
|
|
| |
F008715
|
[1] |
Seal Kit
|
|
