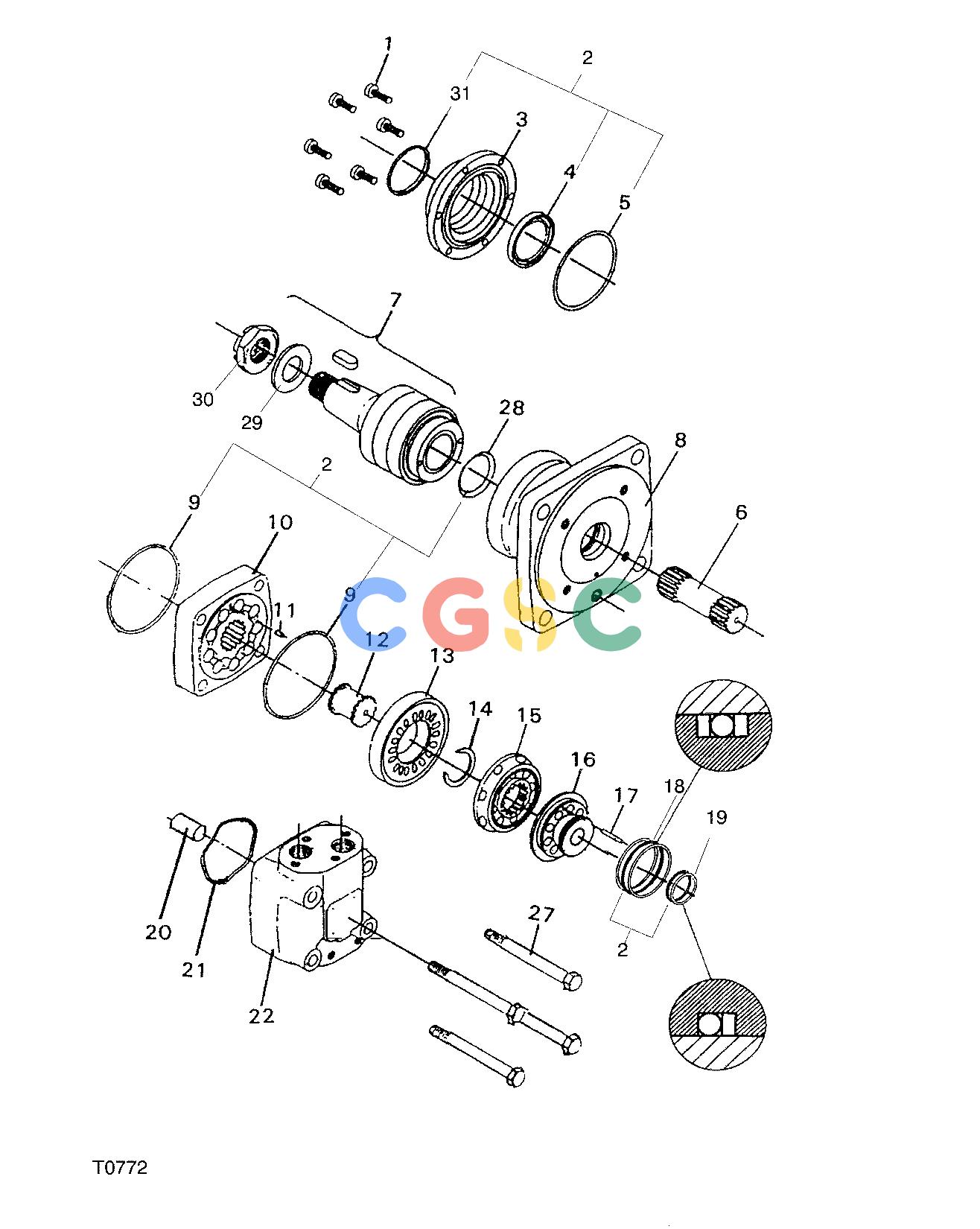

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR F042138 11 12 T0772 [T0772]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F034495
|
[3] |
Hydraulic Motor
|
|
| 1. |
F003411
|
[6] |
Screw
|
|
| 2. |
F032059
|
[1] |
Seal Kit
|
|
| 3. |
F024791
|
[1] |
Cap
|
|
| 4. |
F035130
|
[1] |
Seal
|
|
| 5. |
F030646
|
[1] |
O-Ring
|
|
| 6. |
F030996
|
[1] |
Shaft
|
|
| 7. |
F024792
|
[1] |
SHAFT ASSY
|
|
| 8. |
F024794
|
[1] |
BEARING COVER
|
|
| 9. |
F030646
|
[2] |
O-Ring
|
|
| 10. |
F035131
|
[1] |
Gear
|
|
| 11. |
F035132
|
[1] |
GUIDING PIN
|
|
| 12. |
F035133
|
[1] |
Guide
|
|
| 13. |
F035134
|
[1] |
FLAT PIECE
|
|
| 14. |
F035135
|
[1] |
Ring
|
|
| 15. |
F035136
|
[1] |
VALVE PLATE
|
|
| 16. |
F035137
|
[1] |
FLAT PIECE
|
|
| 16. |
F049667
|
[1] |
Plate
|
|
| 17. |
F035138
|
[1] |
GUIDING PIN
|
|
| 17. |
F049666
|
[1] |
GUIDING PIN
|
|
| 18. |
F035139
|
[1] |
O-Ring
|
|
| |
F035140
|
[2] |
SUPPORT RING
|
|
| 19. |
F035141
|
[1] |
O-Ring
|
|
| |
F035142
|
[1] |
SUPPORT RING
|
|
| 20. |
F035370
|
[1] |
Spacer
|
|
| 21. |
F049668
|
[2] |
Spring Washer
|
|
| 22. |
F035145
|
[1] |
VALVE HOUSING
|
|
| 22. |
F052838
|
[1] |
VALVE HOUSING
|
|
| 23. |
F035146
|
[2] |
Ball
|
|
| 24. |
F035147
|
[2] |
Spring
|
|
| 25. |
F035148
|
[2] |
Washer
|
|
| 26. |
F035149
|
[2] |
Plug
|
|
| 27. |
F035150
|
[4] |
Screw
|
|
| 28. |
F012682
|
[1] |
Seal
|
|
| 29. |
F024743
|
[1] |
Washer
|
|
| 30. |
F024740
|
[1] |
CASTLE NUT
|
|
| 31. |
F035129
|
[1] |
Seal
|
|
