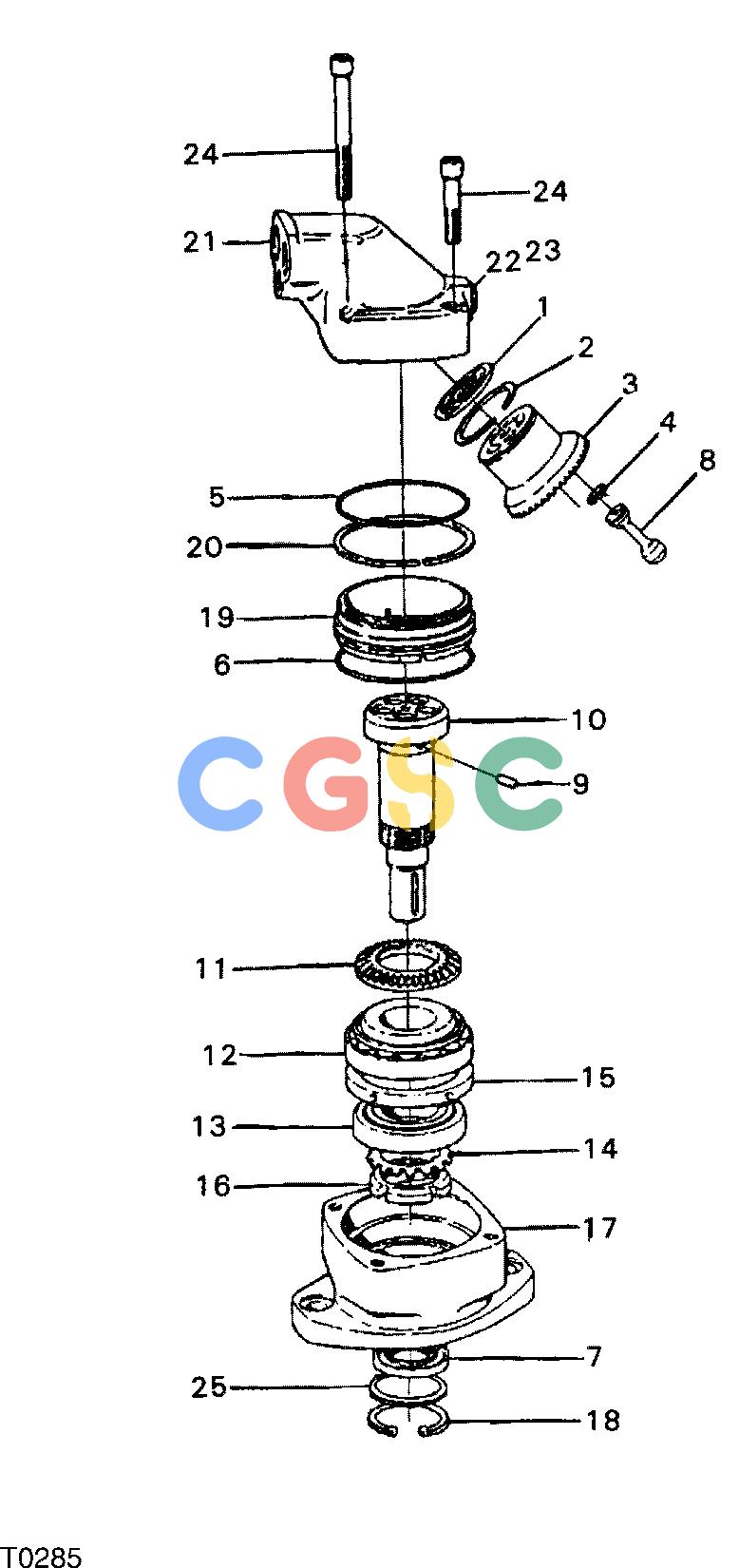

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE MOTOR F042138 11 18 T0285 [T0285]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1018 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F024732
|
[1] |
Hydraulic Motor
|
|
| 1. |
F035011
|
[1] |
DISC
|
|
| 2. |
F035019
|
[1] |
CIRCLIP
|
|
| 3. |
F035018
|
[1] |
CYLINDER DRUM
|
|
| 4. |
F035107
|
[5] |
Piston Ring
|
|
| 5. |
F010707
|
[1] |
O-Ring
|
|
| 6. |
F026186
|
[1] |
O-Ring
|
|
| 7. |
F035013
|
[1] |
Seal
|
|
| 8. |
F035108
|
[5] |
Piston
|
|
| 9. |
F035109
|
[1] |
GUIDING PIN
|
|
| 10. |
F035015
|
[1] |
Shaft
|
|
| 11. |
F035110
|
[1] |
GEAR RIM
|
|
| 12. |
F035023
|
[1] |
Roller Bearing
|
|
| 13. |
F035025
|
[1] |
Roller Bearing
|
|
| 14. |
F003828
|
[1] |
Lock Washer
|
|
| 15. |
F035024
|
[1] |
SPACER RING
|
|
| 16. |
F003833
|
[1] |
Lock Nut
|
|
| 17. |
F035012
|
[1] |
Housing
|
|
| 18. |
F003372
|
[1] |
CIRCLIP
|
|
| 19. |
F035026
|
[1] |
Sleeve
|
|
| 20. |
F035027
|
[1] |
Shim
|
|
| 21. |
F035111
|
[1] |
Housing
|
|
| 22. |
F003383
|
[1] |
Plug
|
|
| 23. |
F005166
|
[1] |
SEAL RING
|
|
| 24. |
F003421
|
[4] |
Screw
|
|
| 25. |
F035112
|
[1] |
SUPPORT RING
|
|
