神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (03-005) - PEDAL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

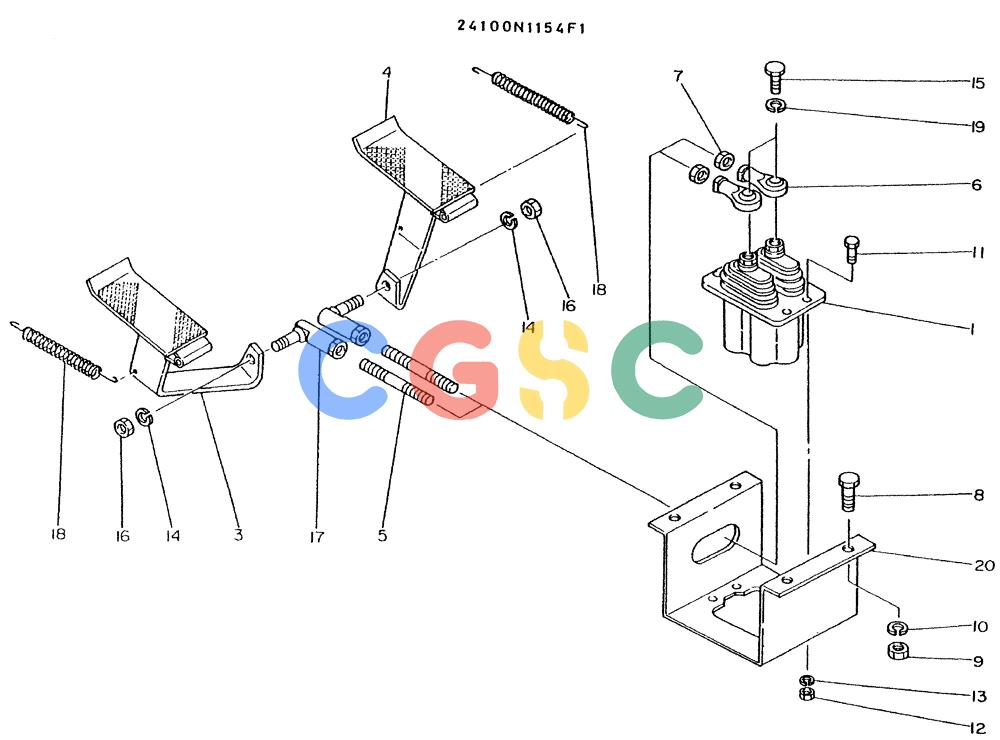

| . . | 24100N1154F1 | [1] | PEDAL ASSY, CONSISTS OF REF 1 TO 21 | |
| 1. | 2436R262 | [1] | VALVE, PILOT | VALVE, PILOT |
| 3. | 2418P3980D1 | [1] | PEDAL | |
| 4. | 2418P3980D2 | [1] | PEDAL | |
| 5. | 2420T3051 | [2] | ROD, CONTROL | |
| 6. | 2420Z693 | [2] | ROD-END | |
| 7. | ZN11C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 6. | ZS11C10030 | [4] | CAPSCREW,Hex, M10 x 30mm, Cl 4.8 | KOBSCREW M10x1.50x30mm |
| 9. | ZN11C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 10. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 11. | ZS11C08025 | [4] | CAPSCREW | |
| 12. | ZN11C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 13. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 14. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 15. | ZS11C12030 | [2] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 16. | ZN12F12007 | [2] | NUT | KOBM12x1.25mm Superseded by part number: ZN17F12007 |
| 17. | R06T0011 | [2] | ROD-END | ROD-END |
| 18. | W17P0007 | [2] | SPRING | KOB |
| 19. | ZW22K12000 | [2] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 20. | 2416P4669 | [1] | BRACKET | |
