神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (03-006) - LEVEL ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
504 次

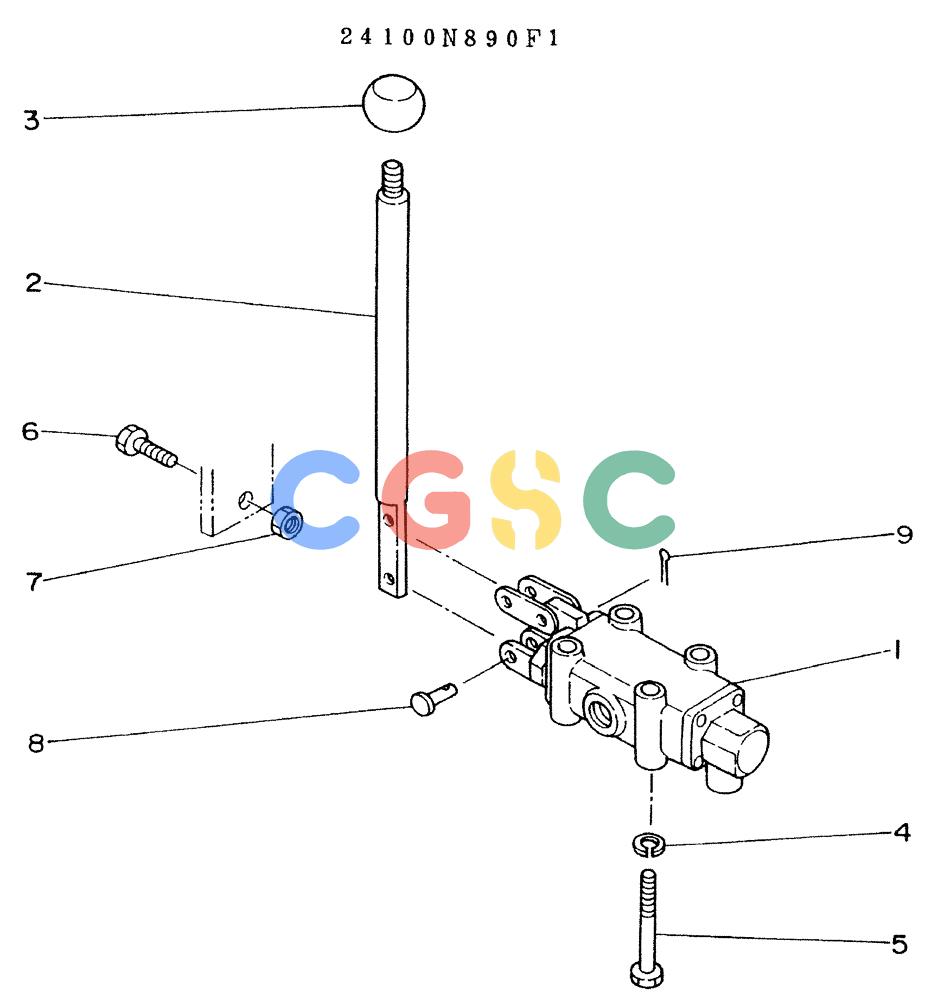

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N890F1 | [1] | LEVER ASSY, CONTROL CONSISTS OF REF 1 TO 7 | LEVER ASSY, CONTROL CONSISTS OF REF 1 TO 7 |
| 1. | 2436R250F1 | [1] | CONTROL VALVE | KOB |
| 2. | 2406P1165 | [1] | CONTROL LEVER | |
| 3. | 2406Z174 | [1] | BALL, LEVER | BALL, LEVER |
| 4. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | ZS11C08065 | [4] | CAPSCREW -- M08x1.25x65mm | |
| 6. | ZS11C08030 | [1] | CAPSCREW -- M08x1.25x30mm | |
| 7. | ZN11C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 8. | 2436R250S18 | [1] | PIN | PIN |
| 9. | 2436R250S19 | [1] | PIN | PIN |
