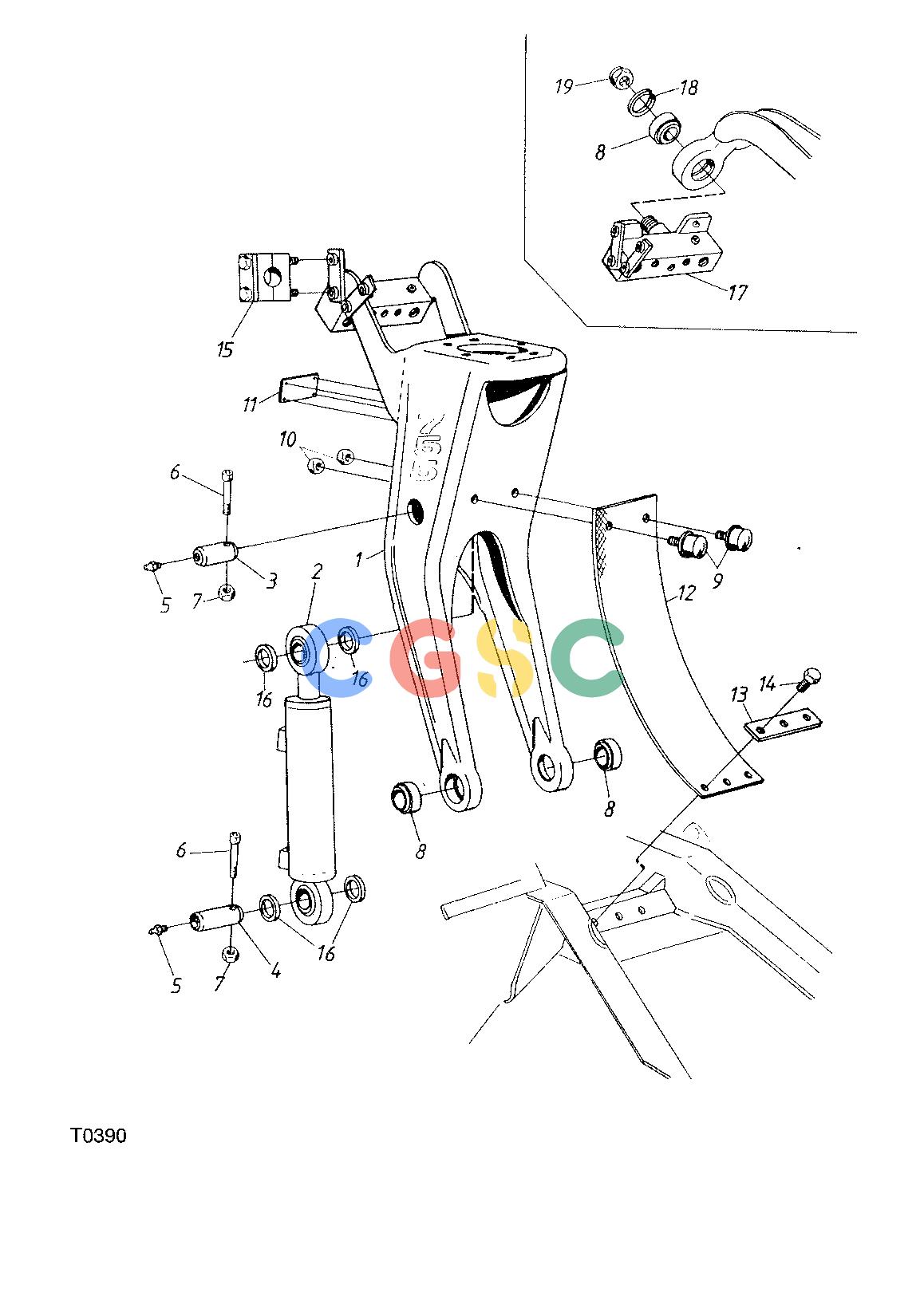

约翰迪尔零件查询755B ATT - ATTACHMENTS ENGINE TILTING FRAME F042138 11 14 T0390 [T0390]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024726
|
[1] |
Frame
|
|
| |
F030997
|
[1] |
Leg
|
|
| 2. |
F003226
|
[1] |
Cylinder
|
|
| 3. |
F003240
|
[1] |
PIVOT PIN
|
|
| 4. |
F003239
|
[1] |
PIVOT PIN
|
|
| 5. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 6. |
F008447
|
[2] |
Screw
|
|
| 7. |
F003588
|
[2] |
Lock Nut
|
|
| 8. |
F003820
|
[3] |
SPHERICAL BEARING
|
|
| 9. |
F003205
|
[2] |
DAMPER
|
|
| 10. |
F003590
|
[2] |
Lock Nut
|
|
| 11. |
F024728
|
[1] |
Sign
|
|
| |
F013131
|
[4] |
Screw
|
|
| |
F003584
|
[4] |
Lock Nut
|
|
| 12. |
F024729
|
[1] |
RUBBER CLOTH
|
|
| 13. |
F024730
|
[1] |
FLAT PIECE
|
|
| 14. |
F003531
|
[3] |
Screw
|
|
| 15. |
F023556
|
[2] |
Clamp
|
|
| |
F052835
|
[2] |
Clamp
|
|
| 16. |
F008513
|
[4] |
Sleeve
|
|
| 17. |
F031008
|
[1] |
BLOCK
|
|
| 18. |
F003373
|
[1] |
CIRCLIP
|
|
| 19. |
F030998
|
[1] |
Nut
|
|
| |
F052836
|
[2] |
Sign
|
|
