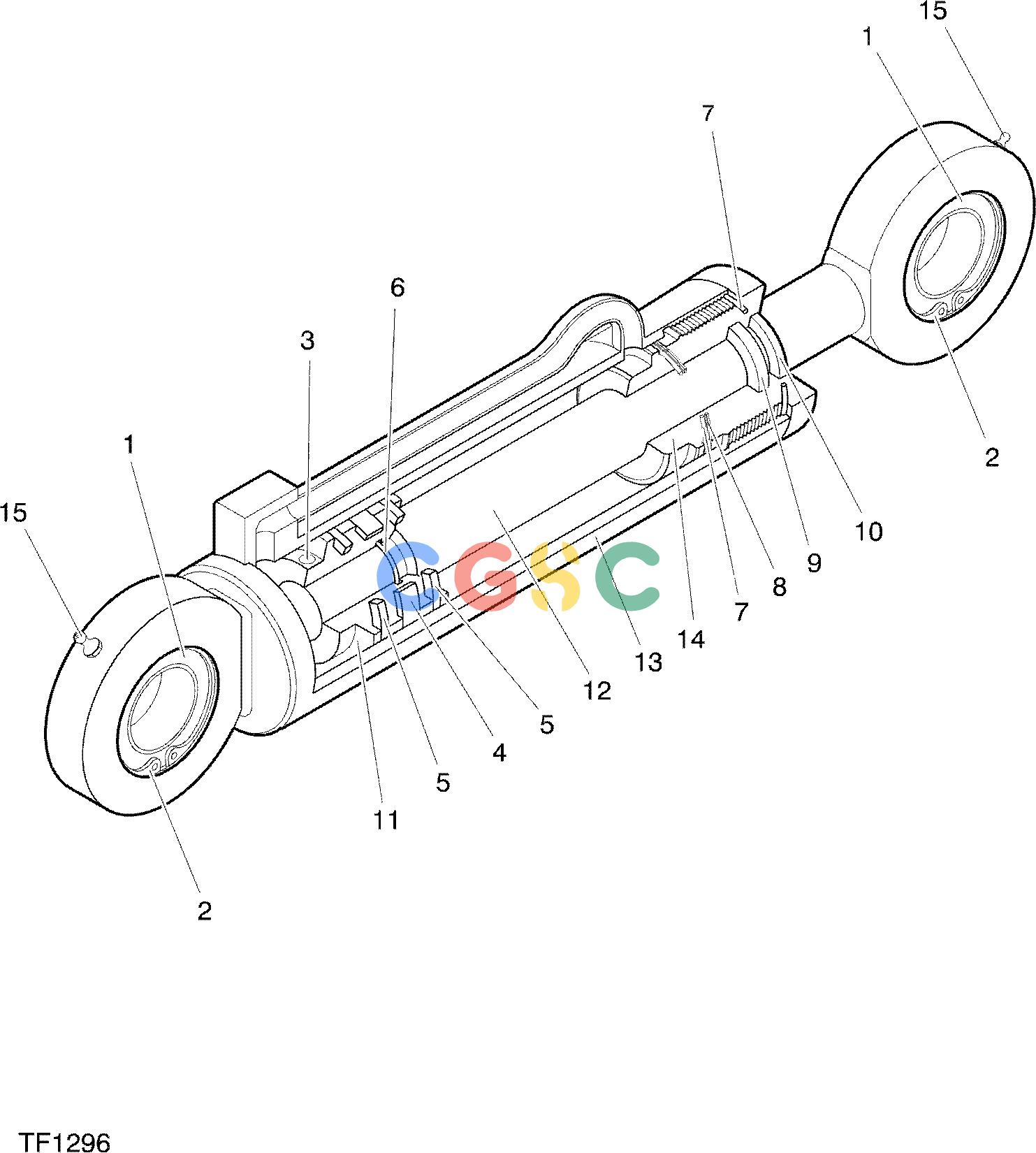

约翰迪尔零件查询758 ATT - ATTACHMENTS ENGINE CYLINDER, FEED ROLLS F056078 11 26 TF1296 [TF1296]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F056115
|
|
Cylinder
|
|
| 1. |
F003819
|
[2] |
SPHERICAL BEARING
|
|
| 2. |
F003371
|
[2] |
CIRCLIP
|
|
| 3. |
F003463
|
[1] |
STOP SCREW
|
|
| 4. |
F019025
|
[1] |
PISTON GUIDE
|
|
| 5. |
F056105
|
[1] |
Seal
|
|
| 6. |
F005637
|
[1] |
O-Ring
|
|
| 7. |
F004710
|
[2] |
O-Ring
|
|
| 8. |
F056102
|
[1] |
SUPPORT RING
|
|
| 9. |
F056103
|
[1] |
Seal
|
|
| 10. |
F056100
|
[1] |
Scraper
|
|
| 11. |
F056101
|
[1] |
Piston
|
|
| 12. |
F056098
|
[1] |
PISTON ROD
|
|
| 13. |
F056099
|
[1] |
CYLINDER TUBE
|
|
| 14. |
F056096
|
[1] |
Guide
|
|
| 15. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 16. |
F056097
|
[1] |
Seal Kit
|
|
