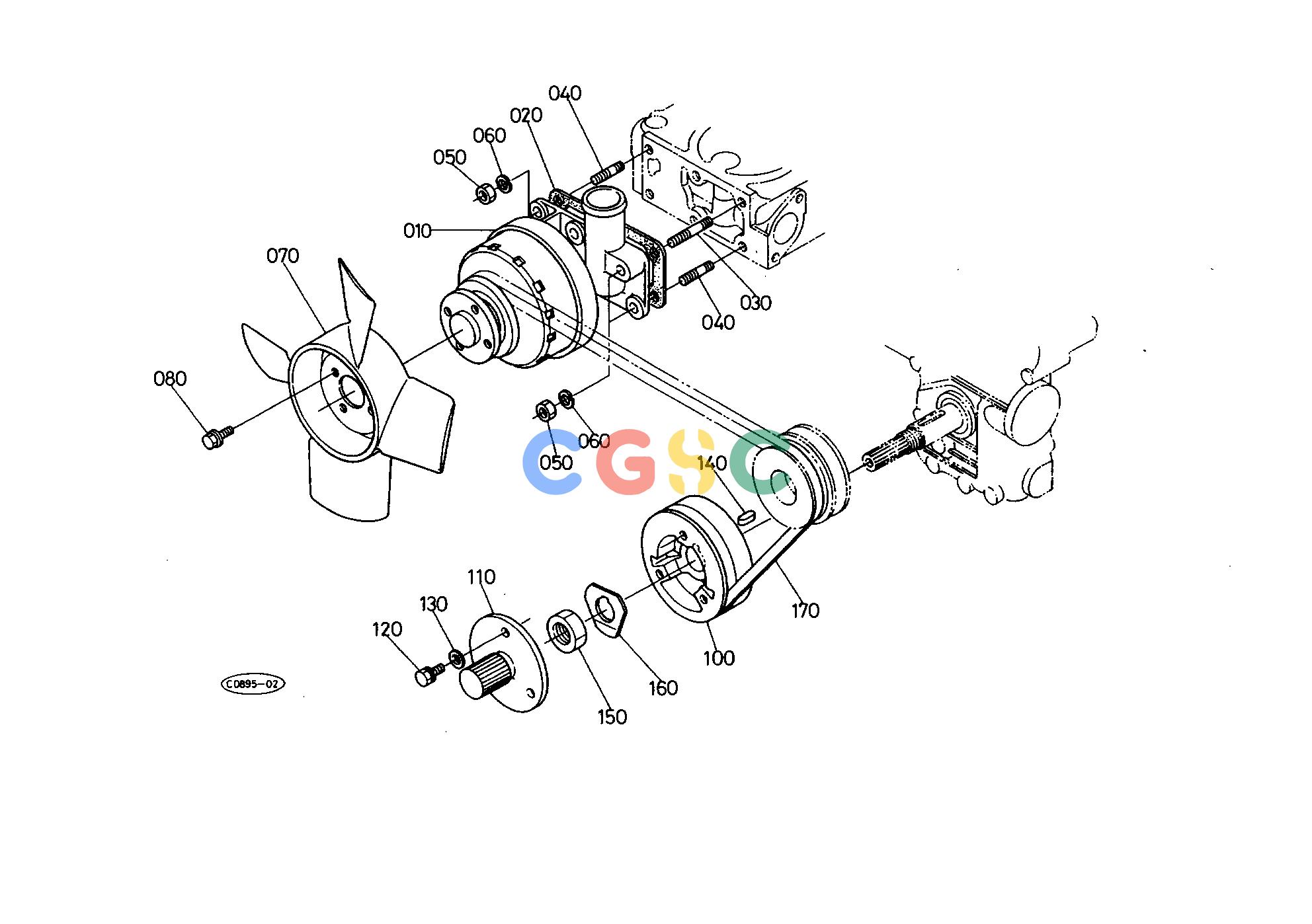

久保田零件查询T03100 FAN/PULLEY [U] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1565264010
|
[1] |
ASSY PULLEY
|
2.6400(lbs); 1.200
|
| 020. |
1526172920
|
[1] |
GASKET WATER FLANGE
|
0.0000(lbs); 0.000
|
| 030. |
0151350645
|
[1] |
STUD
|
0.0242(lbs); 0.011
|
| 040. |
0151350616
|
[5] |
STUD
|
0.0088(lbs); 0.004
|
| 050. |
0205650060
|
[6] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[5] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
1567374110
|
[1] |
FAN
|
0.6600(lbs); 0.300
|
| 080. |
0175450610
|
[4] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
1526374280
|
[1] |
PULLEY FAN DRIVE
|
1.8700(lbs); 0.850
|
| 110. |
6670488530
|
[1] |
FLANGE PTO
|
0.8800(lbs); 0.400
|
| 120. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
0401350080
|
[3] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 140. |
0571200515
|
[1] |
KEY FEATHER
|
0.0066(lbs); 0.003
|
| 150. |
1526123360
|
[1] |
NUT CRANKSHAFT
|
0.0748(lbs); 0.034
|
| 160. |
1537223380
|
[1] |
WASHER CRANKSHAFT
|
0.0154(lbs); 0.007
|
| 170. |
1523172530
|
[1] |
BELT FAN
|
0.1452(lbs); 0.066
|
