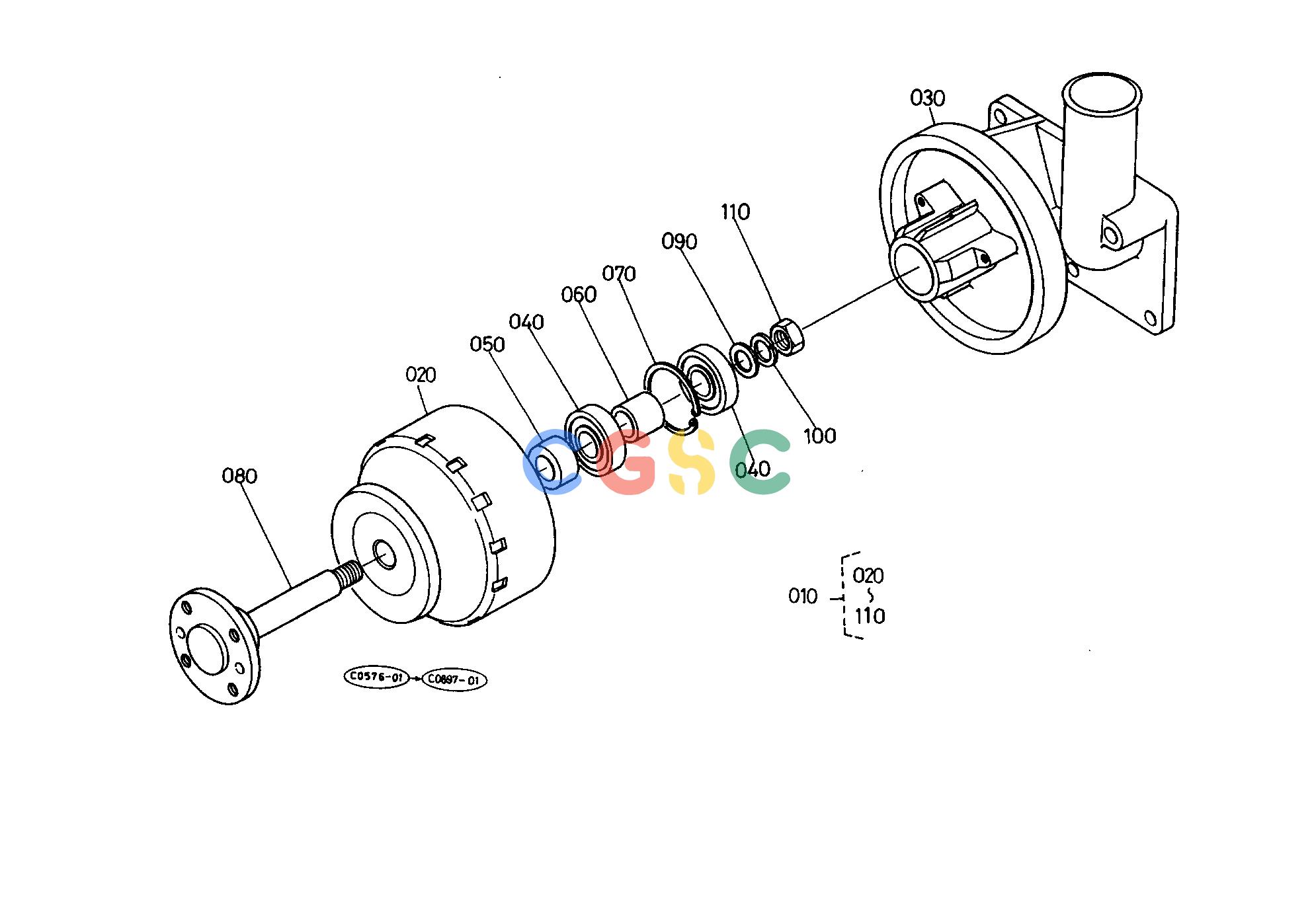

久保田零件查询T03200 FAN PULLEY (COMPONENTS PARTS) [U] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1565264010
|
[1] |
ASSY PULLEY
|
2.6400(lbs); 1.200
|
| 020. |
1537264040
|
[1] |
ROTOR
|
2.0900(lbs); 0.950
|
| 030. |
1537264362
|
[1] |
BASE STATOR
|
0.8800(lbs); 0.400
|
| 040. |
1553174180
|
[2] |
BEARING BALL
|
0.0880(lbs); 0.040
|
| 050. |
1526164140
|
[1] |
COLLAR
|
0.0550(lbs); 0.025
|
| 060. |
1526164150
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 070. |
1526195470
|
[1] |
CIR-CLIP INTERNAL
|
0.0044(lbs); 0.002
|
| 080. |
1537274140
|
[1] |
SHAFT FAN
|
0.4840(lbs); 0.220
|
| 090. |
1526194020
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 100. |
1526194070
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 110. |
1526192030
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
