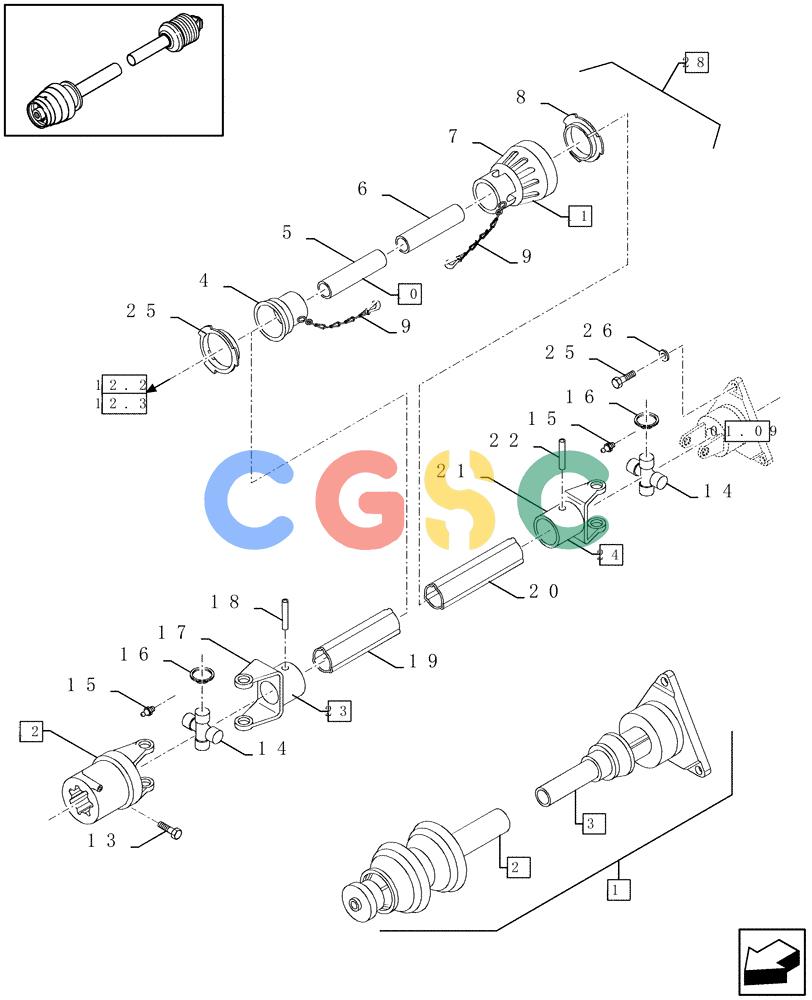

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (01.05[01]) - POWER TAKE-OFF, REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84607939
|
[1] |
PTO
|
ZED
, Serial Range: (2-25)
|
| 2. |
84437814
|
[1] |
PTO
|
ZED
, Serial Range: (10,12-19)
|
| 3. |
84437825
|
[1] |
PTO
|
ZED
(9,14 to 16,20 to 22,fig. 01.09)
|
| 4. |
84437807
|
[1] |
PROTECTION CAP
|
ZED
|
| 5. |
84437778
|
[1] |
PROTECTING COVER
|
ZED
|
| 6. |
84437775
|
[1] |
PROTECTING COVER
|
ZED
|
| 7. |
84437805
|
[1] |
PROTECTING COVER
|
ZED
|
| 8. |
84036377
|
[1] |
EXTENSION
|
ZED
|
| 9. |
84036378
|
[2] |
CHAIN
|
ZED
Superseded by part number: 87586692
|
| 10. |
84437794
|
[1] |
PROTECTING COVER
|
ZED
(4,5,9,25)
|
| 11. |
84437799
|
[1] |
PROTECTING COVER
|
ZED
, Serial Range: (6-9)
|
| 12. |
84043379
|
[1] |
YOKE
|
ZED
(13)
|
| 13. |
84041575
|
[1] |
PIN
|
ZED
Superseded by part number: 87587210
|
| 14. |
84004289
|
[2] |
SPIDER
|
ZED
(15,16)
|
| 15. |
84026545
|
[1] |
LUBE NIPPLE
|
ZED
|
| 16. |
84036362
|
[8] |
CIRCLIP
|
ZED
|
| 17. |
84043380
|
[1] |
YOKE
|
ZED
|
| 18. |
80062218
|
[1] |
SLOTTED PIN
|
ZED
Superseded by part number: 62218
|
| 19. |
84043381
|
[1] |
PROPELLER SHAFT
|
ZED
|
| 20. |
84437774
|
[1] |
PROPELLER SHAFT
|
ZED
|
| 21. |
84004288
|
[1] |
YOKE
|
ZED
|
| 22. |
84036368
|
[1] |
ROLL PIN
|
ZED
|
| 23. |
84437811
|
[1] |
PTO
|
ZED
, Serial Range: (12-19)
|
| 24. |
84043397
|
[1] |
PTO SHAFT
|
ZED
(14 to 16,20 to22,fig. 01.09)
|
| 25. |
84036372
|
[1] |
RING
|
ZED
|
| 26. |
80300389
|
[3] |
BOLT,M12 x 35mm
|
ZED
M12x35 Superseded by part number: 628-12035
|
| 27. |
80140046
|
[3] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 28. |
84437789
|
[1] |
PROTECTING COVER
|
ZED
(10,11)
|
