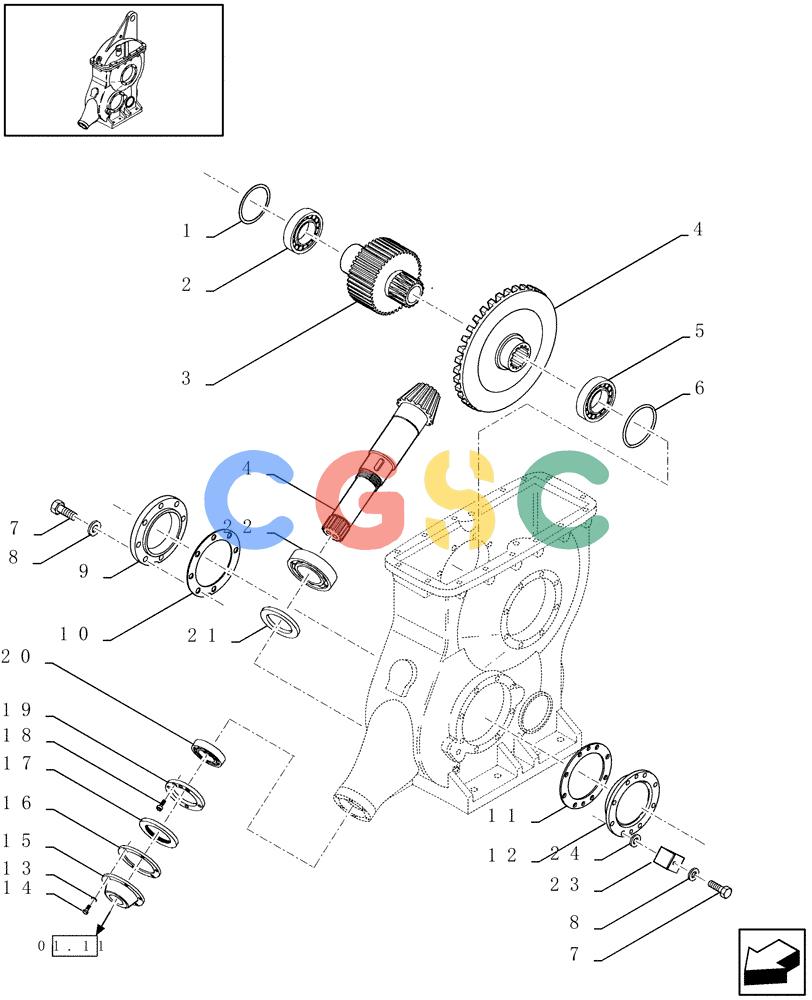

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (03.02[01]) - MAIN GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84074471
|
[1] |
SET OF RINGS
|
ZED
|
| 2. |
26800090
|
[1] |
TAPERED BEARING,105mm ID x 190mm OD x 36mm W
|
ZED
Superseded by part number: 87746863
|
| 3. |
84074446
|
[1] |
GEAR
|
ZED
|
| 4. |
84074483
|
[1] |
BEVEL GEAR
|
ZED
|
| 5. |
24903750
|
[1] |
BALL BEARING,120mm ID x 180mm OD x 38mm W
|
ZED
|
| 6. |
84074480
|
[1] |
O-RING
|
ZED
|
| 7. |
11112621
|
[1] |
SCREW,Hex, M12 x 35mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number:
|
| 8. |
12034771
|
[1] |
LOCK WASHER
|
ZED
Superseded by part number: 412123
|
| 9. |
84074441
|
[1] |
COVER
|
ZED
|
| 10. |
84074455
|
[1] |
GASKET
|
ZED
|
| 11. |
84074467
|
[1] |
SHIM KIT
|
ZED
|
| 12. |
84074459
|
[1] |
COVER
|
ZED
|
| 13. |
12034571
|
[6] |
WASHER
|
ZED
Superseded by part number: 83990583
|
| 14. |
16043624
|
[6] |
SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
TTF
|
| 15. |
84074442
|
[1] |
COVER
|
ZED
|
| 16. |
84074453
|
[1] |
GASKET,0.2mm Thk
|
ZED
|
| 17. |
80536079
|
[1] |
SEALING ELEMENT
|
ZED
Superseded by part number: 536079
|
| 18. |
84074460
|
[2] |
SCREW
|
ZED
M8x16
|
| 19. |
84074464
|
[1] |
RING NUT
|
ZED
M70
|
| 20. |
26800020
|
[1] |
TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W
|
ZED
|
| 21. |
84074469
|
[1] |
SHIM KIT
|
ZED
|
| 22. |
920018131
|
[1] |
TAPERED BEARING,75 mm ID x 160 mm OD x 58 mm
|
ZED
Superseded by part number: 9839403
|
| 23. |
84320570
|
[1] |
INDICATOR
|
ZED
|
| 24. |
80394630
|
[2] |
WASHER
|
ZED
12MM Superseded by part number: 86625256
|
