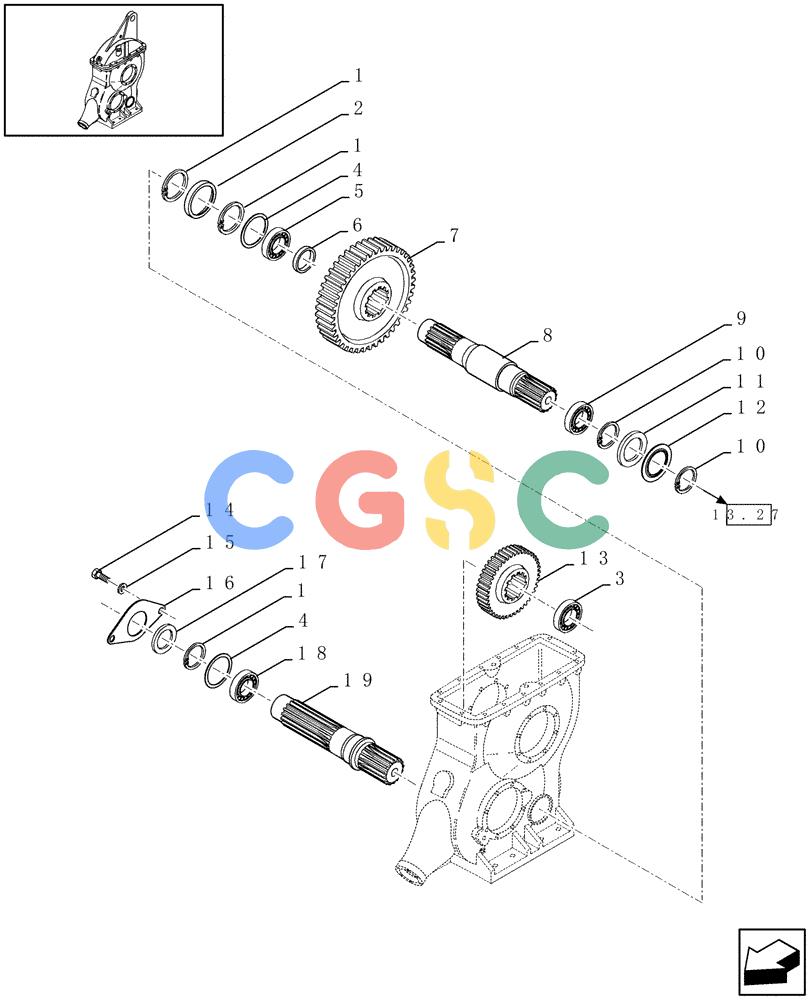

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (03.03[01]) - MAIN GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
80370021
|
[3] |
CIRCLIP
|
ZED
Superseded by part number: 370021
|
| 2. |
84074481
|
[1] |
COVER
|
ZED
|
| 3. |
84074473
|
[1] |
BALL BEARING
|
ZED
|
| 4. |
84074468
|
[1] |
SET OF RINGS
|
ZED
|
| 5. |
ST202
|
[1] |
BEARING, BALL,45mm ID x 85mm OD x 19mm W
|
IH
|
| 6. |
84074456
|
[1] |
SPACER
|
ZED
|
| 7. |
84074447
|
[1] |
GEAR
|
ZED
|
| 8. |
84074450
|
[1] |
SHAFT
|
ZED
|
| 9. |
24977960
|
[1] |
BEARING ASSY,55mm ID x 90mm OD x 18mm W
|
ZED
|
| 10. |
80370013
|
[2] |
SNAP RING
|
ZED
Superseded by part number: 370013
|
| 11. |
920018133
|
[1] |
SEAL
|
ZED
Superseded by part number: 5122845
|
| 12. |
84074476
|
[1] |
PLATE
|
ZED
|
| 13. |
84074445
|
[1] |
GEAR
|
ZED
|
| 14. |
80043151
|
[2] |
SCREW,M12 x 120mm
|
ZED
M12x20 Superseded by part number: 43151
|
| 15. |
12034771
|
[1] |
LOCK WASHER
|
ZED
Superseded by part number: 412123
|
| 16. |
84074477
|
[1] |
COVER
|
ZED
|
| 17. |
84074478
|
[1] |
SEALING RING
|
ZED
SEALRING
|
| 18. |
84074474
|
[1] |
BALL BEARING
|
ZED
|
| 19. |
84320871
|
[1] |
SHAFT
|
ZED
|
