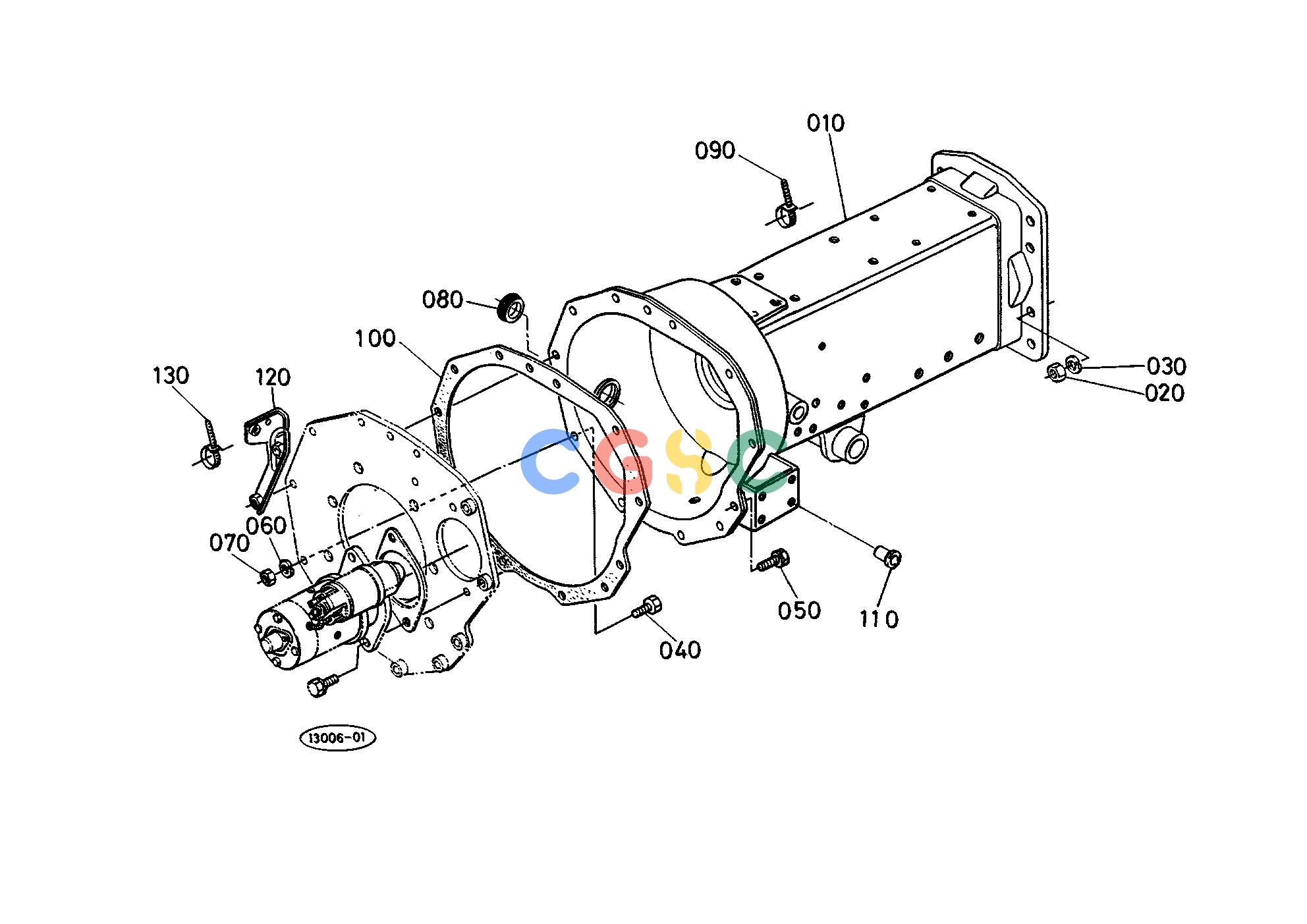

久保田零件查询T05000 CLUTCH HOUSING CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6700151100
|
[1] |
COMP.HOUSING CLUTCH
|
30.8000(lbs); 14.000
|
| 020. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 040. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
0112350825
|
[10] |
BOLT
|
0.0286(lbs); 0.013
|
| 060. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
6670451190
|
[1] |
COVER TIMING HOLE
|
0.0198(lbs); 0.009
|
| 090. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 100. |
6662151410
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 110. |
6659154390
|
[18] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 120. |
6681151450
|
[1] |
STAY FUEL
|
0.2244(lbs); 0.102
|
| 130. |
5358164150
|
[2] |
BAND CORD
|
0.0044(lbs); 0.002
|
