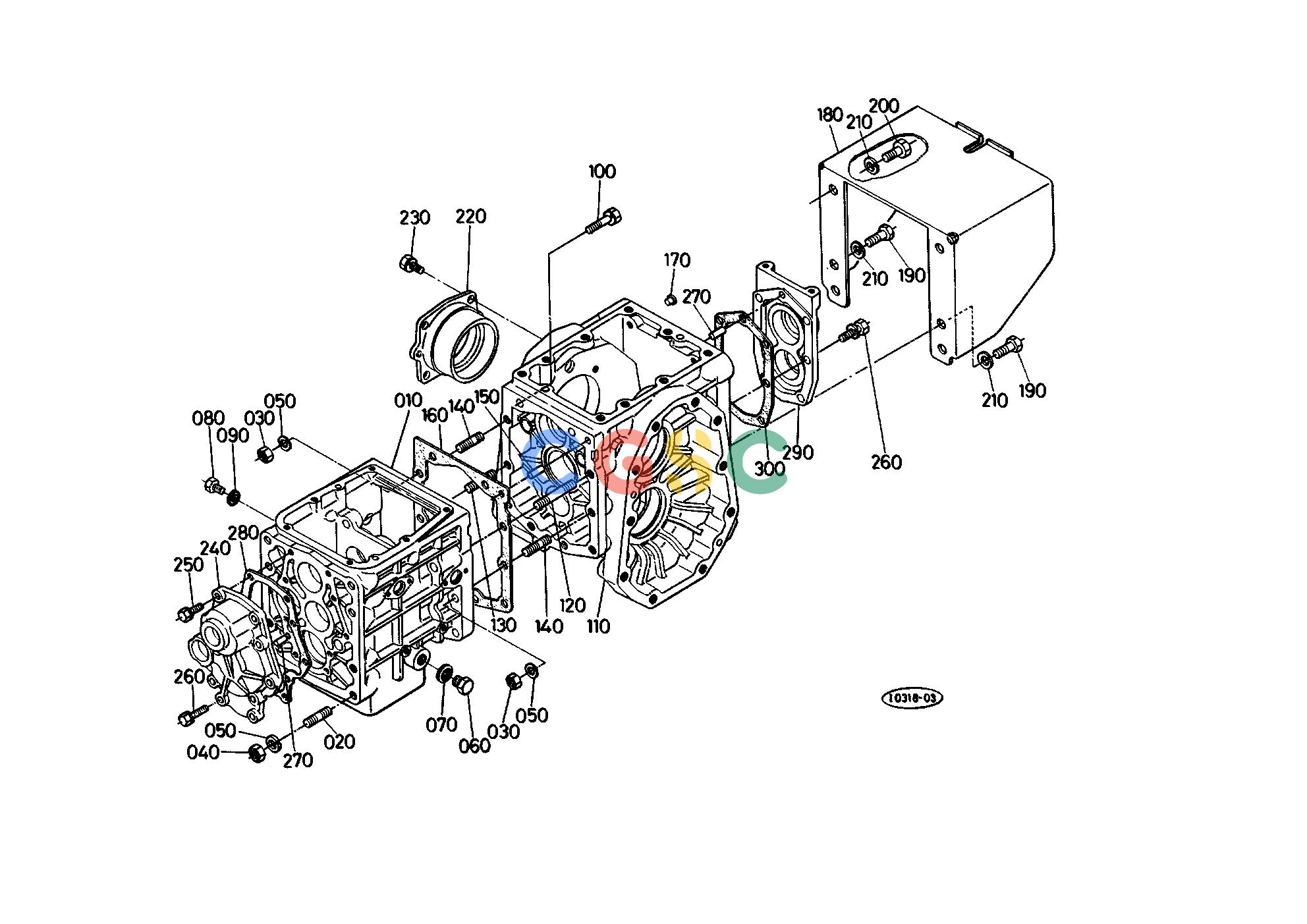

久保田零件查询T05100 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6700111110
|
[1] |
CASE TRANSMISSION
|
8.8000(lbs); 4.000
|
| 020. |
0155151022
|
[8] |
STUD
|
0.0000(lbs); 0.000
|
| 030. |
0217650100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0451250100
|
[18] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 060. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 070. |
0471701600
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 080. |
0105350612
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 090. |
0471700600
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 100. |
0112351055
|
[2] |
BOLT
|
0.0836(lbs); 0.038
|
| 110. |
6662111135
|
[1] |
CASE DIFF.GEAR
|
16.0600(lbs); 7.300
|
| 120. |
0155551075
|
[1] |
STUD
|
0.1100(lbs); 0.050
|
| 130. |
0155551085
|
[1] |
STUD
|
0.1320(lbs); 0.060
|
| 140. |
0155551035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 150. |
6661111160
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 160. |
6662111140
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 170. |
6661117450
|
[2] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 180. |
6649411210
|
[1] |
COVER PTO
|
3.5200(lbs); 1.600
|
| 190. |
0115351235
|
[4] |
BOLT
|
0.0858(lbs); 0.039
|
| 200. |
0115351225
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 210. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 220. |
6662111250
|
[1] |
HOLDER DIFF.BEARING
|
1.5796(lbs); 0.718
|
| 230. |
0112350822
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 240. |
6662112110
|
[1] |
COVER SHAFT
|
0.6776(lbs); 0.308
|
| 250. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 260. |
0112350832
|
[11] |
BOLT
|
0.0352(lbs); 0.016
|
| 270. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 280. |
6662112120
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 290. |
6649412210
|
[1] |
COVER REAR
|
2.7940(lbs); 1.270
|
| 300. |
6662112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
