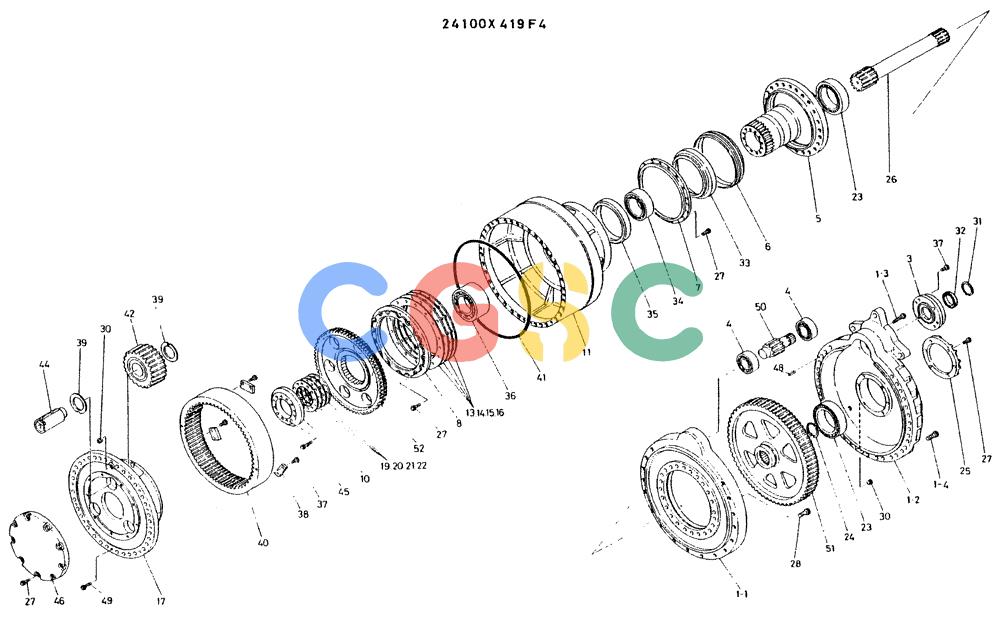

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-021) - REDUCTION UNIT, P/N 24100X419F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X419F4 | [1] | REDUCTION UNIT CONSISTS OF ITEM 1 TO 52 | REDUCTION UNIT CONSISTS OF ITEM 1 TO 52 |
| 1. | 2414J403F1 | [1] | HOUSING ASSY,CONSISTS OF ITEM 1-1 TO 1-4 | |
| 1-1. | 2414J397 | [1] | HOUSING | |
| 1-2. | 2414J398 | [1] | HOUSHING | |
| 1-3. | ZS23C16110 | [3] | SCREW,Hex Socket Head, M16 x 110mm | KOBM16x2.0x110mm |
| 1-4. | ZS23C16050 | [17] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 3. | 2418P2574 | [1] | RETAINER | RETAINER |
| 4. | 25Z494D7 | [2] | BEARING | KOB |
| 5. | 2410J175 | [1] | SPINDLE | SPINDLE |
| 6. | R45P0018D22 | [1] | SEAL, FLOATING | SEAL, FLOATING |
| 7. | 2418P2575 | [1] | RETAINER | |
| 8. | 2418N657 | [1] | RETAINER | |
| 10. | 2418P2577 | [1] | PLATE | |
| 11. | 2418J176 | [1] | PIPE | |
| 13. | 2420P932D1 | [2] | SHIM 0.4 | SHIM 0.4 |
| 14. | 2420P932D2 | [2] | SHIM 0.6 | SHIM 0.6 |
| 13. | 2420P932D3 | [2] | SHIM 0.7 | SHIM 0.7 |
| 16. | 2420P932D4 | [2] | SHIM 0.7 | SHIM 0.7 |
| 17. | 2413J178 | [1] | SPIDER | |
| 19. | 2420T2568D1 | [2] | SHIM 0.4 | SHIM 0.4 |
| 20. | 2420T2568D2 | [2] | SHIM 0.5 | SHIM 0.5 |
| 21. | 2420T2568D3 | [2] | SHIM 0.6 | SHIM 0.6 |
| 22. | 2420T2568D4 | [2] | SHIM 0.7 | SHIM 0.7 |
| 23. | 2425R144D1 | [2] | BEARING | BEARING |
| 24. | ZR26X08500 | [1] | RING | KOB |
| 25. | 2414P1063F1 | [1] | COVER ASSY,CONSISTS OF ITEM 25-1 & 25-2 | |
| 25-1. | 2414P1063 | [1] | COVER | |
| 25-2. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 26. | 2401N263 | [1] | GEAR, SUN | GEAR, SUN |
| 27. | ZS23C10035 | [8] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 28. | ZS23C24080 | [24] | SCREW | KOBM24x3.0x80mm |
| 30. | ZE82T12000 | [3] | PLUG | KOB3/4" PT |
| 31. | ZR16X06300 | [1] | RING, SNAP | RING, SNAP |
| 32. | 2445Z561 | [1] | OIL-SEAL | OIL-SEAL |
| 33. | 2418P2576 | [1] | SLEEVE | SLEEVE |
| 34. | 2425R143D1 | [1] | BEARING | BEARING |
| 35. | 2418T3972 | [1] | SLEEVE | SLEEVE |
| 36. | R25P0056D9 | [1] | BEARING, SPHERICAL | BEARING, SPHERICAL |
| 37. | ZS23C10025 | [12] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 38. | 2418T3973 | [4] | PLATE | |
| 39. | 2418T4987 | [6] | WASHER | WASHER |
| 40. | 2401N264 | [1] | GEAR, RING | GEAR, RING |
| 41. | R45N0001D27 | [1] | O-RING | KOB |
| 42. | 2401P221 | [3] | PINION | KOB |
| 44. | NSS | [3] | NOT SOLD SEPARAT | CON |
| 45. | ZS23C14045 | [12] | SCREW,Hex Socket Head, M14 x 45mm | KOBM14x2.0x45mm Superseded by part number: ZS28C14045 |
| 46. | 2414N656F1 | [1] | COVER | |
| 48. | ZP26D13040 | [1] | PIN, SPRING | PIN, SPRING |
| 49. | ZS23C12035 | [47] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 50. | 2401N323 | [1] | PINION | PINION |
| 51. | 2401N324 | [1] | GEAR | GEAR |
| 52. | 2418N1774 | [1] | HUB | HUB |
| 44. | 24010T1 | [3] | SHAFT KIT CONSIST OF REF | |
