神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (08-022) - COVER ASSY, P/N 24100J1892F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
830 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

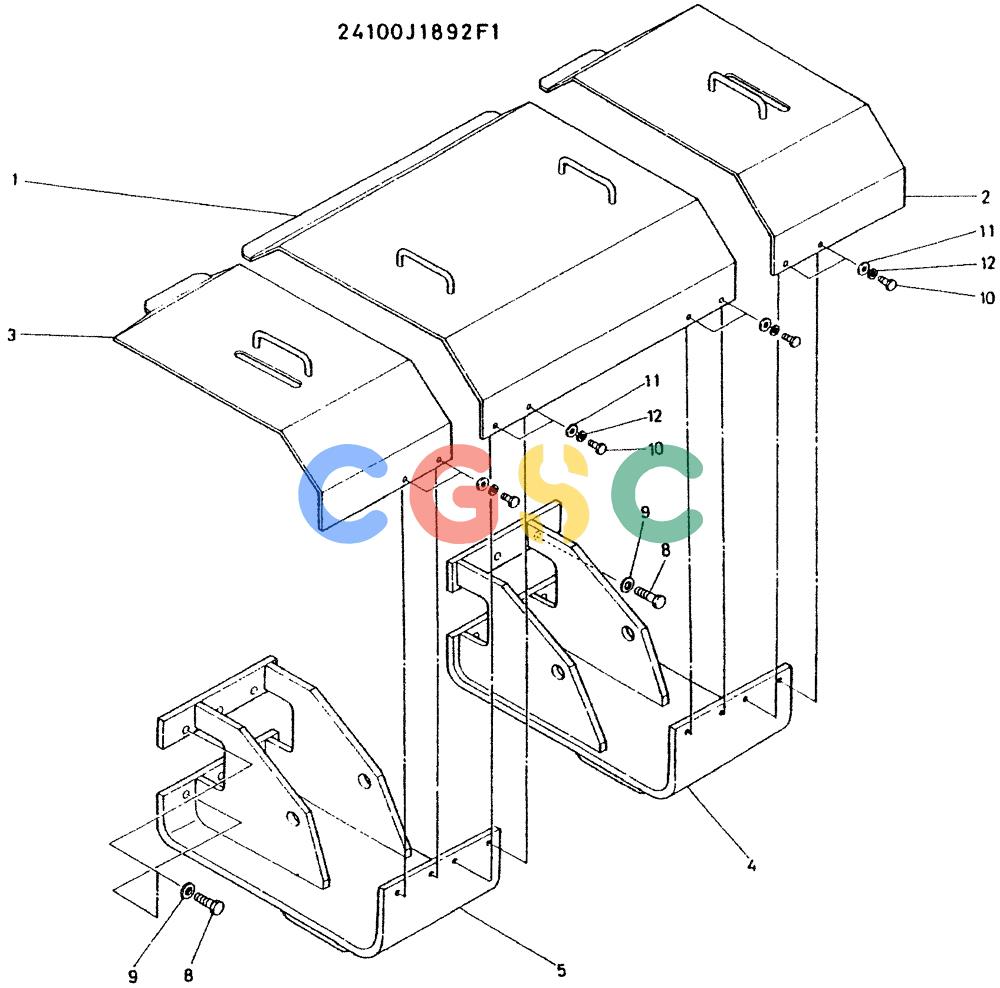

| . . | 24100J1892F1 | [1] | COVER ASSY,CONSISTS OF REF 1 TO 12 | |
| 1. | 2414N1363 | [1] | COVER | |
| 2. | 2414N1364D1 | [1] | COVER | |
| 3. | 2414N1364D2 | [1] | COVER | |
| 4. | 2414N1296D1 | [1] | COVER | |
| 5. | 2414N1296D2 | [1] | COVER | |
| 8. | ZS13C30075 | [12] | CAPSCREW | |
| 9. | R16T0152D5 | [12] | WASHER | KOBFlat -- ID 31 x OD 52 x Th 6.0mm |
| 10. | ZS12C12025 | [8] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 11. | ZW11X12000 | [8] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 12. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
