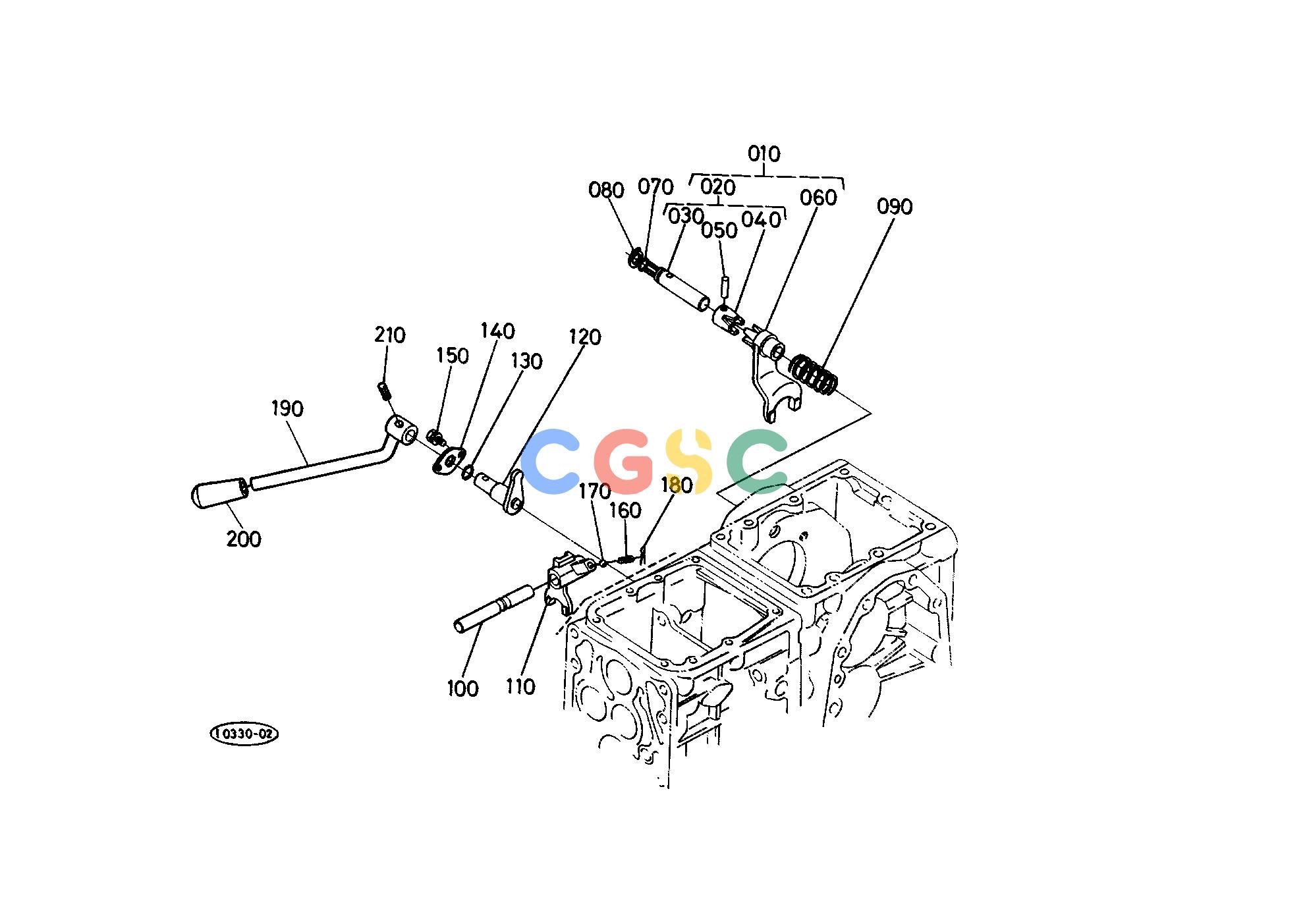

久保田零件查询T07400 FRONT WHEEL DRIVE LEVER FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
126 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6662118500
|
[1] |
ASSY CAM DIFF.LOCK
|
0.6600(lbs); 0.300
|
| 020. |
6662118510
|
[1] |
COMP.ROD FORK
|
0.2772(lbs); 0.126
|
| 030. |
6662118520
|
[1] |
ROD DIFF.LOCK FORK
|
0.2200(lbs); 0.100
|
| 040. |
6659118290
|
[1] |
CAM DIFF.LOCK
|
0.0484(lbs); 0.022
|
| 050. |
0501200425
|
[1] |
PIN STRAIGHT
|
0.0066(lbs); 0.003
|
| 060. |
6662118540
|
[1] |
FORK DIFF.LOCK SHIFT
|
0.3520(lbs); 0.160
|
| 070. |
0481110120
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 080. |
0461200110
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6659118320
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 100. |
6662118610
|
[1] |
SHAFT FORK
|
0.2640(lbs); 0.120
|
| 110. |
6662118620
|
[1] |
FORK SHIFT
|
0.2794(lbs); 0.127
|
| 120. |
6662118630
|
[1] |
ARM.F.WHEEL DRIVE
|
0.1980(lbs); 0.090
|
| 130. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 140. |
6659118180
|
[1] |
RETAINER FORK ROD
|
0.0264(lbs); 0.012
|
| 150. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 160. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 170. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 180. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 190. |
6731142710
|
[1] |
LEVER
|
0.4576(lbs); 0.208
|
| 190. |
6661142710
|
[1] |
LEVER
|
0.5214(lbs); 0.237
|
| 200. |
5420123270
|
[3] |
GRIP
|
0.0440(lbs); 0.020
|
| 210. |
0541100630
|
[3] |
PIN SPRING
|
0.0088(lbs); 0.004
|
