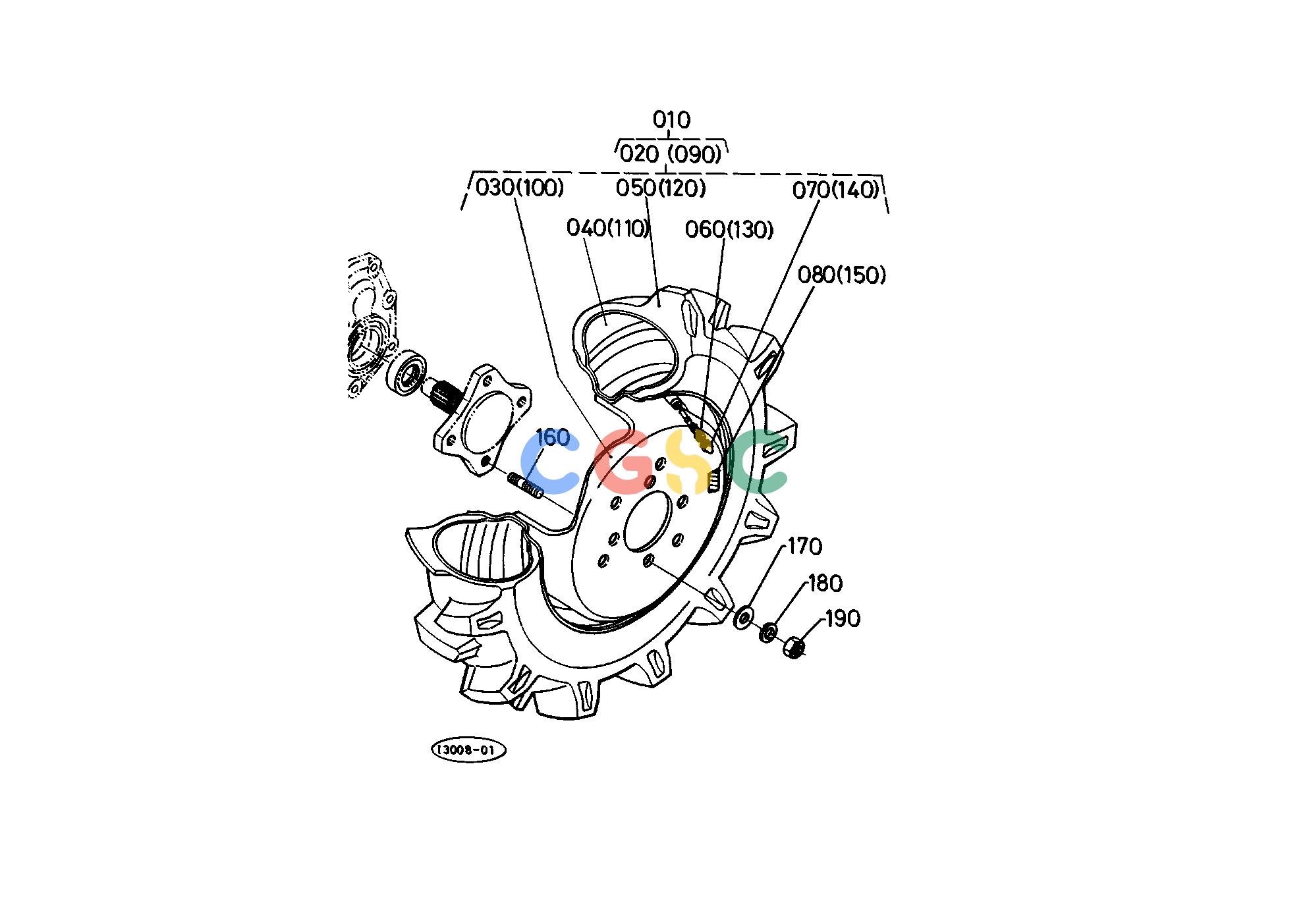

久保田零件查询T07500 FRONT WHEEL (4.50-10) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9601432010
|
[1] |
ASSY TIRE
|
37.4000(lbs); 17.000
|
| 010. |
6701157010
|
[1] |
ASSY TIRE
|
4.0810(lbs); 1.855
|
| 020. |
9601432100
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 020. |
6701157020
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 030. |
9601431312
|
[1] |
WHEEL
|
8.8000(lbs); 4.000
|
| 030. |
6701157030
|
[1] |
WHEEL
|
8.3600(lbs); 3.800
|
| 040. |
9201461120
|
[1] |
TUBE
|
1.2100(lbs); 0.550
|
| 050. |
9601432120
|
[1] |
TIRE
|
11.0000(lbs); 5.000
|
| 060. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 080. |
9601432140
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 080. |
6701157040
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 090. |
9601432110
|
[1] |
ASSY TIRE RH
|
18.4800(lbs); 8.400
|
| 090. |
6701157050
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 100. |
9601431312
|
[1] |
WHEEL
|
8.8000(lbs); 4.000
|
| 100. |
6701157030
|
[1] |
WHEEL
|
8.3600(lbs); 3.800
|
| 110. |
9201461120
|
[1] |
TUBE
|
1.2100(lbs); 0.550
|
| 120. |
9601432120
|
[1] |
TIRE
|
11.0000(lbs); 5.000
|
| 130. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 140. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 150. |
9601432150
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 150. |
6701157060
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 160. |
6675856970
|
[8] |
BOLT STUD
|
0.0660(lbs); 0.030
|
| 170. |
0401350120
|
[8] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 180. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 190. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
