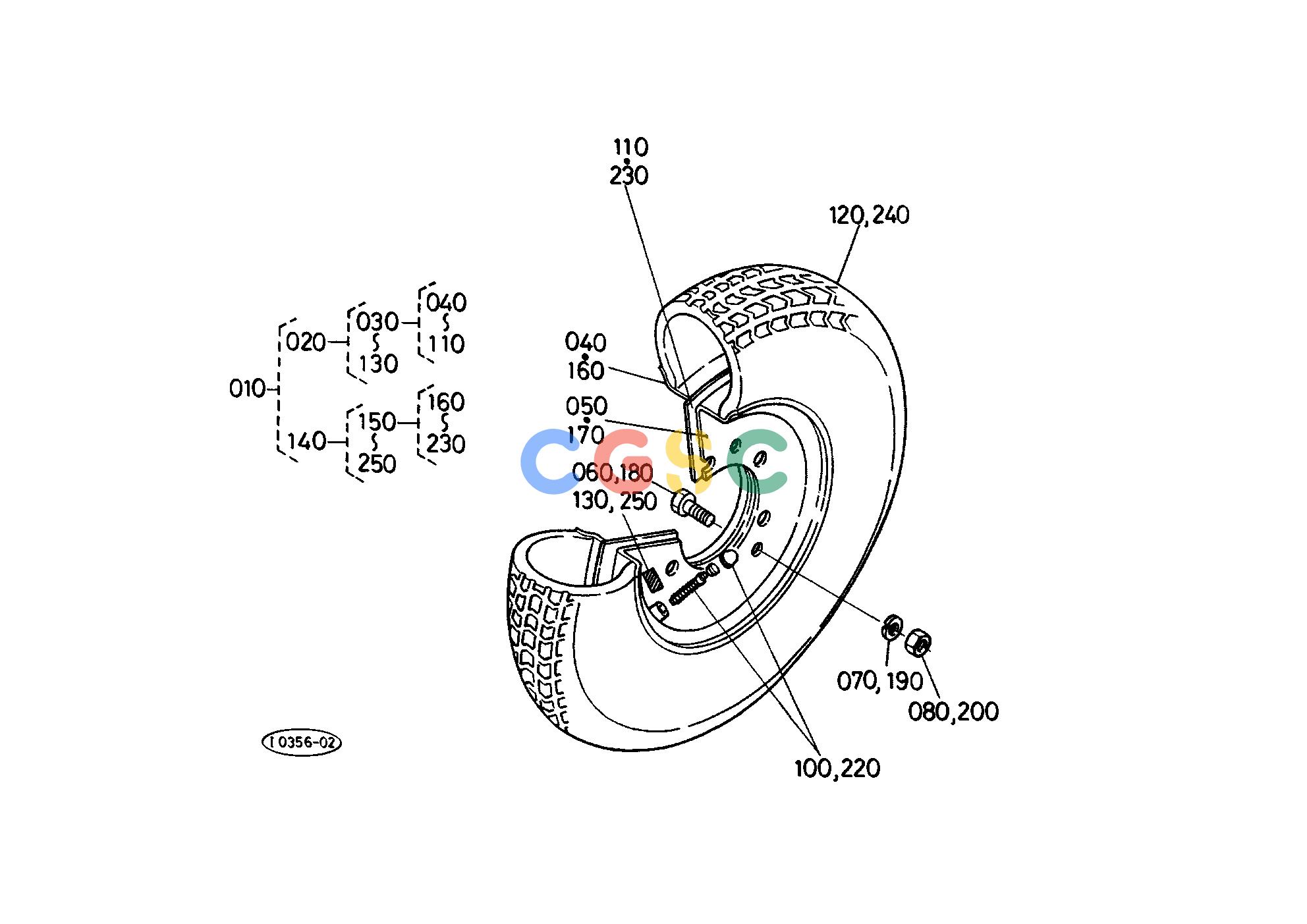

久保田零件查询T07600 FRONT WHEEL (20 X 8.00-10) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9601516002
|
[1] |
ASSY WHEEL
|
49.9400(lbs); 22.700
|
| 010. |
6701157110
|
[1] |
ASSY WHEEL
|
52.8000(lbs); 24.000
|
| 020. |
9601516012
|
[1] |
ASSY WHEEL LH
|
0.0000(lbs); 0.000
|
| 020. |
6701157120
|
[1] |
ASSY WHEEL LH
|
0.0000(lbs); 0.000
|
| 030. |
9601516102
|
[1] |
ASSY WHEEL
|
12.7600(lbs); 5.800
|
| 030. |
6701157130
|
[1] |
ASSY WHEEL
|
12.6280(lbs); 5.740
|
| 040. |
9601516110
|
[1] |
WHEEL INNER
|
5.7200(lbs); 2.600
|
| 050. |
9601516122
|
[1] |
WHEEL OUTER
|
6.6000(lbs); 3.000
|
| 060. |
0117351022
|
[6] |
BOLT
|
0.0418(lbs); 0.019
|
| 070. |
0451250100
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
0211850100
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 110. |
3415911860
|
[1] |
GASKET
|
0.1100(lbs); 0.050
|
| 120. |
3415911810
|
[1] |
TIRE
|
12.3200(lbs); 5.600
|
| 130. |
9601516140
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 130. |
6701157140
|
[1] |
LABEL LH
|
0.0000(lbs); 0.000
|
| 140. |
9601516022
|
[1] |
ASSY WHEEL RH
|
0.0000(lbs); 0.000
|
| 140. |
6701157150
|
[1] |
ASSY WHEEL RH
|
0.0000(lbs); 0.000
|
| 150. |
9601516102
|
[1] |
ASSY WHEEL
|
12.7600(lbs); 5.800
|
| 150. |
6701157130
|
[1] |
ASSY WHEEL
|
12.6280(lbs); 5.740
|
| 160. |
9601516110
|
[1] |
WHEEL INNER
|
5.7200(lbs); 2.600
|
| 170. |
9601516122
|
[1] |
WHEEL OUTER
|
6.6000(lbs); 3.000
|
| 180. |
0117351022
|
[6] |
BOLT
|
0.0418(lbs); 0.019
|
| 190. |
0451250100
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 200. |
0211850100
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 230. |
3415911860
|
[1] |
GASKET
|
0.1100(lbs); 0.050
|
| 240. |
3415911810
|
[1] |
TIRE
|
12.3200(lbs); 5.600
|
| 250. |
9601516150
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
| 250. |
6701157160
|
[1] |
LABEL RH
|
0.0000(lbs); 0.000
|
