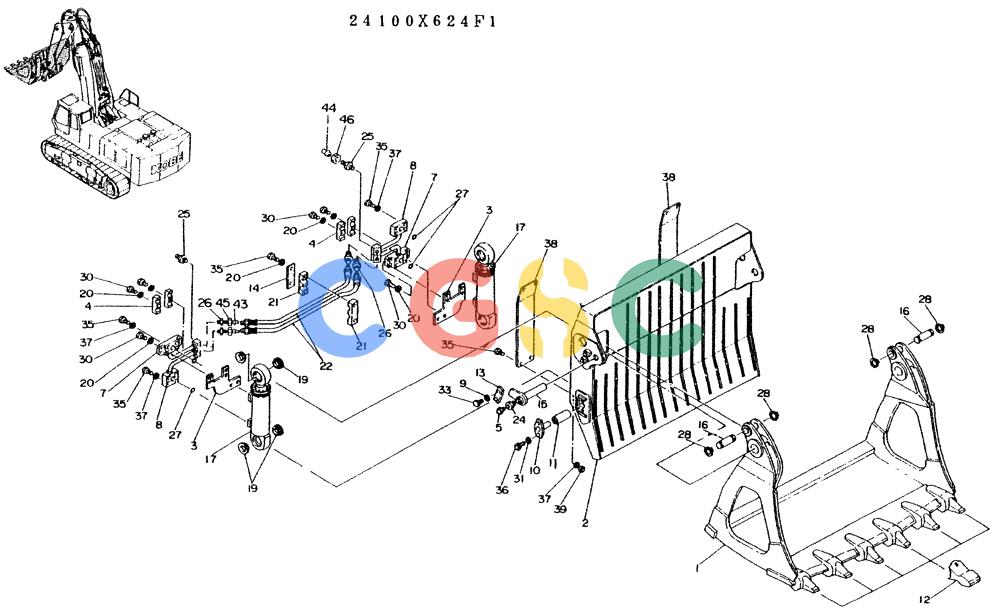

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-008) - BUCKET ASSY, P/N 24100X624F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
865 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X624F1 | [1] | BUCKET ASSY, CONSISTS OF REF 1 TO 39 | |
| 1. | 2412X171F1 | [1] | BUCKET, FR., CONSISTS OF REF 1-2 TO 1-4 | |
| 1-2. | 2412X171 | [1] | BUCKET, FR., CONSISTS OF REF 1-2B | |
| 1-2B. | B12K0013 | [6] | ADAPTER BUCKET, FR. | ADAPTER BUCKET, FR. |
| 1-3. | B05T0030 | [1] | BUSHING | |
| 1-4. | R16T0006D1 | [2] | SPACER | |
| 2. | 2412X172 | [1] | BUCKET | |
| 3. | 2416T3209 | [2] | BRACKET | |
| 4. | R16T0374D1 | [4] | CLAMP | KOB |
| 5. | 44Z1D10 | [7] | FITTING | KOB |
| 6. | 2414T673 | [2] | COVER | |
| 7. | 2418P2221 | [2] | LINE, TUBE | |
| 8. | 2418P2222 | [2] | LINE, TUBE | |
| 9. | ZW22X12000 | [20] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 10. | 2418P4G044 | [2] | FLANGE | |
| 11. | 2419T2014 | [2] | PIN | |
| 12. | B12K0014F2 | [6] | PIONT, TOOTH | |
| 13. | B16T0006 | [1] | PLATE | PLATE |
| 14. | B16T0430 | [2] | PLATE | |
| 15. | B19P0001 | [2] | PIN | |
| 16. | B19T0123 | [2] | PIN | PIN |
| 17. | B38K0033F1 | [2] | CYLINDER | |
| 18. | R16P0035D5 | [2] | CLAMP | |
| 19. | R16T0091 | [6] | SPACER | SPACER |
| 20. | ZW22K10000 | [22] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 21. | R16T0235 | [2] | CLAMP | |
| 22. | R18P0028D1 | [2] | HOSE | KOB |
| 24. | R20T0125 | [2] | PLUG | KOB |
| 25. | R44T0044D1 | [2] | CONNECTOR | |
| 26. | R44T0044D2 | [4] | ADAPTER | |
| 27. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 28. | ZR16X07000 | [4] | RING | KOB |
| 29. | ZS12C10020 | [8] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 30. | ZS11C10050 | [12] | CAPSCREW | |
| 31. | ZW22K16000 | [4] | LOCK WASHER | KOBID 16 x OD 24 x Th 3.5mm |
| 32. | ZS11C10090 | [2] | CAPSCREW | |
| 33. | ZS12C12030 | [12] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 34. | ZS11C12060 | [8] | CAPSCREW | |
| 35. | ZS23C12030 | [21] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 36. | ZS23C16020 | [4] | CAPSCREW | |
| 37. | ZW22K12000 | [24] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 38. | 2416T4741 | [2] | COVER | |
| 39. | ZN11C12007 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 40. | ZH21K06004 | [8] | CONNECTOR | CONNECTOR |
| 43. | ZF93S22000 | [4] | FERRULE | KOB |
| 44. | ZF93S28000 | [2] | FERRULE | KOB Superseded by part number: ZA93S28000 |
| 45. | ZF93N22000 | [4] | NUT | KOB |
| 46. | ZF93N28000 | [2] | TUBE NUT | KOB Superseded by part number: ZA93N28000 |
