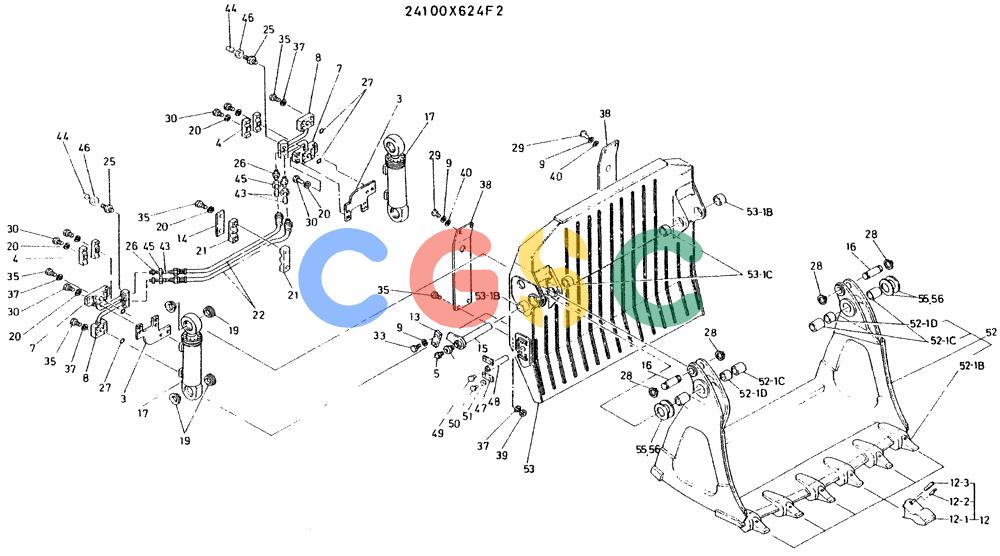

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-009) - BUCKET ASSY, ROCK P/N 24100X624F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
401 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X624F2 | [1] | BUCKET ASSY, CONSISTS OF REF 3 TO 56 | |
| 3. | 2416T3209 | [2] | BRACKET | |
| 4. | R16T0374D1 | [4] | CLAMP | KOB |
| 5. | 44Z1D10 | [6] | FITTING | KOB |
| 7. | 2418P2221 | [2] | LINES, TUBE | |
| 8. | 2418P2222 | [2] | LINES, TUBE | |
| 9. | ZW22X12000 | [12] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 12. | B12K0014F1 | [6] | TOOTH ASSY, CONSISTS OF REF 12-1 TO 12-3 | |
| 12-1. | B12K0014E1 | [1] | POINT | POINT |
| 12-2. | B12K0014E2 | [1] | PIN, LOCKING | PIN, LOCKING |
| 12-3. | B12K0014E3 | [1] | SHEAR BOLT | SHEAR BOLT |
| 13. | B16T0006 | [2] | PLATE | PLATE |
| 14. | B16T0430 | [2] | PLATE | |
| 15. | 2419P982 | [2] | PIN | |
| 16. | B19T0123 | [2] | PIN | PIN |
| 17. | B38K0033F2 | [2] | CYLINDER | |
| 19. | R16T0091 | [8] | SPACER | SPACER |
| 20. | ZW22X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 21. | R16T0235 | [2] | CLAMP | |
| 22. | ZX58N10150 | [2] | FLEXIBLE HOSE | KOBHOSE 1500mm Long (59-1/16 in) |
| 24. | R20T0125 | [2] | PLUG | KOB |
| 25. | R44T0044D1 | [2] | CONNECTOR | |
| 26. | R44T0044D2 | [4] | ADAPTER | |
| 27. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 28. | ZR16X07000 | [4] | RING | KOB |
| 29. | ZS12C12040 | [8] | CAPSCREW M12x1.75x40mm | CAPSCREW M12x1.75x40mm |
| 30. | ZS11C10050 | [12] | CAPSCREW | |
| 32. | ZS11C10090 | [2] | CAPSCREW | |
| 33. | ZS12C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 35. | ZS23C12030 | [16] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 37. | ZW22K12000 | [16] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 38. | 2416T4741 | [2] | COVER | |
| 40. | ZW11X12000 | [8] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 43. | ZF93S22000 | [4] | FERRULE | KOB |
| 44. | ZF93S28000 | [2] | FERRULE | KOB Superseded by part number: ZA93S28000 |
| 45. | ZF93N22000 | [4] | NUT | KOB |
| 46. | ZF93N28000 | [2] | TUBE NUT | KOB Superseded by part number: ZA93N28000 |
| 47. | 2418T5430 | [2] | PLATE | |
| 48. | 2419T2096 | [2] | PIN | |
| 49. | R20T0124 | [2] | PLUG | |
| 50. | ZS23C16030 | [4] | SCREW,Hex Socket Head, M16 x 30mm | KOBM16x2.0x30mm |
| 51. | ZW22X16000 | [4] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 52. | 2412T175F1 | [1] | BUCKET, FR. INCLUDE REF 52-1B TO 52-1D | BUCKET, FR. INCLUDE REF 52-1B TO 52-1D |
| 52-1B. | B12K0013 | [6] | ADAPTER (TOOTH) | ADAPTER (TOOTH) |
| 52-1C. | B05T0030 | [4] | BUSHING | |
| 52-1D. | R16T0006D1 | [2] | SPACER | |
| 53. | 2412T176F1 | [1] | BUCKET, RE.INCLUDE REF 53-1B & 53-1C | |
| 53-16. | 2405T709 | [2] | BUSHING | KOBBUSHING |
| 53-1C. | 2405T710 | [2] | BUSHING | |
| 55. | B16T0442D13 | [2] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 56. | B16T0442D15 | [2] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
