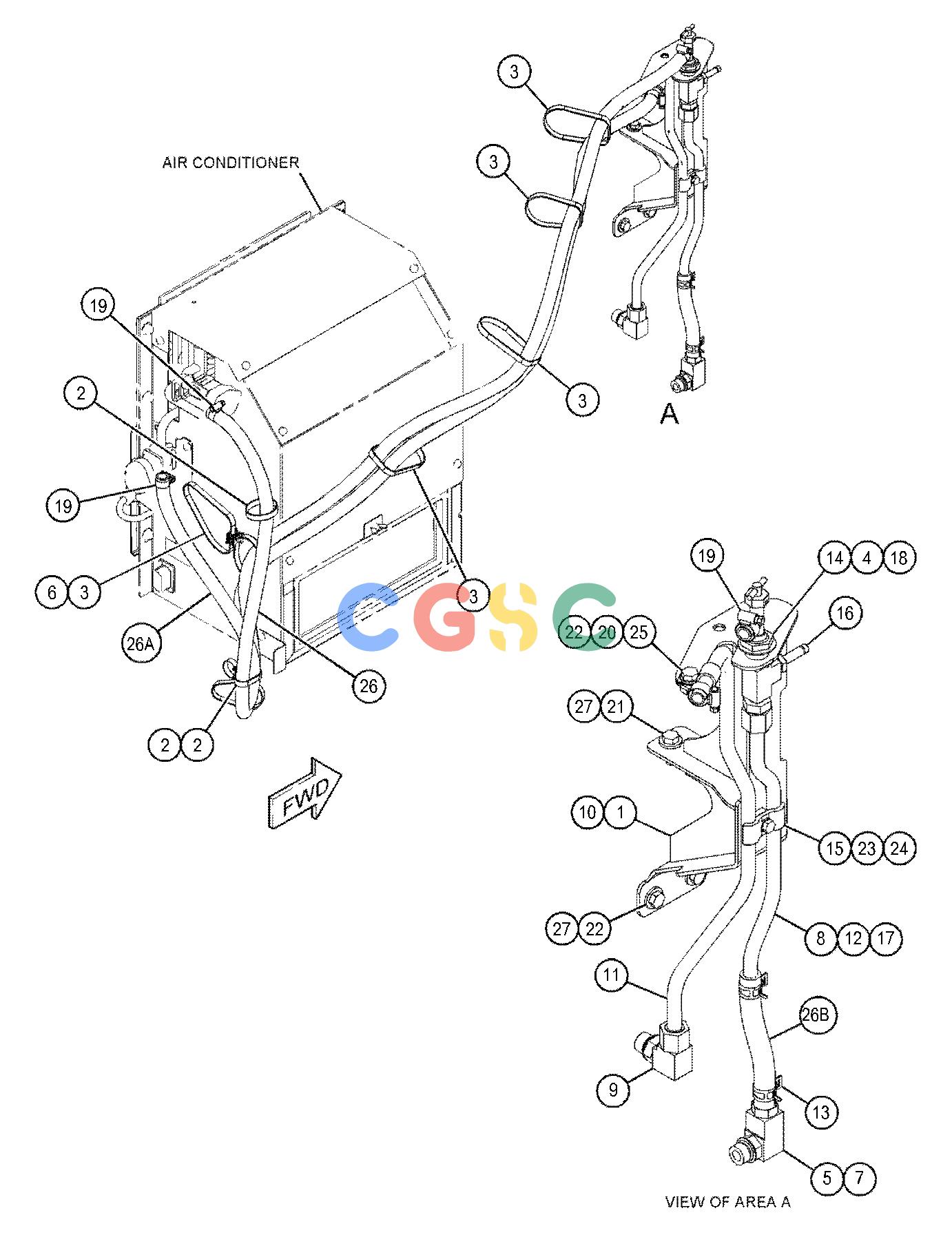

卡特零件查询（730C） 398-6110: LINES GP-HEATER
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [1] | STRAP-CABLE | |
| 2. | 6U-0455 | [3] | STRAP | |
| 3. | 6U-0456 | [7] | STRAP | |
| 4. | 8L-6005 | [1] | TEE-PIPE | |
| 5. | 185-8833 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 129-2327 | [1] | ELBOW | |
| 6. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 7. | 385-5775 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 131-2171 | [1] | CONNECTOR | |
| 8. | 398-6106 | [1] | TUBE AS | |
| 9. | 416-1014 | [1] | TUBE AS | |
| 10. | 519-2710 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 11. | 148-8390 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 12. | 150-7158 | [1] | CONNECTOR | |
| 13. | 235-9014 | [2] | CLAMP-SPRING | |
| 14. | 2M-1908 | [1] | FITTING-BULKHEAD | |
| 15. | 2P-4437 | [1] | CLAMP | |
| 16. | 347-4416 | [1] | ADAPTER | |
| 17. | 7J-9108 | [1] | SEAL-O-RING | |
| 18. | 8F-8151 | [1] | VALVE-SHUTOFF | |
| 19. | 8T-0154 | [4] | CLAMP-HOSE | |
| 20. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 22. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 24. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 9M-8406 | [1] | CLIP(LOOP) | |
| 26. | 415-6334E | | HOSE(254-CM) | |
| 26A. | 415-6334E | | HOSE(243-CM) | |
| 26B. | 415-6334E | | HOSE(19.5-CM) | |
| 27. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
