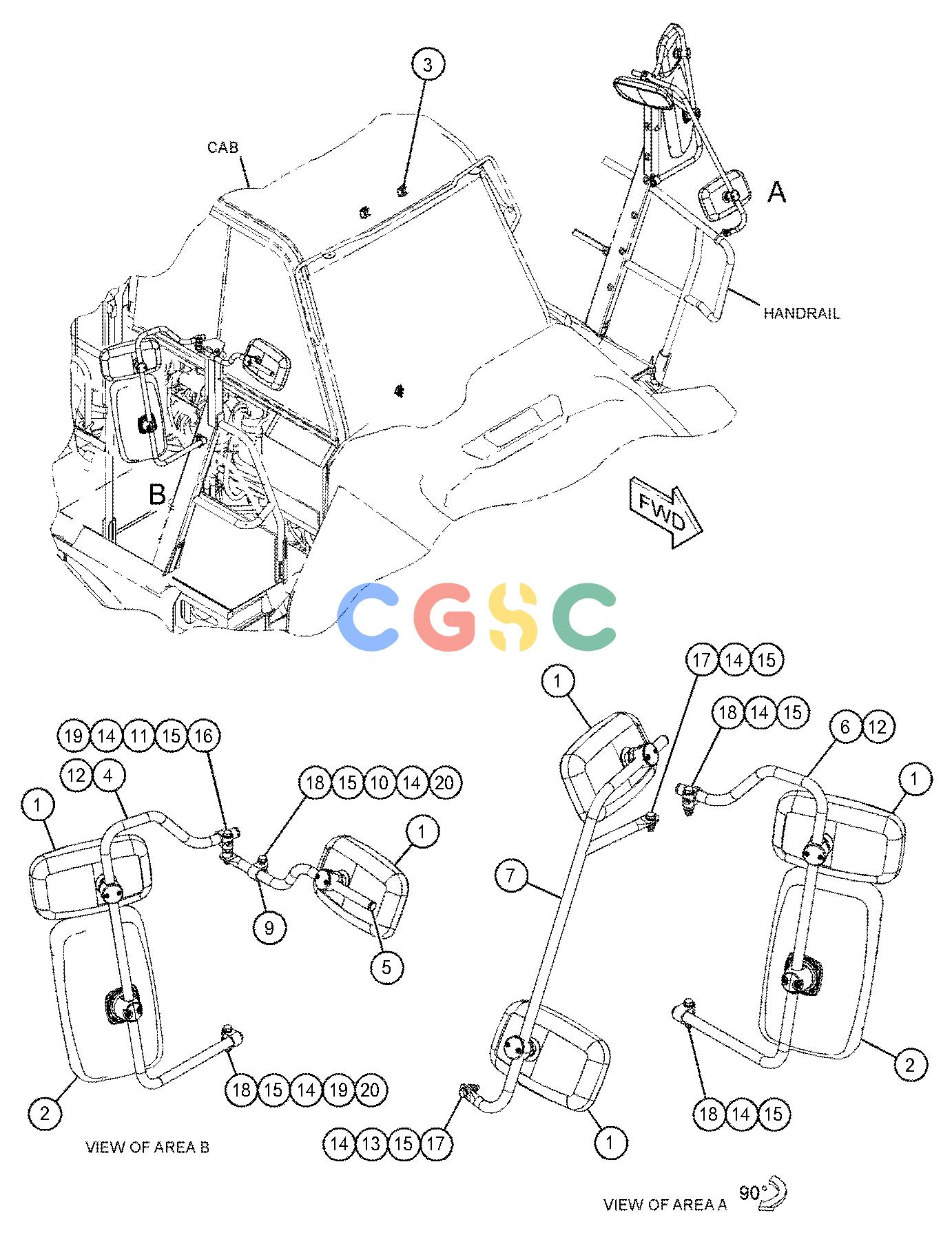

卡特零件查询（730C） 416-4354: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 220-4050 | [5] | MIRROR(EXTERIOR, REAR) | |
| 2. | 348-5709 | [2] | MIRROR AS | |
| 3. | 373-3677 | [1] | PLUG GP | |
| | 241-4505 | [1] | PLUG | |
| | 302-6392 | [2] | PLUG | |
| 4. | 434-0402 | [1] | BRACKET AS | |
| 5. | 434-0405 | [1] | BRACKET AS | |
| 6. | 434-0408 | [1] | BRACKET AS | |
| 7. | 434-0412 | [1] | BRACKET AS | |
| 9. | 446-7923 | [1] | SUPPORT | |
| 10. | 447-7503 | [1] | SPACER(10.5X15X13-MM THK) | |
| 11. | 225-9199 | [1] | SPACER(13.5X22X14-MM THK) | |
| 12. | 3B-4611 | [2] | PIN-COTTER | |
| 13. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-0389M | [7] | LOCKNUT(M10X1.5-THD) | |
| 15. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 17. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 18. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 19. | 455-2881 | [4] | PLATE | |
| 20. | 434-1191 | [4] | SUPPORT | |
| | M | | METRIC PART |
