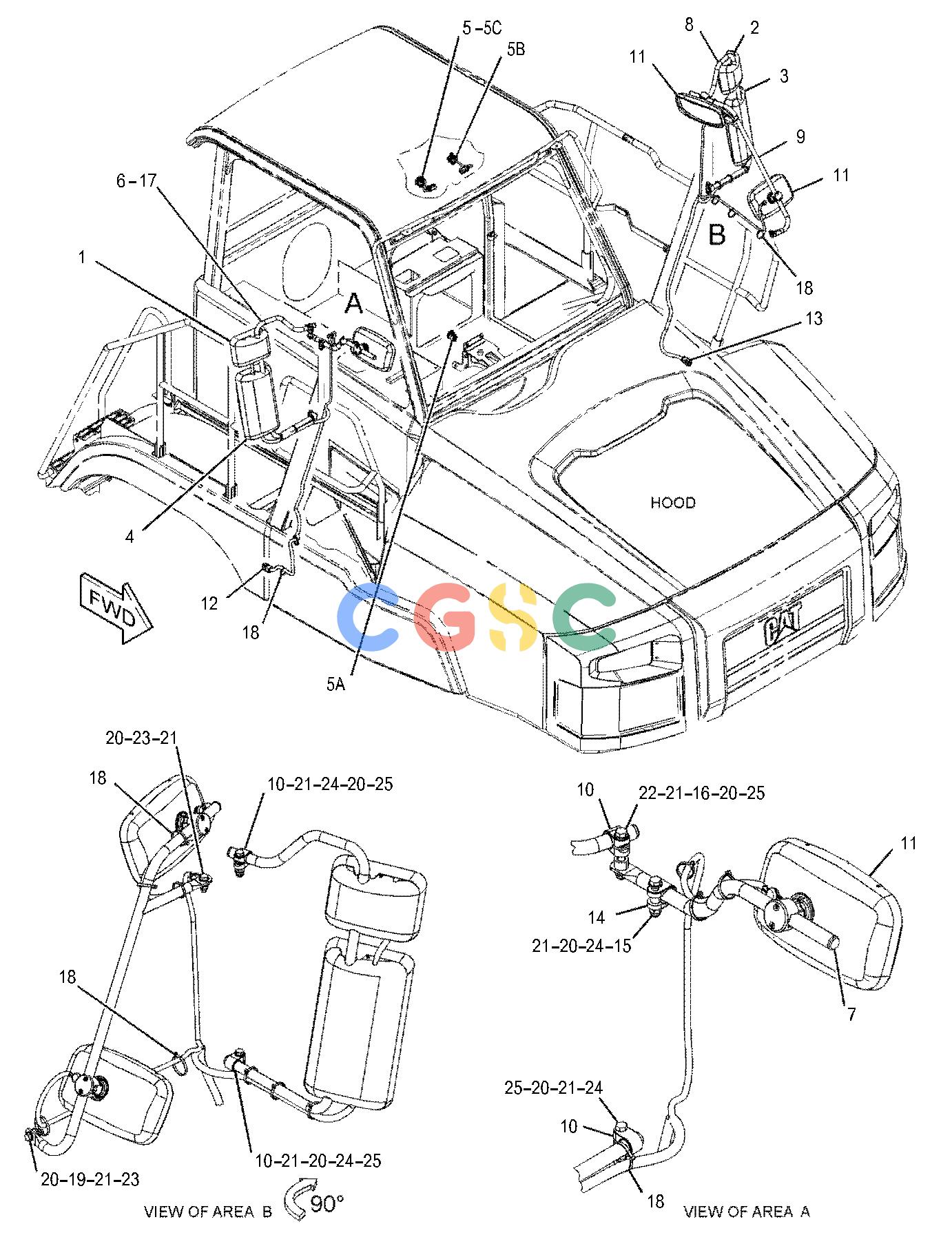

卡特零件查询（730C） 416-6926: MIRROR GP-REAR VIEW
广数供应链运营团队, 15 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 353-3585 | [1] | MIRROR-CONVEX(RH) | |
| 2. | 353-3587 | [1] | MIRROR-CONVEX(LH) | |
| 3. | 373-1753 | [1] | MIRROR-REAR VIEW(POWER, HEATED, LH) | |
| 4. | 373-1754 | [1] | MIRROR-REAR VIEW(POWER, HEATED, RH) | |
| 5. | 426-0406 | [1] | SWITCH GP-MIRROR(POWER, HEATED) | |
| 5A. | 271-2824 | [1] | SWITCH AS-ROCKER(HEATED MIRROR) | |
| 5B. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(LH) | |
| 5C. | 337-6640 | [1] | SWITCH AS-POSITION(MIRROR)(RH) | |
| | | | (EACH SWITCH AS-POSITION INCLUDES) |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 231-2300 | [1] | RECEPTACLE AS-CONNECTOR(8-PIN) | |
| 6. | 434-0402 | [1] | BRACKET AS | |
| 7. | 434-0405 | [1] | BRACKET AS | |
| 8. | 434-0408 | [1] | BRACKET AS | |
| 9. | 434-0412 | [1] | BRACKET AS | |
| 10. | 477-0722 | [4] | SUPPORT | |
| 11. | 435-8432 | [3] | MIRROR AS | |
| 12. | 437-4306Y | [1] | HARNESS AS-WIRING(MIRROR, RH) | |
| 13. | 437-4307Y | [1] | HARNESS AS-WIRING(MIRROR, LH) | |
| 14. | 475-7265 | [1] | SUPPORT | |
| 15. | 447-7503 | [1] | SPACER(10.5X15X13-MM THK) | |
| 16. | 225-9199 | [1] | SPACER(13.5X22X14-MM THK) | |
| 17. | 3B-4611 | [2] | PIN-COTTER | |
| 18. | 3S-2093 | [18] | STRAP-CABLE | |
| 19. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 20. | 8T-0389M | [7] | LOCKNUT(M10X1.5-THD) | |
| 21. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 23. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 24. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 25. | 455-2881 | [4] | PLATE | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
