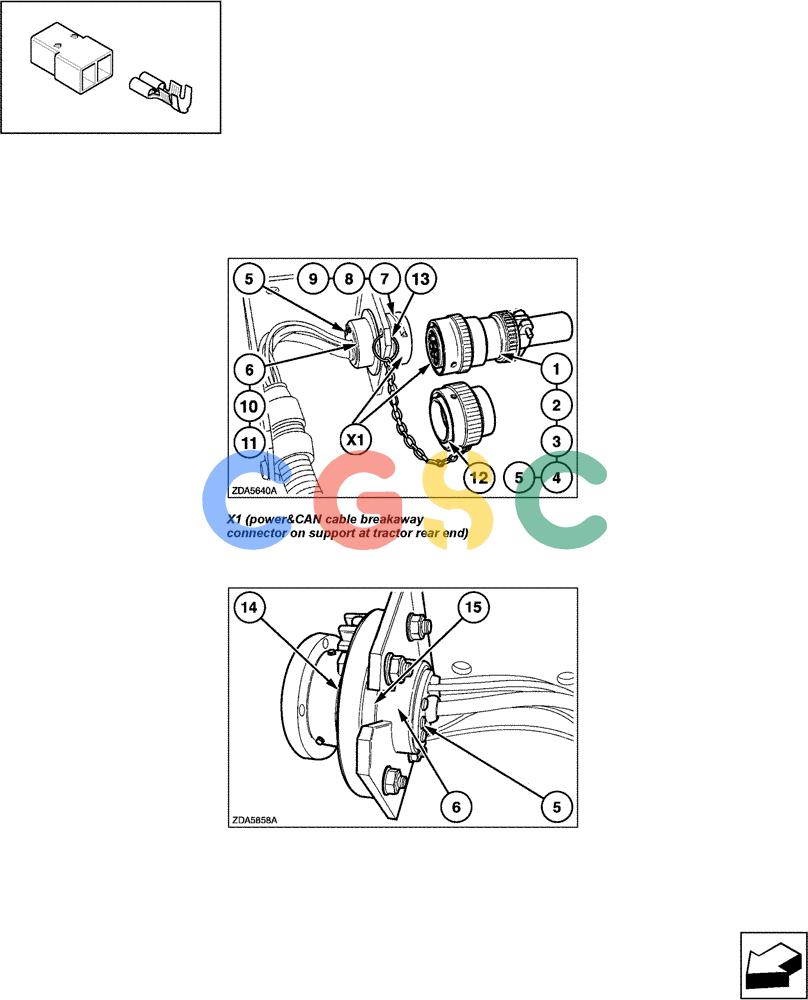

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (06.60[01]) - CONNECTORS: X1 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84074257
|
[1] |
CONTACT HOUSING,Female, 9 Pole
|
ZED
, Serial Range: -C263
|
| 1. |
84100277
|
[1] |
DUST CAP
|
ZED
, Serial Range: -C263
|
| 1. |
84441183
|
[1] |
DUST CAP
|
ZED
, Start Serial: D264
|
| 2. |
80900787
|
[1] |
TERMINAL
|
A
female #8 Superseded by part number: 900787
|
| 3. |
80900302
|
[1] |
TERMINAL
|
PA
female #12 Superseded by part number: 87697875
|
| 4. |
80900364
|
[1] |
TERMINAL CONNECTOR
|
A
female #16 Superseded by part number: 900364
|
| 5. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Superseded by part number: 87695652
|
| 6. |
84074256
|
[1] |
TERMINAL CONNECTOR,Male
|
ZED
Superseded by part number: 352506A1
|
| 7. |
80900786
|
[1] |
male #8
|
TERMINAL
|
| 8. |
80900316
|
[1] |
male #12
|
TERMINAL
|
| 9. |
80900363
|
[1] |
TERMINAL
|
ZED
male #12 Superseded by part number: 87695607
|
| 14. |
86606228
|
[1] |
COVER
|
ZED
|
| 15. |
84037188
|
[1] |
O-RING,3mm Thk x 34.2mm ID, 70 Duro
|
ZED
|
