神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-020) - BUCKET ASSY, P/N 24100N1167F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
212 次

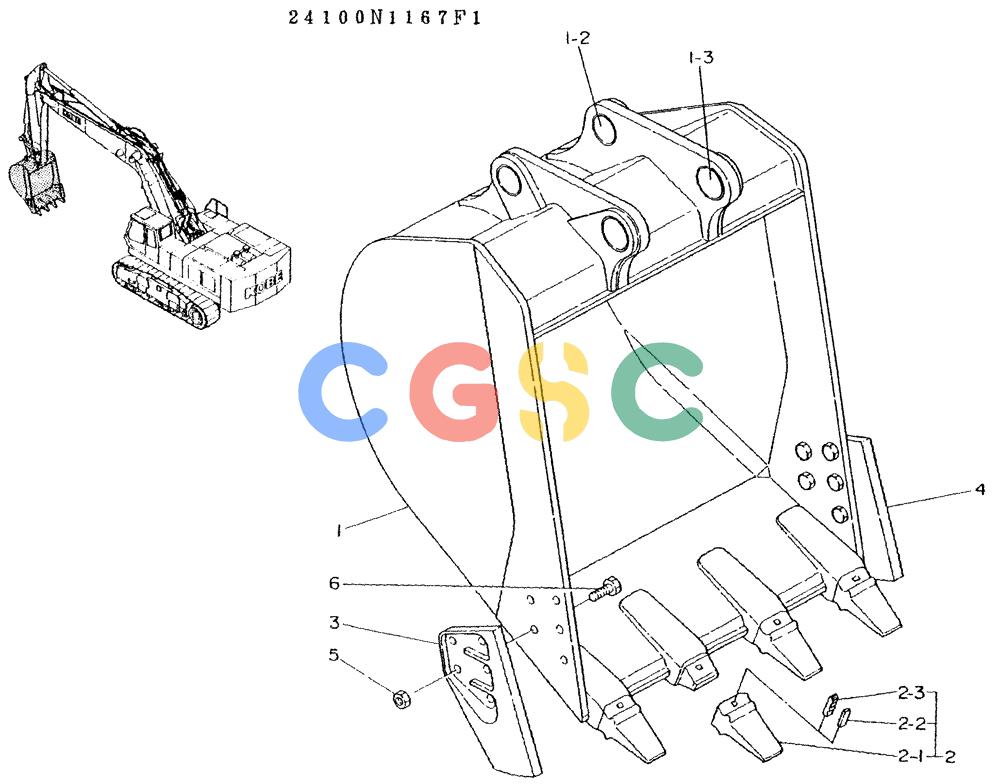

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1167F1 | [1] | BUCKET ASSY,CONSISTS OF ITEM 1 TO 6 | |
| 1. | 2412X181F1 | [1] | BUCKET, CONSISTS OF ITEM 1 -2 &1-3 | |
| 1-2. | 2405T704 | [2] | BUSHING | BUSHING |
| 1-3. | 2405T706 | [2] | BUSHING | |
| 2. | 2412U12F1 | [4] | TOOTH ASSY, CONSISTS OF ITEM 2-1 & 2-3 | |
| 2-1. | 2412U12E1 | [1] | POINT, TOOTH | |
| 2-2. | 2412U12E2 | [1] | PIN | PIN |
| 2-3. | 2412U12E5 | [1] | LOCK-PIN, RUBBER | |
| 3. | 2412P238D1 | [1] | CUTTER | KOB |
| 4. | 2412P238D2 | [1] | CUTTER | KOB |
| 5. | ZN13C30024 | [10] | NUT | KOB |
| 6. | ZS13C30085 | [10] | SCREW | KOBCAPSCREW M30x3.50x85mm |
