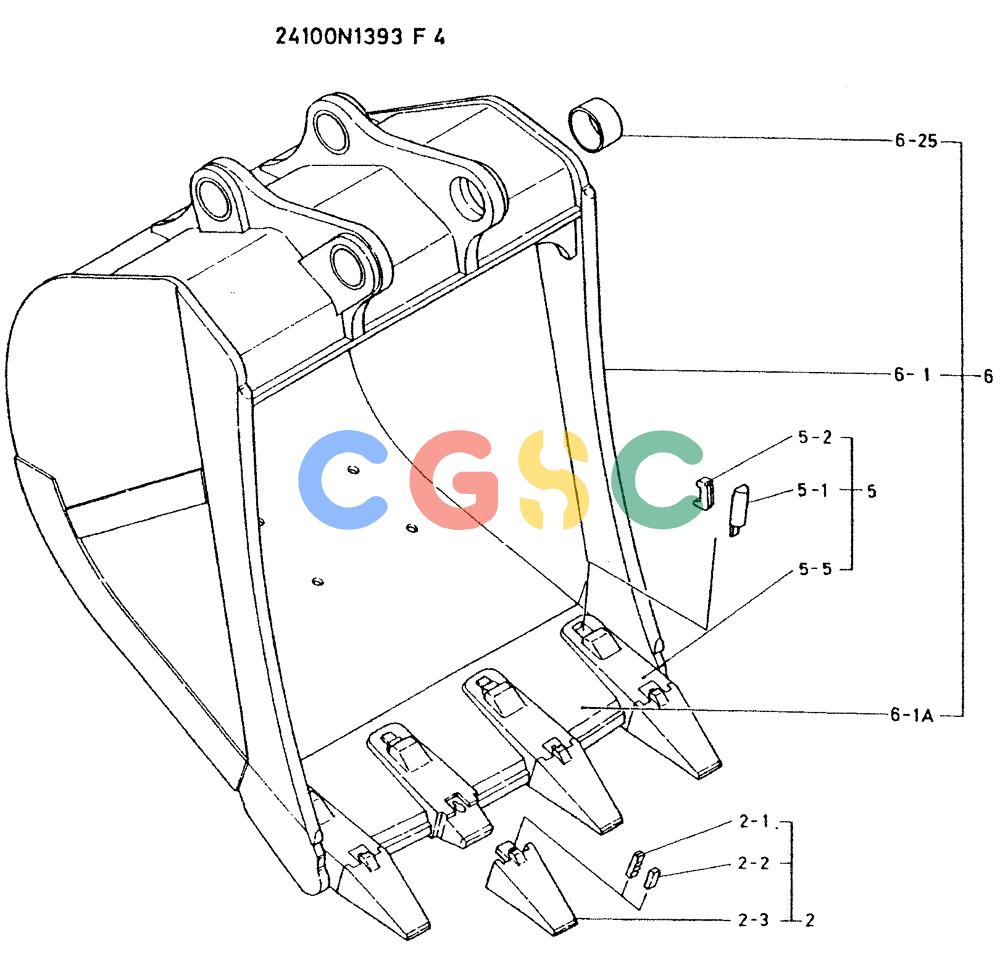

神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (09-024) - BUCKET ASSY, P/N 24100N1393F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1393F4 | [1] | BUCKET ASSY, CONSISTS OF ITEM 2 TO 6 | |
| 2. | 2412U28F1 | [4] | POINT ASSY, CONSISTS OF ITEM 2-1 TO 2-3 | |
| 2-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 2-2. | 2412U28S2 | [1] | SHEAR BOLT | SHEAR BOLT |
| 2-3. | 2412U28S3 | [1] | POINT | POINT |
| 5. | 2412U27F3 | [4] | ADAPTER ASSY, CONSISTS OF ITEM 5-1 TO 5-5 | |
| 5-1. | 2412R1D1 | [1] | WEDGE | WEDGE |
| 5-2. | 2412U27S2 | [1] | CLAMP | CLAMP |
| 5-5. | 2412U27S5 | [1] | ADAPTER | ADAPTER |
| 6. | 2412X249F1 | [1] | BUCKET, INCLUDE ITEM 6-1 TO 6-25 | |
| 6-1. | 2412X249 | [1] | BUCKET, INCLUDE ITEM 6-1A | |
| 6-1A. | 2412U26 | [1] | | |
| 6-25. | 2405T839 | [4] | BUSHING | KOB |
| . . | 2412R1D2 | [1] | WEDGE (OVER SIZE) | WEDGE (OVER SIZE) |
