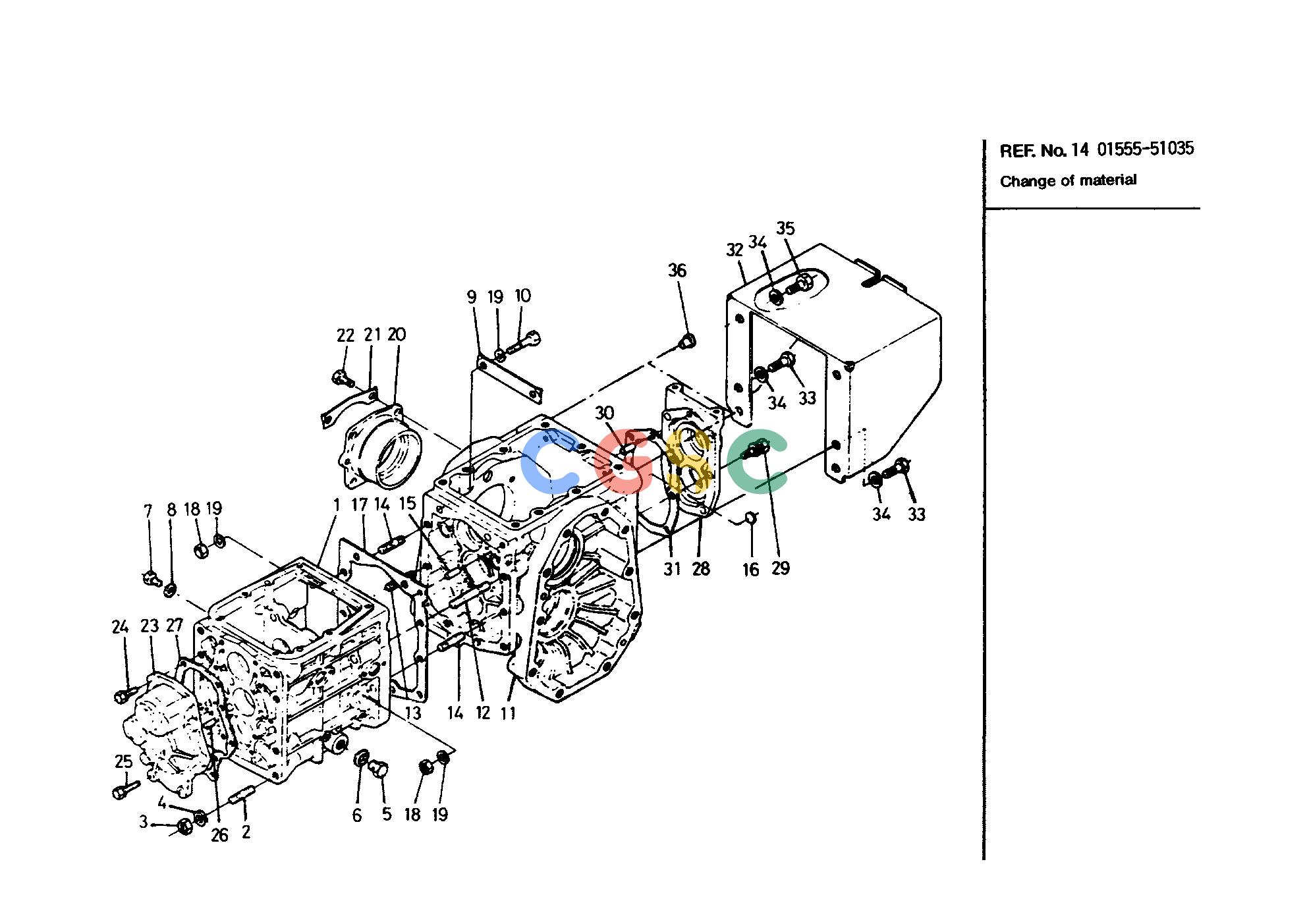

久保田零件查询T02400 TRANSMISSION CASE GROUP TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6662111110
|
[1] |
CASE TRANSMISSION
|
6.6000(lbs); 3.000
|
| 002. |
0155151022
|
[8] |
STUD
|
0.0000(lbs); 0.000
|
| 003. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 004. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 005. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 006. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 007. |
0105050612
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 008. |
0471700600
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 009. |
6662111120
|
[1] |
PLATE LOCK
|
0.0264(lbs); 0.012
|
| 010. |
0115351055
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
| 011. |
6662111130
|
[1] |
CASE DIFFERENTIAL
|
11.0000(lbs); 5.000
|
| 012. |
0155251075
|
[1] |
STUD
|
0.1166(lbs); 0.053
|
| 013. |
0155251085
|
[1] |
STUD
|
0.0000(lbs); 0.000
|
| 014. |
0155251035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 014. |
0155551035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 015. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 016. |
0631175012
|
[2] |
PLUG EXPANSION
|
0.0044(lbs); 0.002
|
| 017. |
6662111140
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 018. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 019. |
0451250100
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 020. |
6662111250
|
[1] |
HOLDER DIFF BEARING
|
1.5796(lbs); 0.718
|
| 021. |
6662111260
|
[2] |
PLATE LOCK
|
0.0132(lbs); 0.006
|
| 022. |
0115050820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 023. |
6662112110
|
[1] |
COVER 1 SHAFT
|
0.6776(lbs); 0.308
|
| 024. |
0112050825
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 025. |
0112050832
|
[5] |
BOLT
|
0.0352(lbs); 0.016
|
| 026. |
0501200816
|
[1] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 027. |
6662112120
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 028. |
6649412210
|
[1] |
COVER REAR
|
2.7940(lbs); 1.270
|
| 029. |
0112050832
|
[6] |
BOLT
|
0.0352(lbs); 0.016
|
| 030. |
0501200816
|
[1] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 031. |
6662112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 032. |
6649411210
|
[1] |
COVER P.T.O
|
3.5200(lbs); 1.600
|
| 033. |
0115351235
|
[4] |
BOLT
|
0.0858(lbs); 0.039
|
| 034. |
0451250120
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 035. |
0115351225
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 036. |
6661117450
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
