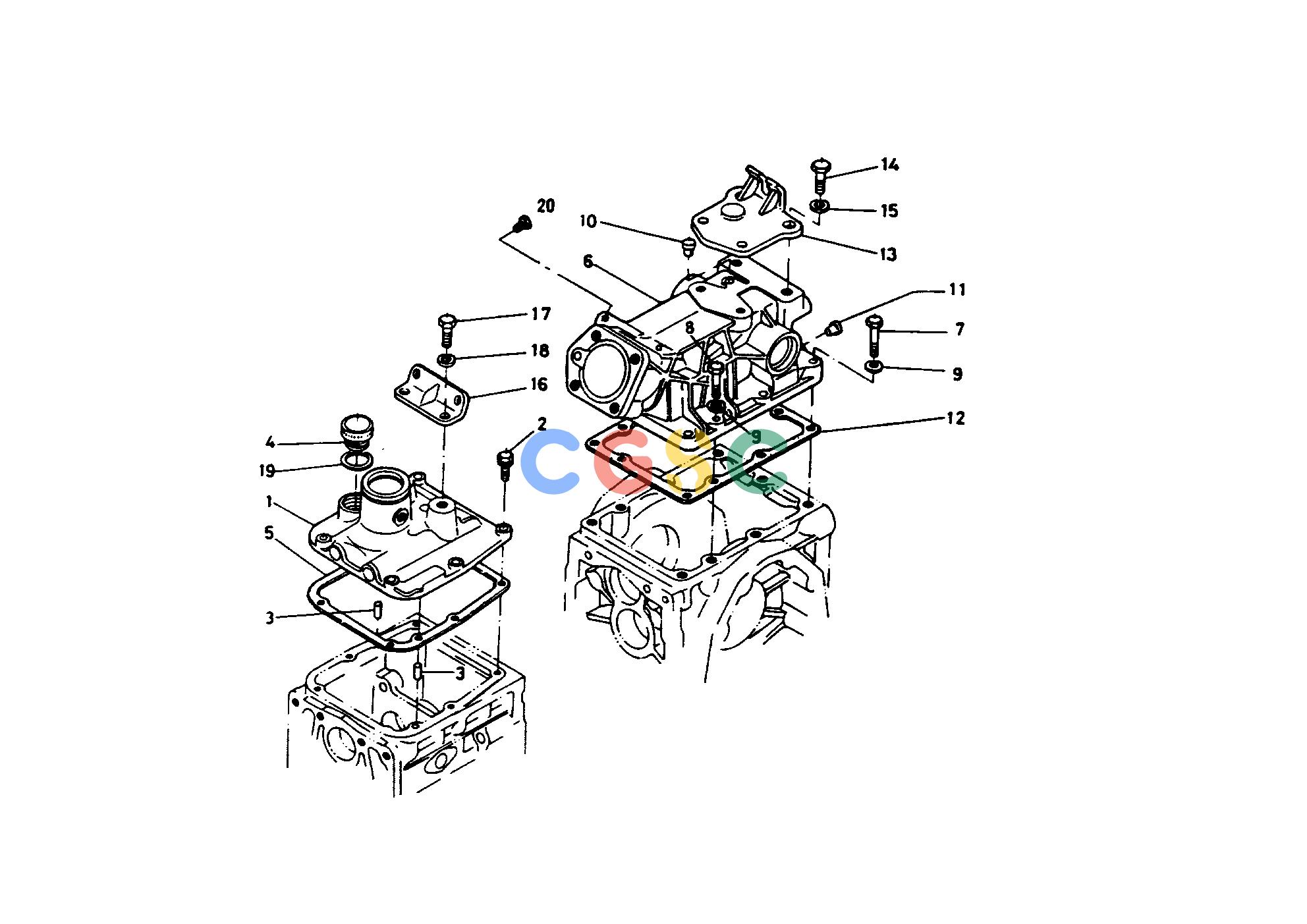

久保田零件查询T02500 CASE COVER GROUP TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6662112312
|
[1] |
COVER CASE FRONT
|
1.6280(lbs); 0.740
|
| 002. |
0112050830
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 003. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 004. |
6659111460
|
[1] |
CAP
|
0.0352(lbs); 0.016
|
| 005. |
6662112320
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 006. |
6661112510
|
[1] |
COVER CASE REAR
|
8.4260(lbs); 3.830
|
| 007. |
0115351040
|
[3] |
BOLT
|
0.0660(lbs); 0.030
|
| 008. |
0115351035
|
[6] |
BOLT
|
0.0550(lbs); 0.025
|
| 009. |
0451250100
|
[9] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 010. |
6659111350
|
[1] |
BREATHER
|
0.0044(lbs); 0.002
|
| 011. |
6659111290
|
[2] |
PLUG 2
|
0.0022(lbs); 0.001
|
| 011. |
6711111140
|
[2] |
PLUG 2
|
0.0000(lbs); 0.000
|
| 012. |
6661112520
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 013. |
6661111910
|
[1] |
BRACKET CHAIN
|
1.2540(lbs); 0.570
|
| 014. |
0115551230
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 015. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 016. |
6662112550
|
[1] |
STAY
|
2.1560(lbs); 0.980
|
| 017. |
0115051020
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 018. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 019. |
0471100400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 019. |
0471300400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 020. |
6659154390
|
[2] |
PLUG 3
|
0.0022(lbs); 0.001
|
