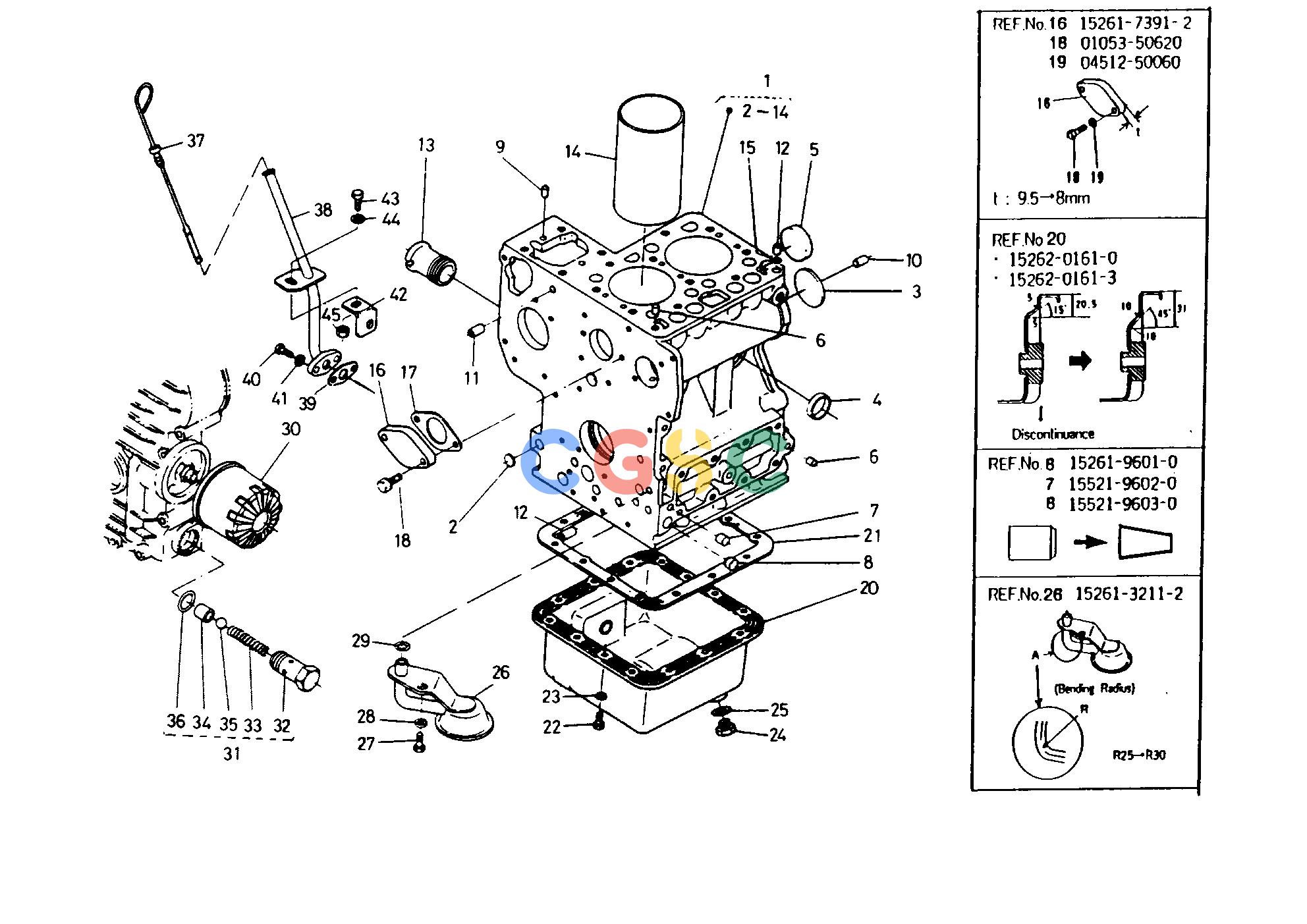

久保田零件查询T00100 CRANKCASE GROUP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1526101010
|
[1] |
ASSY CRANKCASE
|
0.0000(lbs); 0.000
|
| 002. |
0631175015
|
[3] |
PLUG EXPANSION
|
0.0044(lbs); 0.002
|
| 003. |
0631175040
|
[1] |
PLUG EXPANSION
|
0.0440(lbs); 0.020
|
| 004. |
1532196260
|
[3] |
CAP SEALING
|
0.0308(lbs); 0.014
|
| 005. |
1522103490
|
[1] |
CAP SEALING
|
0.0440(lbs); 0.020
|
| 006. |
1430133610
|
[5] |
PLUG
|
0.0022(lbs); 0.001
|
| 006. |
1526196010
|
[5] |
PLUG
|
0.0044(lbs); 0.002
|
| 007. |
1430133630
|
[3] |
PLUG
|
0.0022(lbs); 0.001
|
| 007. |
1552196020
|
[3] |
PLUG
|
0.0066(lbs); 0.003
|
| 008. |
1522133640
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 008. |
1552196030
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 009. |
0501200609
|
[2] |
PIN STRAIGHT
|
0.0066(lbs); 0.003
|
| 010. |
0501200814
|
[2] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 011. |
1522133650
|
[1] |
PIN PIPE
|
0.0088(lbs); 0.004
|
| 012. |
1523133960
|
[2] |
PIN PIPE
|
0.0022(lbs); 0.001
|
| 013. |
1526172880
|
[1] |
PIPE WATER
|
0.1540(lbs); 0.070
|
| 014. |
1526102310
|
[2] |
LINER CYLINDER
|
0.8272(lbs); 0.376
|
| 015. |
1522133700
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 016. |
1526173910
|
[1] |
COVER WATER
|
0.2860(lbs); 0.130
|
| 016. |
1526173912
|
[1] |
COVER WATER
|
0.0000(lbs); 0.000
|
| 017. |
1526173920
|
[1] |
GASKET WATER COVER
|
0.0000(lbs); 0.000
|
| 018. |
0105350620
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 018. |
0102350618
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 019. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 020. |
1526201610
|
[1] |
OIL PAN
|
2.4640(lbs); 1.120
|
| 020. |
1526201613
|
[1] |
OIL PAN
|
0.0000(lbs); 0.000
|
| 021. |
1526101520
|
[1] |
GASKET OIL PAN
|
0.0000(lbs); 0.000
|
| 022. |
1538191090
|
[14] |
BOLT
|
0.0000(lbs); 0.000
|
| 023. |
0451250060
|
[14] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 024. |
1522133750
|
[1] |
PLUG
|
0.0704(lbs); 0.032
|
| 025. |
1510933660
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 026. |
1526132110
|
[1] |
FILTER OIL
|
0.3080(lbs); 0.140
|
| 026. |
1526132112
|
[1] |
FILTER OIL
|
0.0000(lbs); 0.000
|
| 027. |
0115350816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 028. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 029. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
1524132090
|
[1] |
CARTRIDGE OIL FILTER
|
0.7700(lbs); 0.350
|
| 030. |
HH15032094
|
[1] |
CARTRIDGE OIL FILTER
|
0.6600(lbs); 0.300
|
| 031. |
1526136070
|
[1] |
ASSY VALVE RELIEF
|
0.1716(lbs); 0.078
|
| 035. |
0771503213
|
[1] |
BALL
|
0.0088(lbs); 0.004
|
| 036. |
0481000150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 037. |
1526136410
|
[1] |
GAUGE OIL
|
0.0682(lbs); 0.031
|
| 038. |
1526236420
|
[1] |
GUIDE OIL GAUGE
|
0.3850(lbs); 0.175
|
| 039. |
1526136430
|
[1] |
GASKET OIL GAUGE
|
0.0000(lbs); 0.000
|
| 040. |
0105350618
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 041. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 042. |
1526236440
|
[1] |
SUPPORT
|
0.0792(lbs); 0.036
|
| 043. |
0115350820
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 043. |
0115050820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 044. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 045. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 045. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
