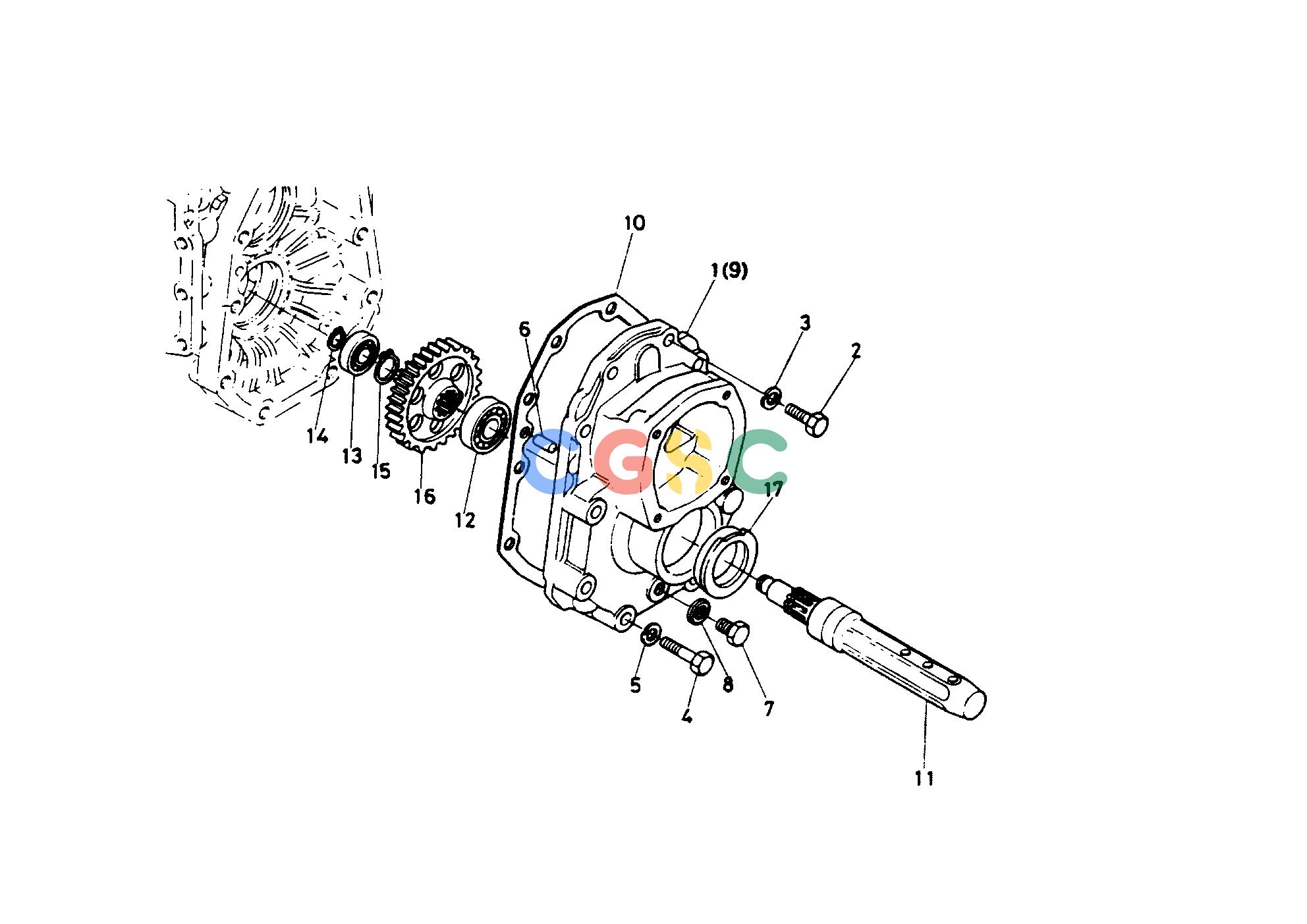

久保田零件查询T02600 AXLE CASE GROUP TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6681112610
|
[1] |
CASE AXLE LH
|
4.4000(lbs); 2.000
|
| 001. |
H668112610
|
[1] |
CASE AXLE LH
|
4.4000(lbs); 2.000
|
| 002. |
0115351035
|
[8] |
BOLT
|
0.0550(lbs); 0.025
|
| 003. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 004. |
0115351265
|
[12] |
BOLT
|
0.1430(lbs); 0.065
|
| 005. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 006. |
0501200816
|
[4] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 007. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 008. |
0471701200
|
[2] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 009. |
6681112620
|
[1] |
CASE AXLE RH
|
7.0400(lbs); 3.200
|
| 010. |
6662112630
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 011. |
6662117113
|
[2] |
AXLE REAR
|
10.8900(lbs); 4.950
|
| 011. |
H666017110
|
[2] |
AXLE REAR
|
10.8900(lbs); 4.950
|
| 012. |
0810106208
|
[2] |
BEARING BALL(6208)
|
0.7810(lbs); 0.355
|
| 013. |
0810106206
|
[2] |
BEARING BALL(6206)
|
0.4290(lbs); 0.195
|
| 014. |
0461200300
|
[2] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 015. |
0461200400
|
[2] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 016. |
6649417120
|
[2] |
GEAR SPUR 52
|
3.6960(lbs); 1.680
|
| 017. |
6691117810
|
[2] |
SEAL OIL
|
0.1276(lbs); 0.058
|
