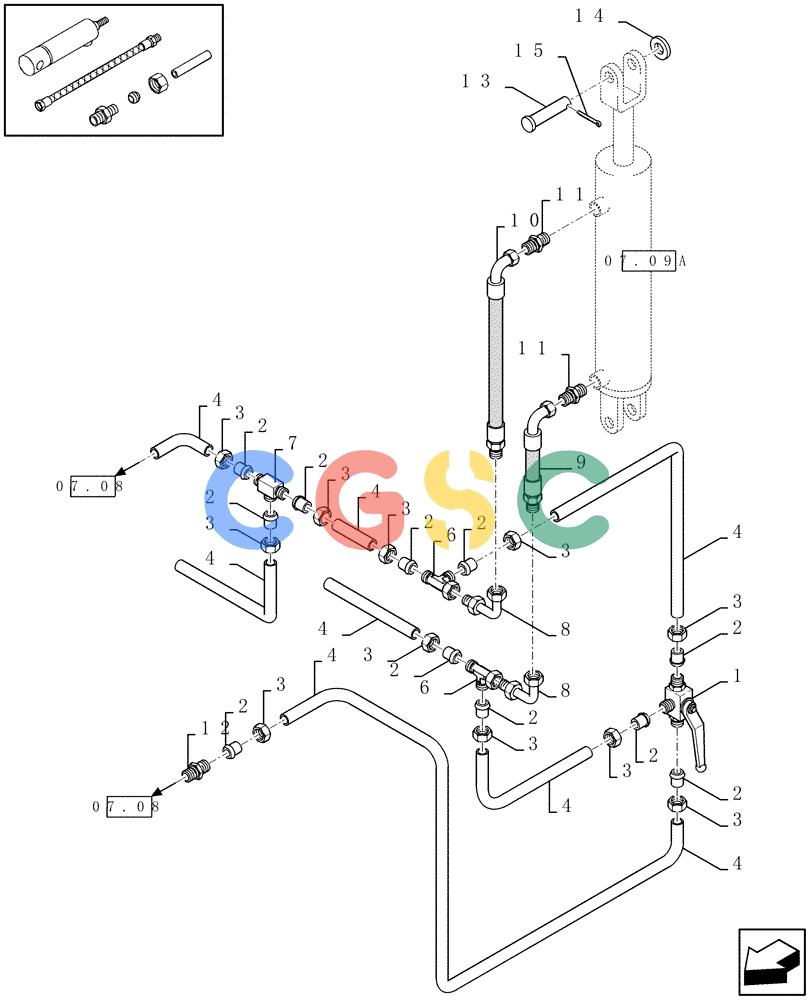

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (07.09[01]) - DENSITY PRESSER SYSTEM, REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84100885
|
[1] |
DRAINCOCK/TAP SUPPLY
|
ZED
|
| 2. |
80335136
|
[1] |
FERRULE
|
ZED
8MM Superseded by part number: 335136
|
| 3. |
80335135
|
[1] |
NUT
|
ZED
M8 Superseded by part number: 335135
|
| 4. |
80371540
|
[1] |
RIGID TUBE
|
ZED
D=8MM,L=2M Superseded by part number: 371540
|
| 5. |
80100065
|
[1] |
NUT
|
ZED
|
| 6. |
84064562
|
[2] |
HYD CONNECTOR
|
ZED
|
| 7. |
80379430
|
[1] |
3 WAY CONNECTION
|
ZED
Superseded by part number: 379430
|
| 8. |
80418283
|
[4] |
ELBOW
|
ZED
Superseded by part number: 418283
|
| 9. |
84078517
|
[2] |
FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1
|
ZED
|
| 10. |
84064567
|
[2] |
FLEXIBLE HOSE
|
ZED
|
| 11. |
84043514
|
[4] |
HYD CONNECTOR
|
ZED
|
| 12. |
80335172
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 335172
|
| 13. |
89837630
|
[4] |
SHAFT
|
ZED
Superseded by part number: 87346867
|
| 14. |
80378248
|
[4] |
WASHER
|
ZED
25MM Superseded by part number: 378248
|
| 15. |
80130011
|
[4] |
COTTER PIN
|
ZED
Superseded by part number: 130011
|
