神钢零件查询(K935) - EXCAVATOR BTW L70106 - L70166, LU0067 (1/76-12/03) (10-007) - GUARD ASSY. CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
157 次

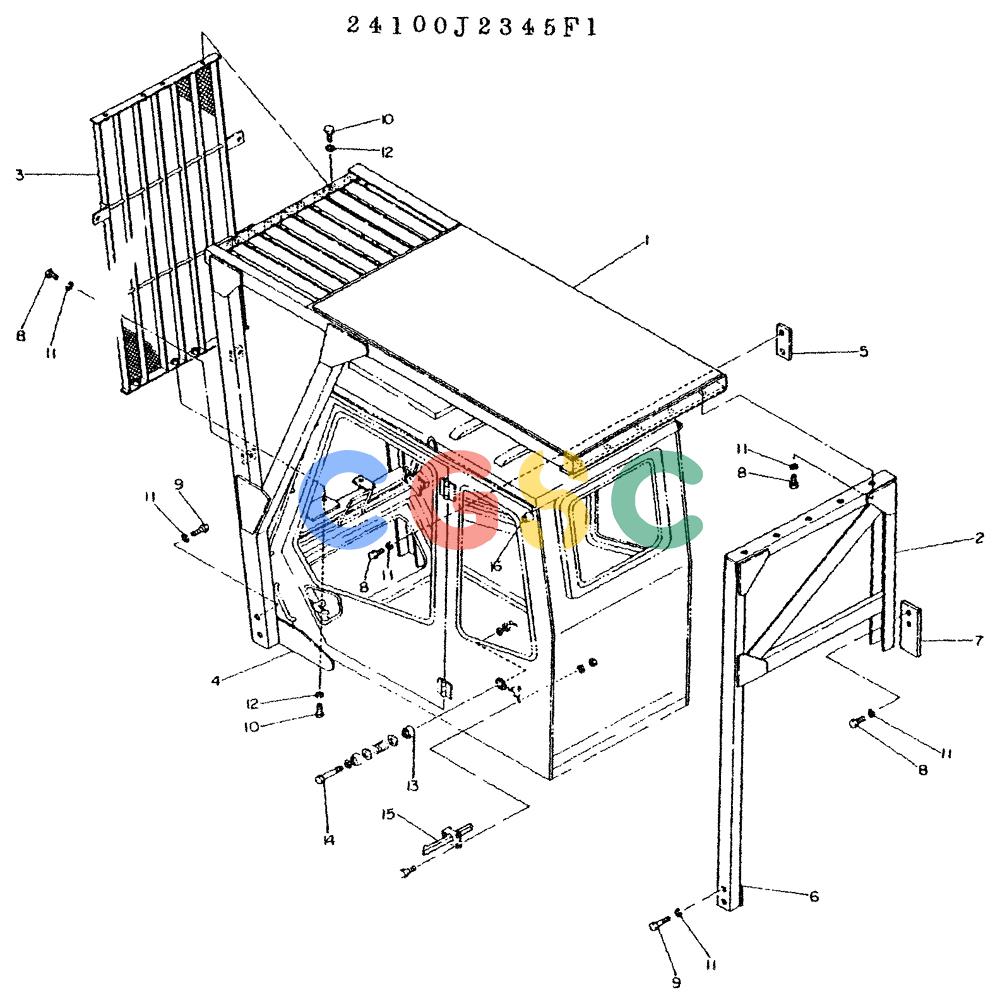

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2345F1 | [1] | GUARD ASSY, CAB,CONSISTS OF REF 1 TO 16 | |
| 1. | 2414X228 | [1] | GUARD, CAB | |
| 2. | 2416J458 | [1] | STAY | |
| 3. | 2414N1057 | [1] | GRID | |
| 4. | 2418T5744 | [1] | PLATE | |
| 5. | 2416T5743 | [1] | BLOCK,TAPPED | |
| 6. | 2416T5742 | [1] | BLOCK,TAPPED | |
| 7. | 2416T5744 | [1] | BLOCK,TAPPED | |
| 8. | ZS12C20035 | [13] | CAPSCREW -- M20x2.50x35mm | |
| 9. | ZS12C20070 | [4] | SCREW,Hex, M20 x 70mm | KOBM20x2.50x70mm |
| 10. | ZS12C16045 | [8] | SCREW,Hex, M16 x 45mm | KOBM16x2.0x45mm Superseded by part number: ZS13C16045 |
| 11. | ZW22X20000 | [17] | LOCK WASHER | KOBID 20 x OD 33.8 x Th 5.1mm |
| 12. | ZW22X16000 | [8] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 13. | 2418T5811 | [1] | SPACER | |
| 14. | 2420T3327 | [1] | CAPSCREW | |
| 15. | 2418T5810 | [1] | PLATE | |
| 16. | 2416T5820 | [1] | BLOCK,TAPPED | |
