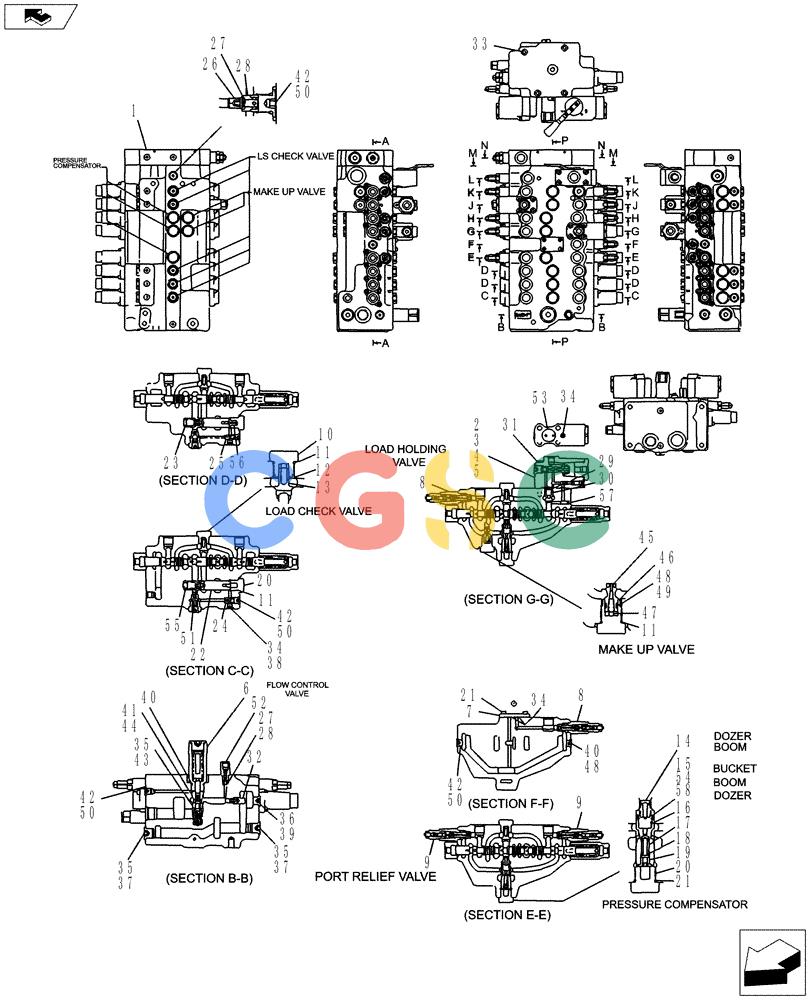

| 1. | YT30V00047F4 | [1] | MAIN DISTRIBUTOR | KOBValve Assy., Control Superseded by part number: YT30V00047F5 |
| 2. | YT30V00048F1 | [2] | VALVE | KOBControl |
| 3. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB |
| 4. | ZS23C08060 | [4] | SCREW,Hex Socket Head, M8 x 60mm | KOBCap |
| 5. | 2436U1514S38 | [1] | O-RING | KOB |
| 6. | YT30V00051F1 | [1] | VALVE | KOBControl, Flow |
| 7. | YT30V00039S019 | [1] | FLANGE | KOB |
| 8. | YT22V00016F1 | [8] | VALVE, PRESSURE RELI | KOBEF |
| 9. | YT22V00016F2 | [2] | VALVE, PRESSURE RELI | KOBEF |
| 10. | YT30V00039S023 | [8] | CAP | KOB |
| 11. | YT30V00039S024 | [18] | O-RING | KOB |
| 12. | 2436U2716S20 | [8] | SPRING | KOB |
| 13. | YT30V00039S026 | [8] | CHECK CONTROL | KOBPoppet |
| 14. | YT30V00039S027 | [2] | PLUG | KOB |
| 15. | YT30V00039S028 | [1] | SPOOL | KOB |
| 16. | YT30V00039S029 | [3] | SPRING | KOB |
| 17. | YT30V00039S030 | [3] | CHECK CONTROL | KOBPoppet |
| 18. | YT30V00039S031 | [3] | SPRING | KOB |
| 19. | YT30V00039S032 | [3] | CAP | KOB |
| 20. | YT30V00039S033 | [8] | CAP | KOB |
| 21. | YT30V00039S034 | [4] | CAPTIVE WASHER SCREW | KOBCap |
| 22. | YT30V00039S035 | [5] | SPOOL | KOB |
| 23. | YT30V00039S037 | [3] | SPRING | KOB |
| 24. | YT30V00039S038 | [1] | PLUG | KOBAssy. |
| 25. | YT30V00039S039 | [2] | PLUG | KOBAssy. |
| 26. | YT30V00039S041 | [1] | PLUG | KOB |
| 27. | YT30V00039S042 | [2] | FILTER | KOB |
| 28. | YT30V00039S043 | [2] | GUIDE | KOBCover |
| 29. | YT30V00039S044 | [2] | SPRING | KOB |
| 30. | YT30V00039S045 | [2] | POPPET | KOB |
| 32. | YT30V00039S048 | [1] | PLUG | KOB |
| 33. | ZS23C10050 | [4] | SCREW,Hex Socket Head, M10 x 50mm | KOBCap |
| 35. | ZD12P01800 | [27] | O-RING | KOB |
| 36. | ZD12P01400 | [1] | O-RING | KOB |
| 37. | YT30V00042S022 | [6] | CAP | KOB |
| 38. | 2436U1309S29 | [11] | CAP | KOB |
| 39. | 2437U283S42 | [1] | PLUG | KOB |
| 40. | ZD12P02290 | [1] | O-RING | KOB |
| 41. | ZD85P02000 | [1] | RING | KOBBack-Up |
| 42. | ZD12P01100 | [24] | O-RING | KOB |
| 43. | ZD85P01800 | [1] | RING | KOBBack-Up |
| 44. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 45. | YT30V00039S080 | [2] | CHECK CONTROL | KOBPoppet |
| 46. | YT30V00039S081 | [2] | CAP | KOB |
| 47. | YT30V00039S082 | [2] | SPRING | KOB |
| 48. | ZD11P01000 | [2] | O-RING | KOB |
| 49. | ZD85P01000 | [4] | RING, SNAP | KOBSNAP RING Back-Up |
| 50. | 2436U1309S41 | [9] | CAP | KOB |
| 51. | YT30V00039S089 | [5] | PLUG | KOB |
| 52. | YT30V00039S090 | [1] | CHECK CONTROL | KOBValve |
| 54. | YT30V00039S093 | [1] | SPOOL | KOB |
| 55. | YT30V00039S094 | [1] | SPRING | KOB |
| 56. | YT30V00039S095 | [2] | SPACER | KOB |
| 57. | YT22V00012S004 | [2] | PLUG | KOB |
| 58. | YT30V00047S094 | [1] | SPOOL | KOB |
| . . | YT30V00039R100 | [1] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-61(1), 2-62(1), 2-63(1), 2-64(1), 2-65(1) |
| . . | YT30V00039R200 | [2] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-62(1), 2-63(1), 2-64(1), 2-66(1), 2-77(1) |
| . . | YT30V00039R400 | [1] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-61(1), 2-62(1), 2-63(1), 2-64(1), 2-67(1) |
| . . | YT30V00039R500 | [1] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-61(1), 2-62(1), 2-63(1), 2-64(1), 2-68(1) |
| . . | YT30V00039R700 | [1] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-62(1), 2-63(1), 2-64(1), 2-69(1), 2-77(1) |
| . . | YT30V00047R100 | [1] | SPOOL | KOBRepair Kit, Consists Of Items: 2-60(1), 2-61(1), 2-62(1), 2-63(1), 2-64(1), 2-87(1) |
| . . | YT30V00047R200 | [1] | SPOOL | KOBConsists Of Items: 2-60(1), 2-62(1), 2-63(1), 2-64(1), 2-77(1), 2-88(1) |
