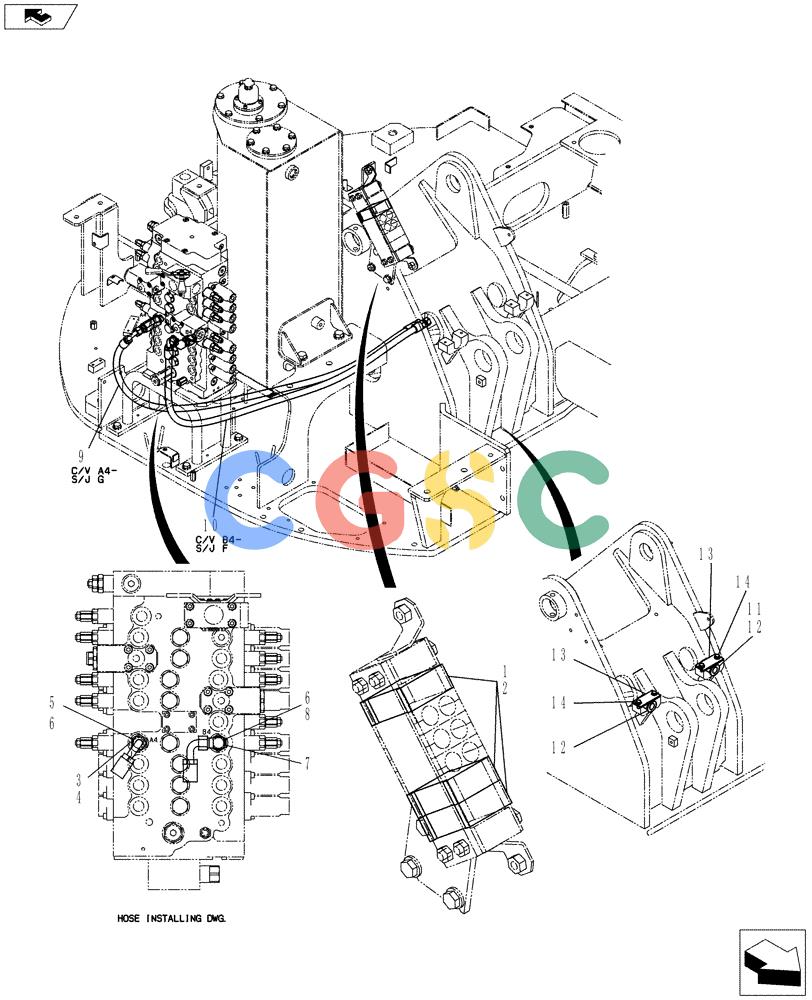

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-021[03]) - HYDRAULIC LINES, UPPER (NIBBLER & BREAKER + DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT03H00060F1 | [1] | Upp. | |
| 2. | YJ03H01036P1 | [3] | BUSHING | KOB |
| 3. | YT03H00061F1 | [1] | Upp. | |
| 4. | HH25R08006G4 | [1] | HYD CONNECTOR | KOB |
| 5. | ZA28F12006 | [1] | HYD CONNECTOR | KOB |
| 6. | ZD12P01400 | [2] | O-RING | KOB |
| 7. | 2444Z2449 | [1] | HYD CONNECTOR | KOB |
| 8. | ZA38F12006 | [1] | 90 ELBOW | KOB |
| 9. | YT03H01144D3 | [1] | HOSE ASSY. | KOB |
| 10. | YT03H01144D4 | [1] | HOSE ASSY. | KOB |
| 11. | YT03H00074F1 | [1] | Upp. | |
| 12. | YN03H01075P1 | [2] | BUSHING,21mm ID x 39mm OD x 50mm L | KOB |
| 13. | YT03H01112P1 | [2] | PLATE | KOB |
| 14. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOB |
