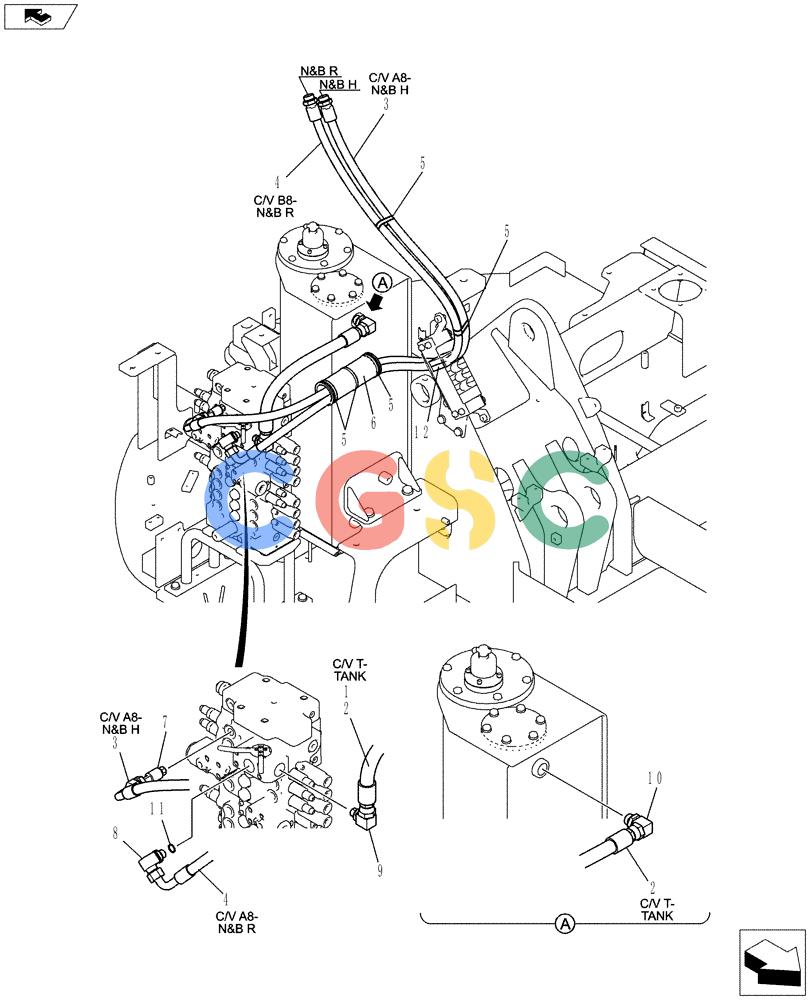

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-021[04]) - HYDRAULIC LINES, UPPER (NIBBLER & BREAKER + DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
274 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT03H00143F1 | [1] | Upp. | |
| 2. | ZX22M12054 | [1] | HOSE ASSY. | KOB Superseded by part number: ZX22M12055 |
| 3. | YT03H01170D5 | [1] | HOSE ASSY. | KOB |
| 4. | YT03H01169D6 | [1] | HOSE ASSY. | KOB |
| 5. | PY01P01043D8 | [5] | CABLE TIE,102mm L | KOB |
| 6. | YN64H01018P1 | [1] | GROMMET | KOB |
| 7. | YT03H01054P1 | [1] | CONNECTION | KOB |
| 8. | ZA38F18008 | [1] | HYD CONNECTOR | SMElbow |
| 9. | 2444R399D3 | [1] | ELBOW | KOB |
| 10. | ZH32X12000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90 |
| 11. | ZD12P01800 | [1] | O-RING | KOB |
| 12. | YT03H01127P1 | [1] | BUSHING | KOB |
