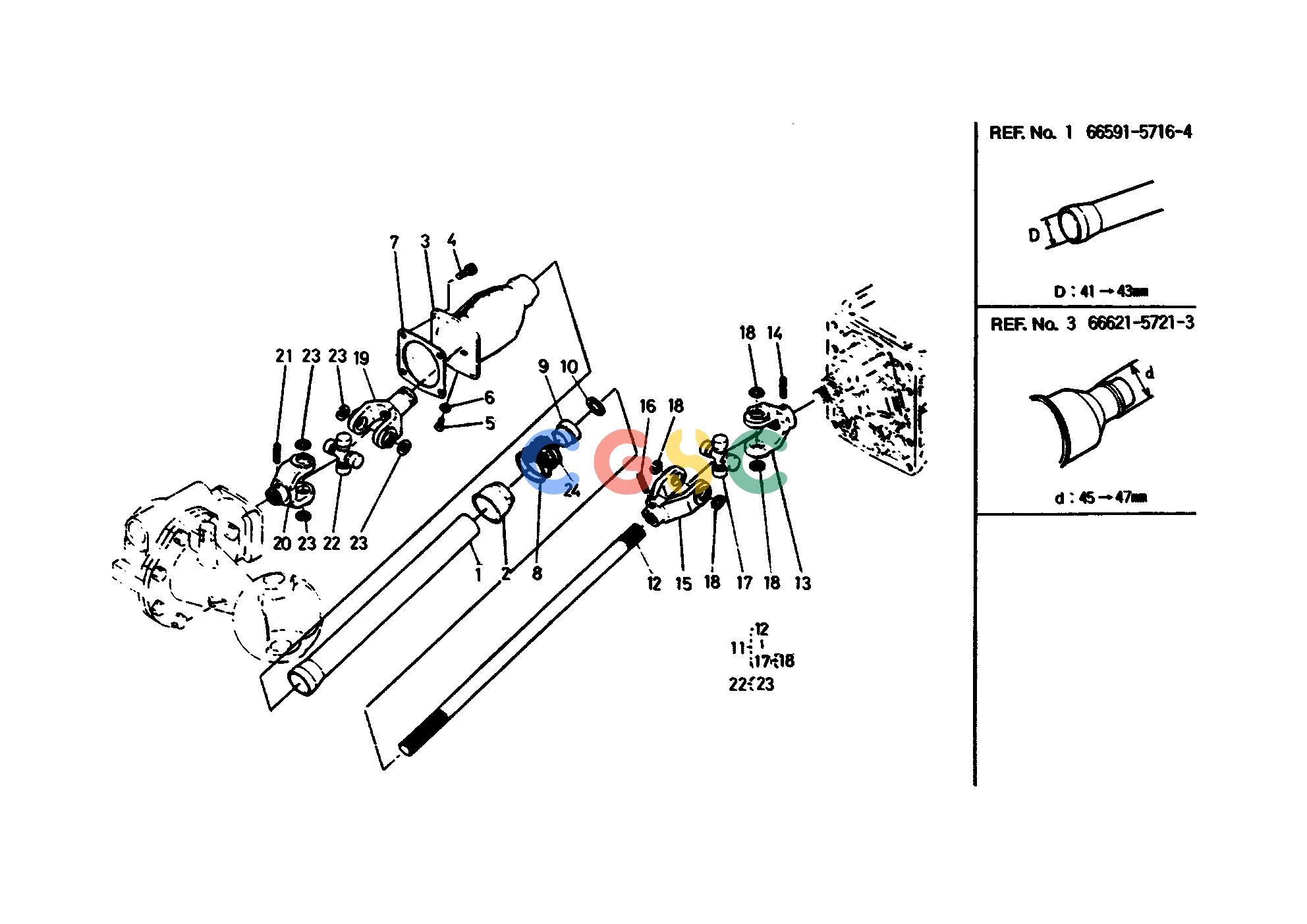

久保田零件查询T06000 DRIVE SHAFT GROUP [B5100D-P] FRONT AXLE/FRONT WHEELEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 318 次

Pos.	Part No	Qty	Parts name	Comments
001.	6659157160	[1]	PIPE	; <=16918 0.9438(lbs); 0.429
001.	6659157164	[1]	PIPE	; =>16919 0.9438(lbs); 0.429
002.	6659157170	[1]	PIPE	0.1012(lbs); 0.046
003.	6662157210	[1]	PIPE	; <=16918 1.1660(lbs); 0.530
003.	6662157213	[1]	CASE JOINT	; =>16919 1.1000(lbs); 0.500
004.	0112050825	[4]	BOLT	0.0000(lbs); 0.000
005.	0105050610	[1]	BOLT	0.0000(lbs); 0.000
006.	0471700600	[1]	WASHER SEAL	0.0022(lbs); 0.001
007.	6662157220	[1]	GASKET	0.0000(lbs); 0.000
008.	6659157190	[1]	BAND	0.0638(lbs); 0.029
009.	6659157120	[1]	BUSH	0.0308(lbs); 0.014
010.	0923020325	[1]	SEAL OIL	0.0154(lbs); 0.007
011.	6681157300	[1]	ASSY SHAFT DRIVER	REF.No.012 TO 018 4.0700(lbs); 1.850
012.	6659157110	[1]	SHAFT DRIVER	2.6290(lbs); 1.195
013.	6662157320	[1]	JOINT	0.5940(lbs); 0.270
014.	0541100430	[1]	PIN SPRING	0.0044(lbs); 0.002
015.	6659156410	[1]	JOINT	0.5544(lbs); 0.252
016.	0541100628	[1]	PIN SPRING	0.0132(lbs); 0.006
017.	6659156320	[1]	ASSY JOINT	REF.No.018 0.4070(lbs); 0.185
018.	0461100200	[4]	CIR-CLIP INTERNAL	0.0022(lbs); 0.001
019.	6659156340	[1]	JOINT	0.7260(lbs); 0.330
020.	6662157320	[1]	JOINT	0.5940(lbs); 0.270
021.	0541100430	[1]	PIN SPRING	0.0044(lbs); 0.002
022.	6659156320	[1]	ASSY JOINT	REF.No.023 0.4070(lbs); 0.185
023.	0461100200	[4]	CIR-CLIP INTERNAL	0.0022(lbs); 0.001
024.	6659157150	[1]	BAND 1	0.0000(lbs); 0.000
