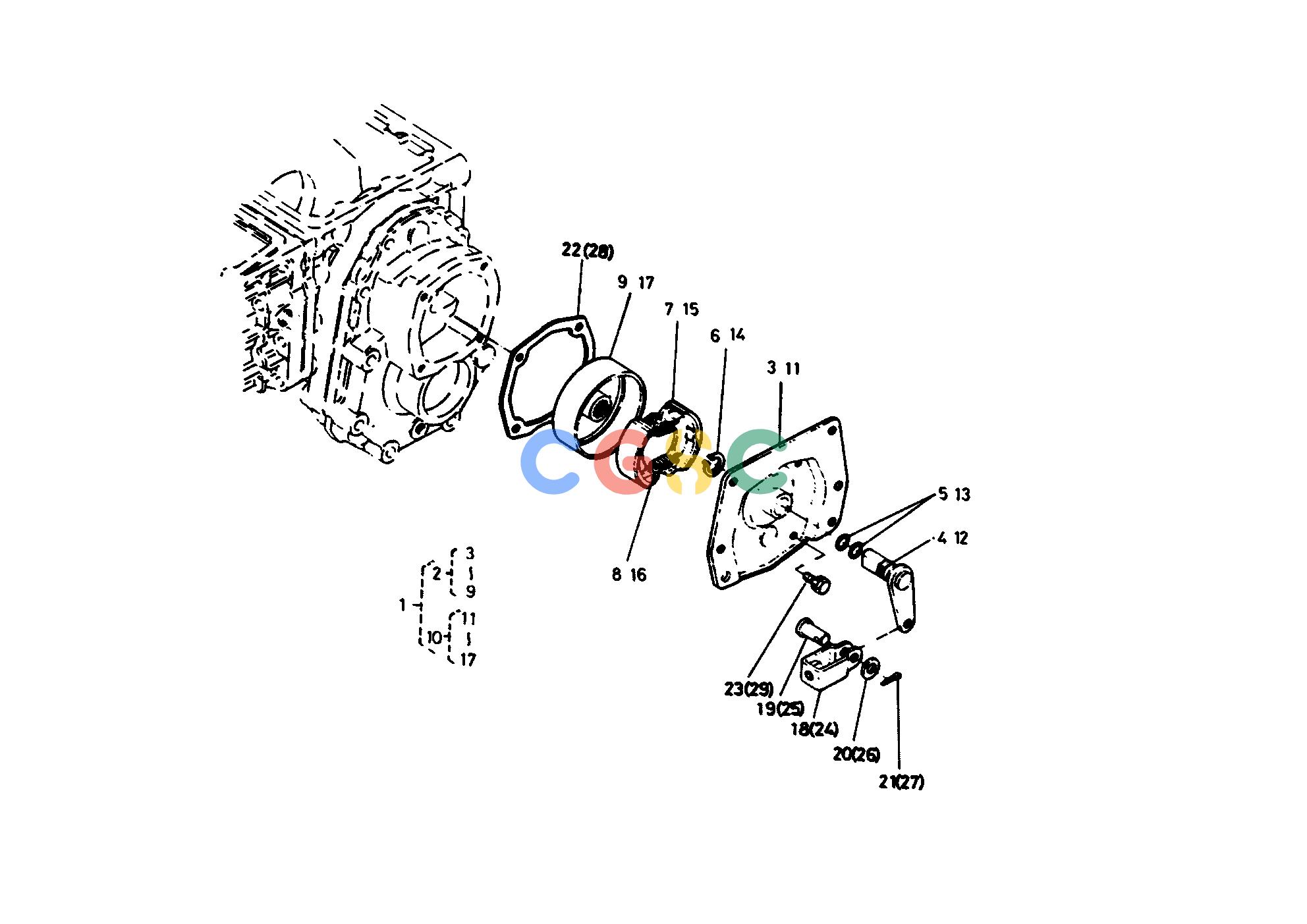

久保田零件查询T03600 BRAKE GROUP BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6681122100
|
[1] |
ASSY BRAKE
|
7.9200(lbs); 3.600
|
| 002. |
6681122200
|
[1] |
ASSY BRAKE LH
|
0.0000(lbs); 0.000
|
| 003. |
6681122310
|
[1] |
COVER BRAKE LH
|
1.6500(lbs); 0.750
|
| 004. |
6662122320
|
[1] |
CAM BRAKE LH
|
0.4510(lbs); 0.205
|
| 005. |
0481105170
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 006. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 007. |
6661122340
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 008. |
6659122350
|
[2] |
SPRING RETURN
|
0.0066(lbs); 0.003
|
| 009. |
6681122360
|
[1] |
DRUM BRAKE
|
1.9800(lbs); 0.900
|
| 010. |
6681122400
|
[1] |
ASSY BRAKE RH
|
0.0000(lbs); 0.000
|
| 011. |
6681122410
|
[1] |
COVER BRAKE RH
|
1.7556(lbs); 0.798
|
| 012. |
6662122420
|
[1] |
CAM BRAKE RH
|
0.4400(lbs); 0.200
|
| 013. |
0481105170
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 014. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 015. |
6661122340
|
[2] |
SHOE BRAKE
|
0.0000(lbs); 0.000
|
| 016. |
6659122350
|
[2] |
SPRING RETURN
|
0.0066(lbs); 0.003
|
| 017. |
6681122360
|
[1] |
DRUM BRAKE
|
1.9800(lbs); 0.900
|
| 018. |
6375342350
|
[1] |
METAL MAIN CLUTCH
|
0.0770(lbs); 0.035
|
| 019. |
0512250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 020. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 021. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 022. |
6662122380
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 023. |
0112050822
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 024. |
6375342350
|
[1] |
METAL MAIN CLUTCH
|
0.0770(lbs); 0.035
|
| 025. |
0512250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 026. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 027. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 028. |
6662122380
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 029. |
0112050822
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
