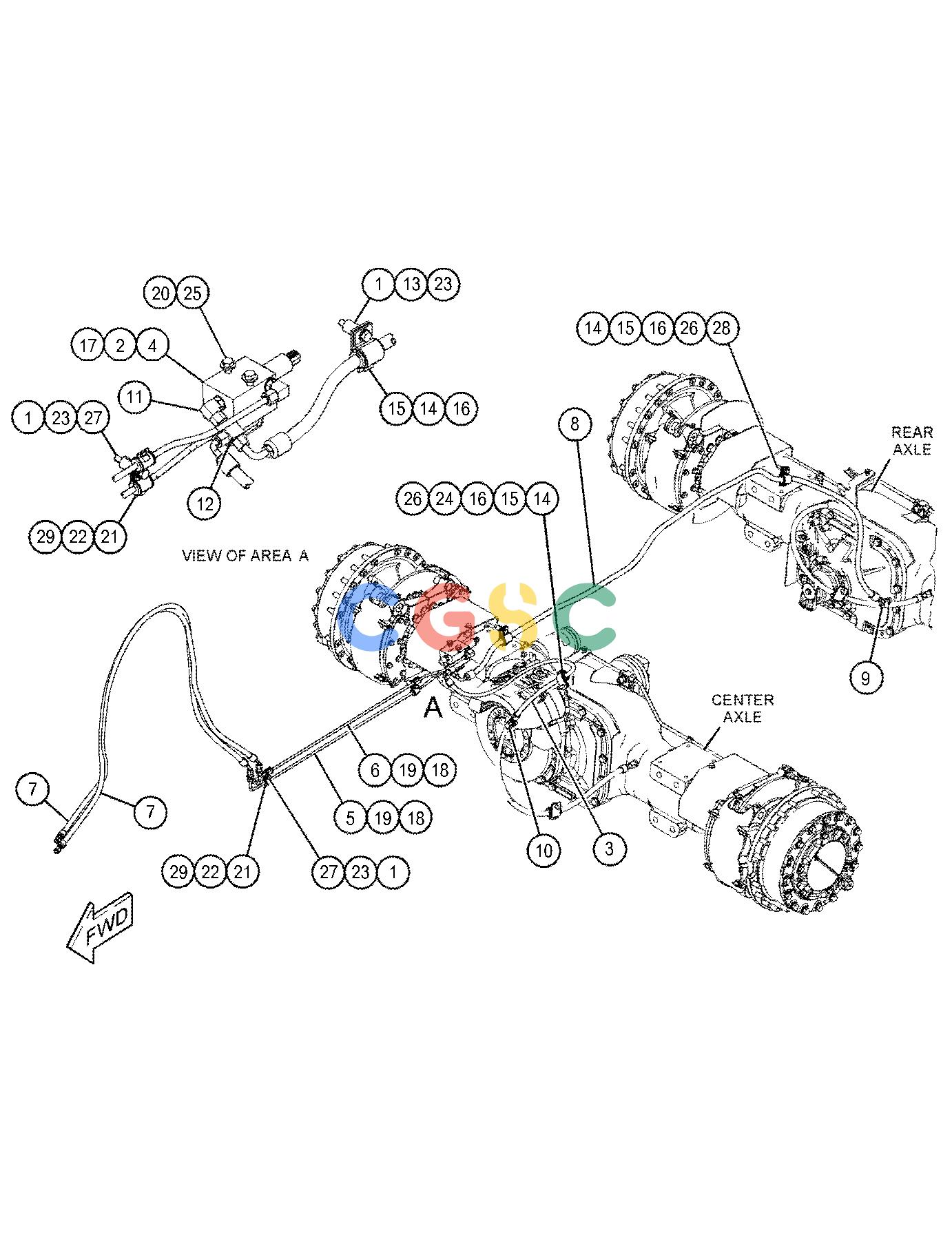

卡特零件查询（730C） 364-2916: CONTROL GP-DIFFERENTIAL LOCK
广数供应链运营团队, 15 02月, 2025，浏览：
566 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 217-5449 | [3] | SPACER(11X20X30-MM THK) | |
| 2. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 3. | 215-7635I | [1] | HOSE AS | |
| 4. | 432-1661 | [1] | VALVE & MTG GP-DIFF LOCK(DIFFERENTIAL LOCK) | |
| | 6E-5066 | [2] | SCREEN(HYDRAULIC) | |
| | 393-1012 | [1] | VALVE GP-SOLENOID(24-VDC)(DIFFERENTIAL LOCK) | |
| 5. | 435-8601 | [1] | TUBE AS | |
| 6. | 435-8602 | [1] | TUBE AS | |
| 7. | 447-0296I | [2] | HOSE AS | |
| 8. | 481-3011I | [1] | HOSE AS | |
| 9. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 10. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 11. | 148-8378 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 12. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 13. | 160-8742M | [1] | BOLT(M10X1.5X55-MM) | |
| 14. | 5P-7462 | [3] | CLIP(SLOT) | |
| 15. | 5P-7463 | [3] | CLIP(TAB) | |
| 16. | 6V-0683 | [3] | GROMMET | |
| 17. | 6V-0852 | [1] | CAP-DUST | |
| 18. | 6V-8397 | [2] | SEAL-O-RING | |
| 19. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 20. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-1887 | [4] | CLIP(SLOT) | |
| 22. | 8T-1888 | [4] | CLIP(TAB) | |
| 23. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 25. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 27. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 28. | 8T-4184M | [1] | BOLT(M12X1.75X45-MM) | |
| 29. | 8W-8909 | [4] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
