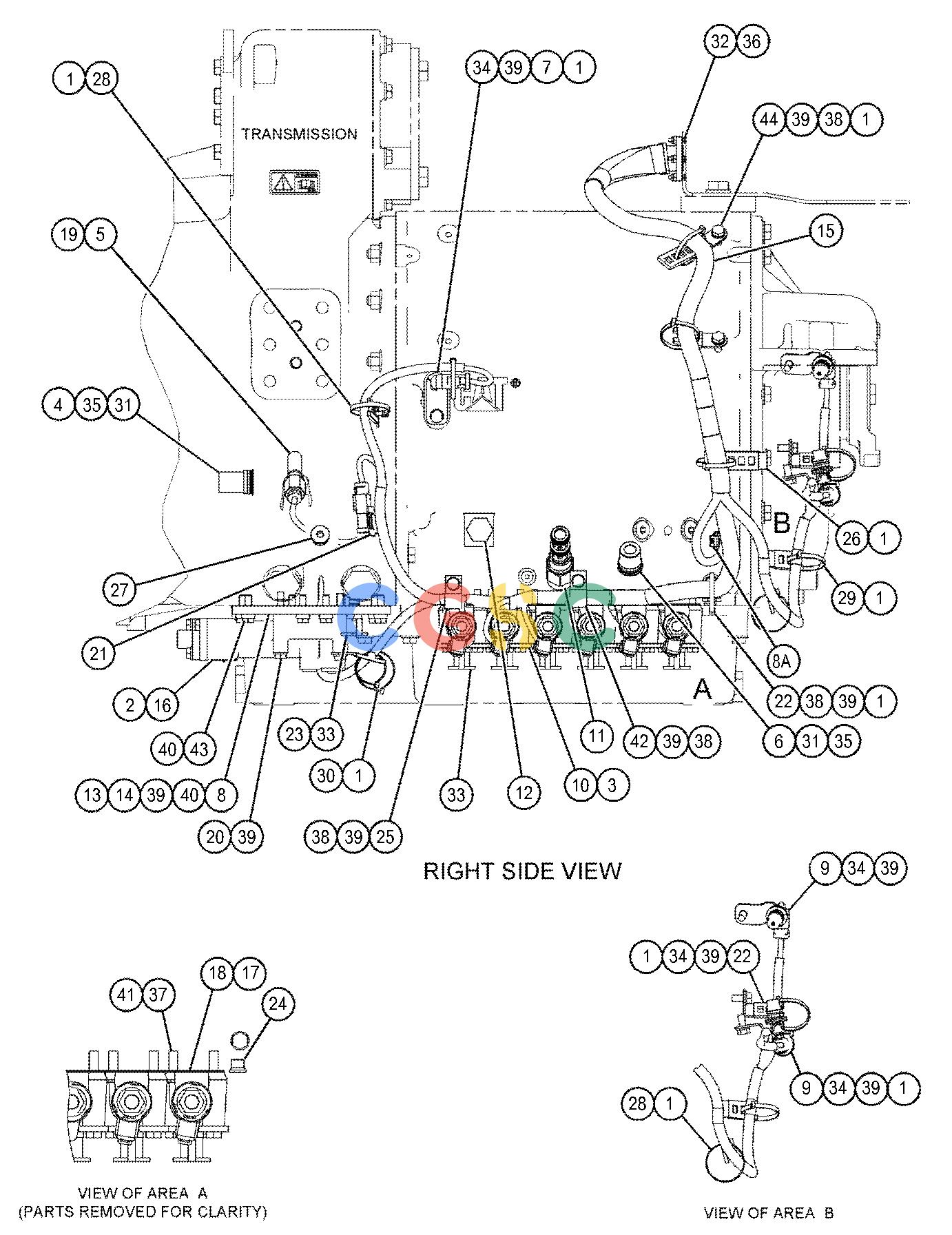

卡特零件查询（730C） 376-4483: CONTROL GP-TRANSMISSION HYD
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [12] | STRAP-CABLE | |
| 2. | 4F-4097 | [1] | SEAL-O-RING | |
| 3. | 6D-7889 | [6] | SEAL-O-RING | |
| 4. | 180-3178 | [1] | VALVE GP-RELIEF(TORQUE CONVERTER INLET) | |
| 5. | 196-1185 | [1] | SENSOR GP-SPEED(ENGINE) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(14-CM) | |
| | 171-5349 | [1] | STRAP-MARKER | |
| 6. | 197-4652 | [1] | VALVE-RELIEF(CLUTCH BACK PRESSURE) | |
| 7. | 214-2485 | [1] | SENSOR GP-SPEED(TORQUE CONVERTER OUTPUT) | |
| | 191-8304 | [1] | SENSOR GP-SPEED(TRANSMISSION OUTPUT, HIGH) | |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| | 228-4947 | [1] | SEAL-O-RING | |
| 8. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(TORQUE CONVERTER OIL) | |
| 8A. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(TRANSMISSION OIL) | |
| 9. | 236-6222 | [2] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | | | (EACH INCLUDES) |
| | 191-8305 | [1] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| | 228-4947 | [1] | SEAL-O-RING | |
| 10. | 244-3114Y | [6] | VALVE GP-MODULATING(24-VOLT)(TRANSMISSION CONTROL) | |
| 11. | 276-4166 | [1] | VALVE AS-FLOW CONTROL(FLOW DIVERTER, LUBRICATION) | |
| 12. | 294-2713 | [1] | CONNECTOR | |
| 13. | 371-0891 | [1] | PLATE-SEPARATOR | |
| 14. | 371-0892 | [1] | GASKET | |
| 15. | 376-4481Y | [1] | HARNESS AS-TRANSMISSION | |
| 16. | 383-0811Y | [1] | VALVE GP-RELIEF(OIL CONTROL) | |
| 17. | 393-0721 | [6] | GASKET | |
| 18. | 440-0172 | [6] | PLATE-ORIFICE | |
| 19. | 033-6028 | [1] | SEAL-O-RING | |
| 20. | 096-5866M | [4] | BOLT(M8X1.25X75-MM) | |
| 21. | 130-5301 | [1] | CLIP | |
| 22. | 132-5789 | [2] | CLIP(LADDER) | |
| 23. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 24. | 183-3409 | [1] | PLUG AS | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | 033-5853 | [1] | SEAL-O-RING | |
| 25. | 320-7691 | [1] | CLIP(LOOP) | |
| 26. | 352-3969 | [1] | CLIP(LADDER) | |
| 27. | 353-5126 | [1] | PLUG AS | |
| | 6V-6609 | [1] | SEAL-O-RING | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 28. | 4P-7428 | [2] | CLIP(LADDER) | |
| 29. | 4P-7429 | [1] | CLIP(LADDER) | |
| 30. | 4P-7581 | [3] | CLIP(LADDER) | |
| 31. | 5S-1522 | [2] | RING-SNAP | |
| 32. | 6D-5801 | [4] | LOCKNUT(8-32-THD) | |
| 33. | 6V-0852 | [7] | CAP-DUST | |
| 34. | 6V-5216M | [4] | BOLT(M8X1.25X18-MM) | |
| 35. | 6V-8352 | [2] | SEAL-O-RING | |
| 36. | 7U-4892 | [4] | SCREW(8-32X0.75-IN) | |
| 37. | 7X-0613 | [12] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 38. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 39. | 8T-4224 | [13] | WASHER-HARD(8.8X16X2-MM THK) | |
| 40. | 282-2628M | [12] | BOLT(M8X1.25X30-MM) | |
| 41. | 8T-6870M | [12] | BOLT(M8X1.25X70-MM) | |
| 42. | 9M-8406 | [1] | CLIP(LOOP) | |
| 43. | 198-4776 | [12] | WASHER-HARD(8.8X20X8-MM THK) | |
| 44. | 352-3964 | [1] | CLIP(LADDER) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
