纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR ASN YT06-18001 (01-050[02]) - CONTROLS, OPERATORS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
640 次

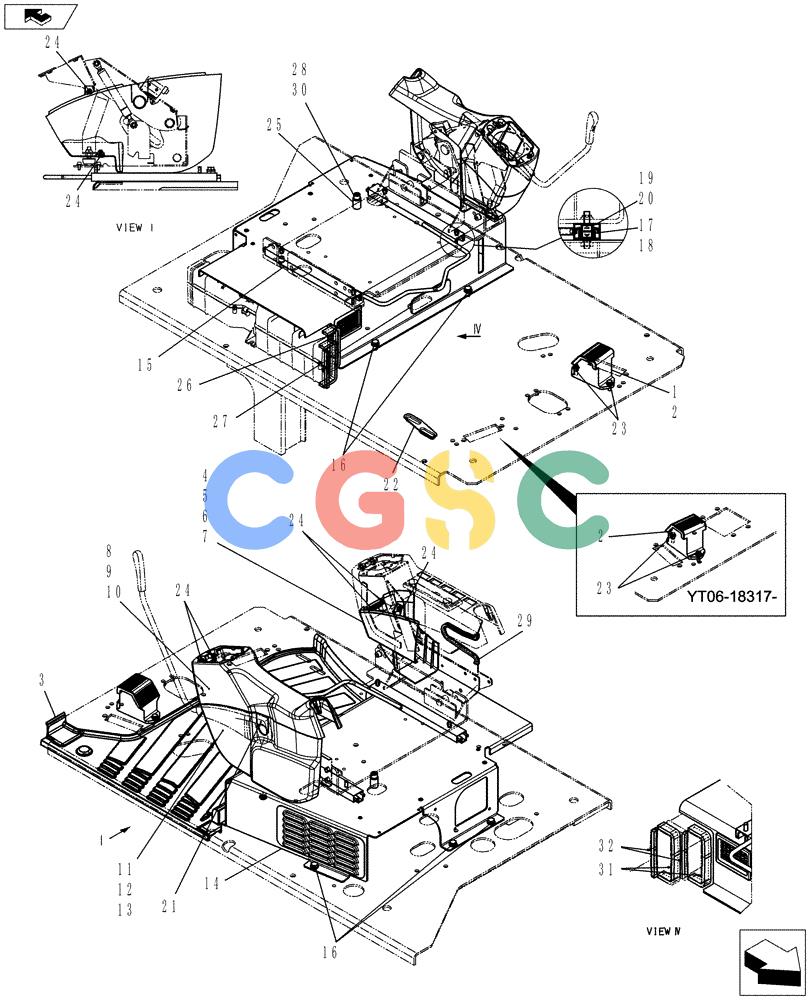

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY03M00265F1 | [1] | Operators, Start Serial: YT06-18317 | |
| 2. | YN03M01859P2 | [2] | SUPPORT | SM |
| 3. | YN26M00072P1 | [1] | CARPET | SMFloor |
| 4. | YN03M02109F1 | [1] | COVER | SMAssy. |
| 5. | YN03M02159P1 | [1] | COVER ASSY | KOB |
| 6. | YN03M02161P1 | [2] | NUT | KOB |
| 7. | YN17M01508P1 | [1] | BUSHING | KOB |
| 8. | YN03M02110F1 | [1] | COVER | SMAssy. Superseded by part number: YN03M02110F3 |
| 9. | YN03M02160P1 | [1] | COVER ASSY | KOB |
| 11. | YN03M02111F1 | [1] | COVER | SMAssy. Superseded by part number: YN03M02111F3 |
| 12. | YN03M02162P1 | [1] | COVER ASSY | KOB |
| 14. | YY25M01033P1 | [1] | SEAT BACK | KOBStand, Seat |
| 15. | YN25M01238F1 | [1] | CROSSRAIL | SM |
| 16. | ZM73C10020 | [5] | BOLT,M10x20mm - Course Thread | KOBSems |
| 17. | ZS28C08016 | [4] | SCREW,Hex Socket Head, M8 x 16mm | KOBCap |
| 18. | ZW26K08000 | [4] | LOCK WASHER | KOB |
| 19. | ZW16P08000 | [4] | WASHER | KOB |
| 20. | ZS28C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOBCap |
| 21. | YN03M02112P1 | [1] | COVER | SM, Serial Range: YT06-18317-YT06-18441 |
| 21. | YN03M02163P1 | [1] | COVER ASSY | KOB, Start Serial: YT06-18442 |
| 22. | YN03M02085P2 | [1] | GROMMET | KOB |
| 23. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBSems |
| 24. | ZM66C06016 | [8] | BOLT | KOBSems |
| 25. | YY03M01308P1 | [1] | PIPE | KOB |
| 26. | YN20M01356P1 | [1] | DIFFUSER | KOBGrill |
| 27. | YT03M01222P1 | [1] | GROMMET | KOB |
| 28. | ZS28C12050 | [1] | CAPSCREW,Hex Socket Head, M12 x 50mm | KOBSCREW Cap |
| 29. | YT02C01515D7 | [1] | GASKET | SMTrim |
| 30. | ZW16K12000 | [1] | WASHER | KOB |
| 31. | YY20M01288P1 | [2] | INSULATION | KOB, Start Serial: YT06-18442 |
| 32. | YY20M01289P1 | [2] | INSULATION | KOB, Start Serial: YT06-18442 |
