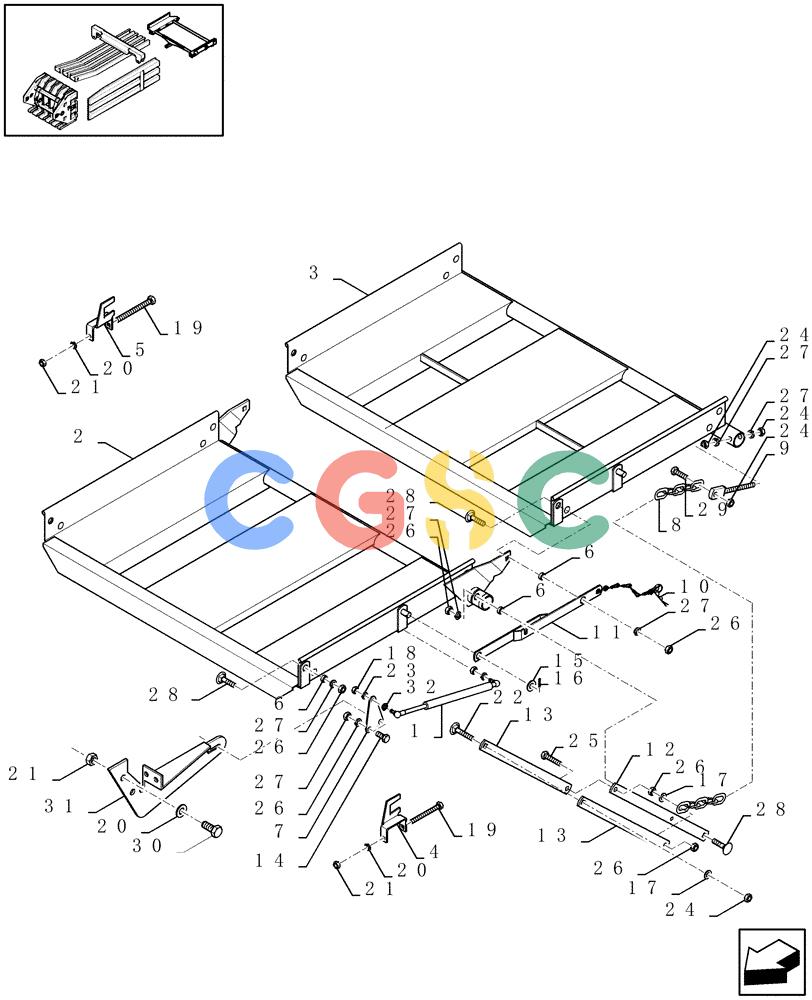

凯斯零件查询(LBX331S) - BIG RECTANGULAR BALER (6/01-12/03) (14.05[01]) - PLATE BALE CHUTE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84320972
|
[2] |
SHOCK ABSORBER
|
ZED
|
| 2. |
84400063
|
[1] |
EXTENSION
|
ZED
|
| 2. |
84400062
|
[1] |
CHUTE
|
ZED
|
| 3. |
84607217
|
[1] |
EXTENSION
|
ZED
|
| 3. |
84607215
|
[1] |
EXTENSION
|
ZED
|
| 4. |
84074166
|
[1] |
SUPPORT
|
ZED
|
| 5. |
84074168
|
[1] |
SUPPORT
|
ZED
|
| 6. |
80376291
|
[6] |
RING
|
ZED
Superseded by part number: 376291
|
| 7. |
84320970
|
[1] |
SUPPORT
|
ZED
|
| 8. |
84074170
|
[2] |
CHAIN,1505mm L
|
ZED
|
| 9. |
89512549
|
[2] |
ROD
|
ZED
Superseded by part number: 9512549
|
| 10. |
80180043
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 180043
|
| 11. |
84320651
|
[1] |
SUPPORT
|
ZED
|
| 12. |
84074054
|
[2] |
SUPPORT
|
ZED
|
| 13. |
84074051
|
[4] |
SUPPORT
|
ZED
|
| 14. |
80043167
|
[2] |
SCREW
|
ZED
M16x30 Superseded by part number: 43167
|
| 15. |
80378248
|
[1] |
WASHER
|
ZED
25MM Superseded by part number: 378248
|
| 16. |
80380743
|
[1] |
PIN
|
ZED
Superseded by part number: 380743
|
| 17. |
80378246
|
[4] |
WASHER
|
ZED
16MM Superseded by part number: 378246
|
| 19. |
80309308
|
[2] |
SCREW
|
ZED
M12x120 Superseded by part number: 309308
|
| 20. |
80140046
|
[1] |
WASHER
|
ZED
12MM Superseded by part number: 140046
|
| 21. |
89706685
|
[1] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 22. |
80120046
|
[2] |
BOLT
|
ZED
M16x60 Superseded by part number: 87552612
|
| 23. |
80322358
|
[4] |
LOCK WASHER
|
ZED
Superseded by part number: 322358
|
| 24. |
832-46416
|
[6] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 25. |
80320246
|
[2] |
BOLT
|
ZED
M16x70 Superseded by part number: 320246
|
| 26. |
100020
|
[14] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 27. |
80140048
|
[12] |
WASHER
|
ZED
16MM Superseded by part number: 140048
|
| 28. |
89838060
|
[6] |
SCREW
|
ZED
M16x40 Superseded by part number: 86595832
|
| 29. |
80120090
|
[2] |
SCREW
|
ZED
Superseded by part number: 120090
|
| 30. |
89706687
|
[4] |
SCREW
|
ZED
M12x30 Superseded by part number: 9706687
|
| 31. |
84429978
|
[1] |
SUPPORT
|
ZED
|
| 32. |
86511315
|
[4] |
WASHER,8.4mm ID x 16mm OD x 1.8mm Thk
|
NH
Superseded by part number: 86624184
|
| 18. |
89706690
|
[4] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
