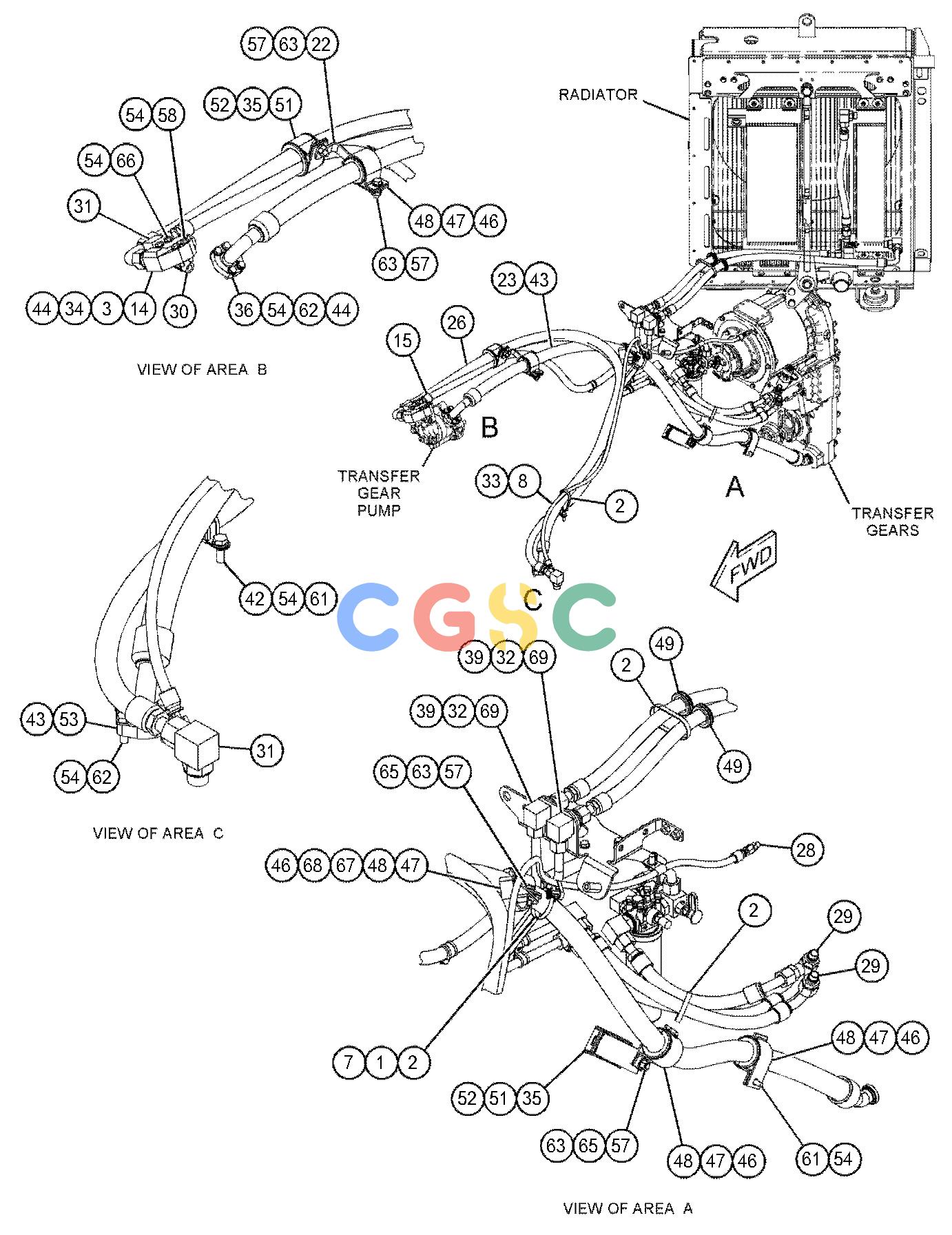

卡特零件查询（730C） 364-4080: LINES GP-POWER TRAIN OIL
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 6U-0456 | [7] | STRAP | |
| 3. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 4. | 150-4046 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 5. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 6. | 185-8833 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 129-2327 | [1] | ELBOW | |
| 7. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 8. | 306-9589I | [1] | HOSE AS | |
| 9. | 360-5604 | [1] | VALVE AS-CONTROL(HYDRAULIC OIL TEMP)(HYDRAULIC OIL) | |
| | 238-5085 | [1] | SEAL-O-RING | |
| 10. | 369-1487 | [1] | SWITCH AS-PRESSURE(POWER TRAIN OIL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 11. | 384-5767I | [1] | HOSE AS | |
| 12. | 384-5768I | [1] | HOSE AS | |
| 13. | 384-5774I | [1] | HOSE AS | |
| 14. | 384-5850 | [1] | MANIFOLD | |
| 15. | 387-9425I | [1] | HOSE AS | |
| 16. | 393-5451I | [1] | HOSE AS | |
| 17. | 393-5455I | [1] | HOSE AS | |
| 18. | 422-3863Y | [1] | FILTER GP-OIL(POWER TRAIN)(POWER TRAIN) | |
| 19. | 433-5391I | [1] | HOSE AS | |
| 20. | 434-0562I | [1] | HOSE AS | |
| 21. | 444-6987 | [1] | BRACKET AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8Y-3795M | [1] | BOSS(M10X1.5X39-MM) | |
| 22. | 451-5542 | [1] | BRACKET AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 23. | 444-7464I | [1] | HOSE AS | |
| 24. | 447-0957 | [1] | TUBE AS | |
| 25. | 447-0958 | [1] | TUBE AS | |
| 26. | 448-0762I | [1] | HOSE AS | |
| 27. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 28. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 29. | 148-8324 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 30. | 148-8327 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 31. | 148-8347 | [6] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 32. | 148-8376 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 33. | 150-3033 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 34. | 155-7321 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 35. | 193-2120 | [2] | GROMMET | |
| 36. | 1P-4578 | [2] | FLANGE-HALF | |
| 37. | 228-7092 | [2] | SEAL-O-RING | |
| 38. | 268-1621 | [1] | FITTING AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 124-1212 | [1] | FITTING | |
| 39. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 40. | 3J-1907 | [1] | SEAL-O-RING | |
| 41. | 3U-2754 | [2] | CLIP(LOOP) | |
| 42. | 3U-2755 | [3] | CLIP(LOOP) | |
| 43. | 4J-0520 | [2] | SEAL-O-RING | |
| 44. | 4J-0522 | [2] | SEAL-O-RING | |
| 45. | 5K-3294 | [1] | CLIP | |
| 46. | 5P-7470 | [4] | CLIP(SLOT) | |
| 47. | 5P-7471 | [4] | CLIP(TAB) | |
| 48. | 5P-8182 | [4] | GROMMET(46-MM ID) | |
| 49. | 6P-0699 | [2] | GROMMET | |
| 50. | 6V-0852 | [1] | CAP-DUST | |
| 51. | 6V-1867 | [2] | CLIP(SLOT) | |
| 52. | 6V-1868 | [2] | CLIP(TAB) | |
| 53. | 8C-3206 | [2] | FLANGE-HALF | |
| 54. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 55. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 56. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 57. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 58. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 59. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 60. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 61. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 62. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 63. | 8T-4223 | [7] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 64. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 65. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 66. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 67. | 9D-6196 | [1] | CLIP(SLOT) | |
| 68. | 9D-6197 | [1] | CLIP(TAB) | |
| 69. | 453-1667 | [4] | SPACER(31.5X56X5-MM THK) | |
| 70. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
