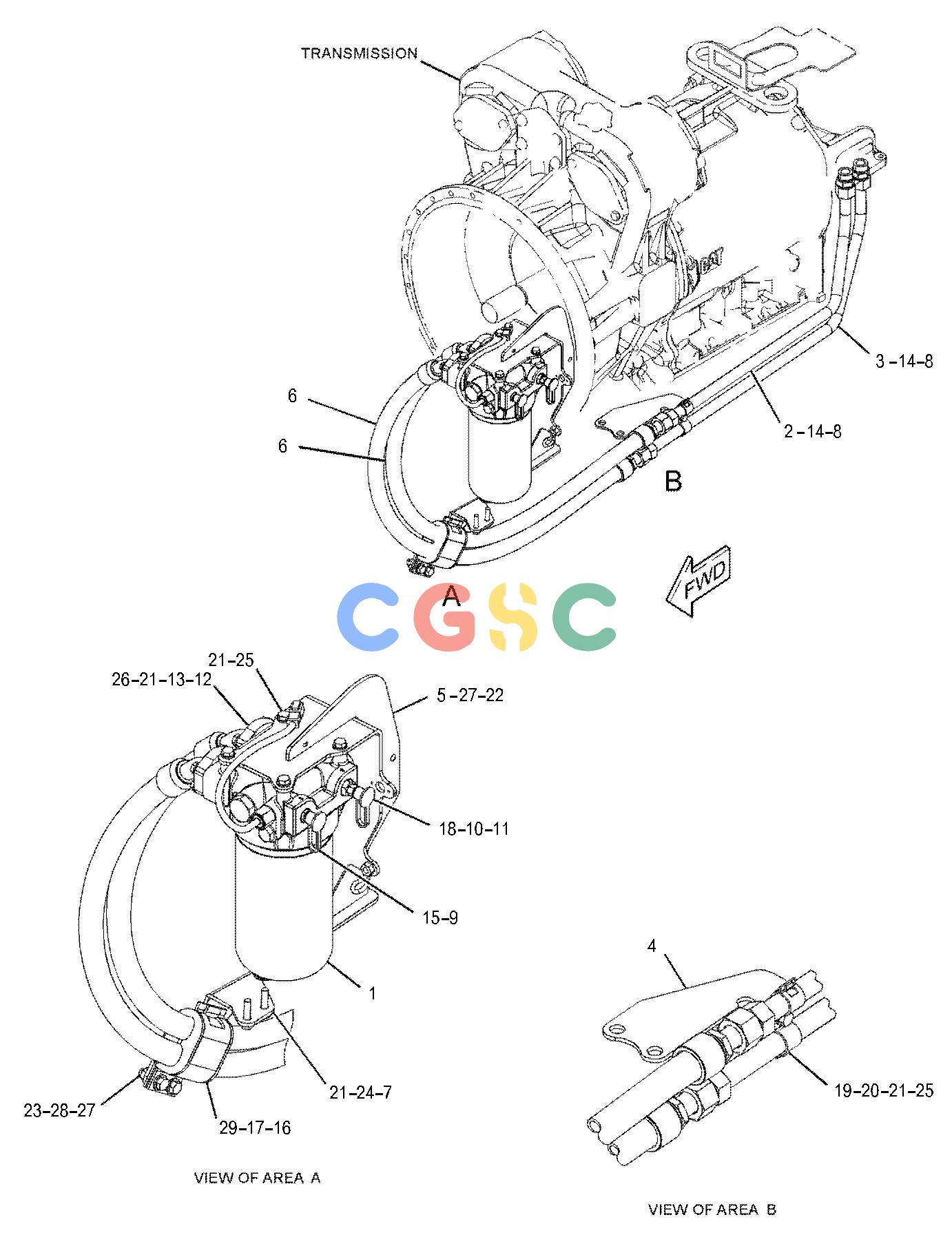

卡特零件查询（730C） 364-4082: LINES GP-TRANSMISSION OIL
广数供应链运营团队, 15 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 346-5571Y | [1] | FILTER GP-OIL(HYDRAULIC, TRANSMISSION)(POWER TRAIN) | |
| 2. | 393-4652 | [1] | TUBE AS | |
| 3. | 393-4653 | [1] | TUBE AS | |
| 4. | 393-5015 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 5. | 460-7025 | [1] | BRACKET AS | |
| | 7T-1099 | [2] | LINK | |
| | 159-9541M | [1] | NUT-WELD(M10X1.5-THD) | |
| 6. | 394-4515I | [2] | HOSE AS | |
| 7. | 432-5920 | [1] | PLATE | |
| 8. | 148-8335 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | | SEAL-O-RING | |
| 9. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 10. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(ENGINE OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING(COOLANT) | |
| 11. | 169-7397 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 3P-1932 | [1] | ADAPTER | |
| 12. | 1P-4578 | [4] | FLANGE-HALF | |
| 13. | 4J-0522 | [2] | SEAL-O-RING | |
| 14. | 5K-9090 | [2] | SEAL-O-RING | |
| 15. | 6V-0852 | [1] | CAP-DUST | |
| 16. | 7G-5984 | [1] | CLIP(TAB) | |
| 17. | 7G-5985 | [1] | CLIP(SLOT) | |
| 18. | 8C-3447 | [1] | CAP-DUST | |
| 19. | 8T-1889 | [2] | CLIP(SLOT) | |
| 20. | 8T-1890 | [2] | CLIP(TAB) | |
| 21. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 23. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 24. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 25. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 27. | 8T-4223 | [7] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 29. | 8T-7088 | [1] | GROMMET | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
