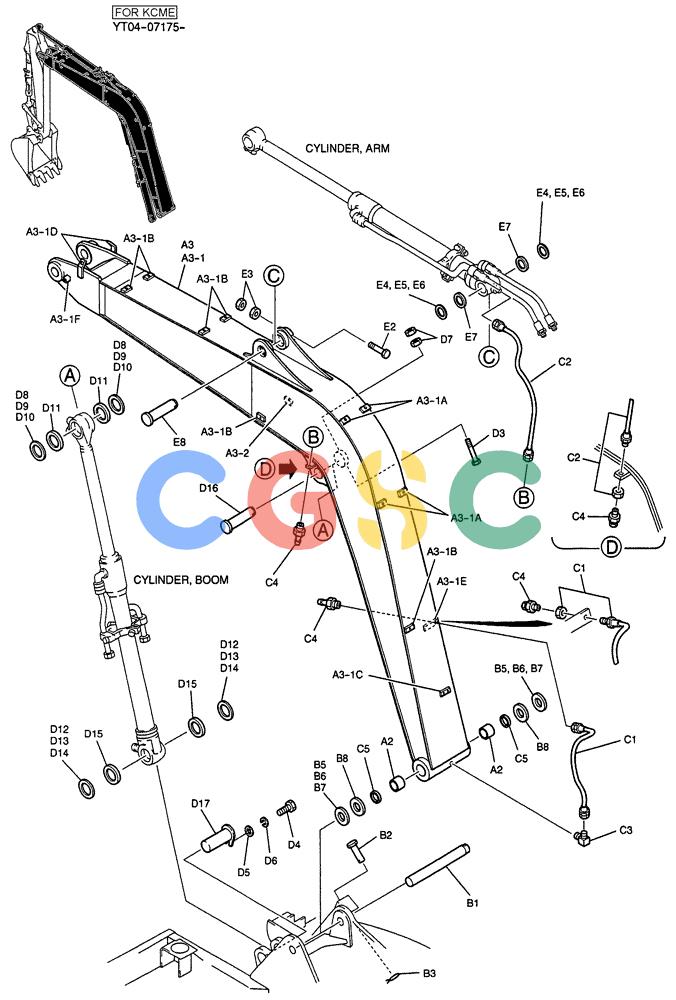

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (03-001) - BOOM ASSY, STD 3.72M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
730 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00063F3 | [1] | ARM | KOBBOOM ASSY |
| A3. | NSS | [1] | NOT SERVICED SEPARATELY | CONBOOM, HOE |
| A3-1A. | HY35B10032G1 | [4] | BLOCK | KOBTAPPED |
| A3-1B. | 2416T9878 | [6] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTAPPED |
| A3-1C. | YT02B01059P1 | [1] | BLOCK | KOBTAPPED |
| A3-1D. | LF02B01028P1 | [2] | BRACKET | KOB |
| A3-1E. | YT02B01022P1 | [1] | PLATE | KOB |
| A3-1F. | YT02B01015P1 | [1] | BLOCK | KOBTAPPED |
| A2. | LE02B01008P1 | [2] | BUSHING | KOB |
| . . | YT02B00003F1 | [1] | BOOM INSTAL | |
| B1. | YT02B01014P1 | [1] | PIN | KOB |
| B2. | LE02B01026P2 | [1] | PIN | KOB |
| B3. | 2419R9D4 | [1] | COTTER PIN | KOBSNAP |
| B5. | YR02B01266D3 | [2] | SHIM | KOB(0.5) |
| B6. | YR02B01266D1 | [2] | SHIM | KOB(0.9) |
| B7. | YR02B01266D2 | [2] | SHIM | KOB(1.2) |
| B8. | YR02B01265P1 | [2] | SHIM | KOB(2.0) |
| . . | YT02B00004F1 | [1] | ARM | KOBBOOM GROUP |
| C1. | 2444R1117D070 | [1] | HOSE,6.40mm ID x 700mm L | KOB |
| C2. | 2444R1117D095 | [1] | HOSE,6.4mm ID x 950mm L | KOB |
| C3. | ZH32Z04002 | [1] | ELBOW | KOB |
| C4. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| C5. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDUST |
| . . | YT02B00005F2 | [1] | CYLINDER INSTAL | |
| D3. | HS18C12125G2 | [1] | SCREW | KOBCAP |
| D4. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap |
| D5. | 2418T21137 | [1] | WASHER | KOB |
| D6. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| D7. | ZN18C12010 | [2] | NUT | KOB |
| D8. | YT02B01008D1 | [1] | SHIM | KOB(0.5) |
| D9. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOB(0.9) |
| D10. | YT02B01008D2 | [1] | SHIM | KOB(1.2) |
| D11. | YR02B01262P1 | [2] | SHIM | KOB(2.0) |
| D12. | B16T0442D82 | [1] | SHIM,120mm OD x 77mm ID x 0.5mm Thk | KOB(0.5) |
| D13. | B16T0442D81 | [1] | SHIM,120mm OD x 77mm ID x 0.9mm Thk | KOB(0.9) |
| D14. | B16T0442D80 | [1] | SHIM,120mm OD x 77mm ID x 1.2mm Thk | KOB(1.2) |
| D15. | YR02B01261P1 | [2] | SHIM,2mm Thk | KOB(2.0) |
| D16. | YT02B01026P1 | [1] | PIN | KOB |
| D17. | YT02B01027P1 | [1] | PIN | KOB |
| . . | YT02B00006F2 | [1] | CYLINDER INSTAL | |
| E2. | HS18C12115G2 | [1] | SCREW,M12 x 115mm, Cl 10.9 | KOBCAP |
| E4. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| E5. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| E6. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB(1.2) |
| E7. | PY02B01028P1 | [2] | SHIM,2.0mm Thk | KOB |
| E8. | YT02B01025P1 | [1] | PIN | KOB |
